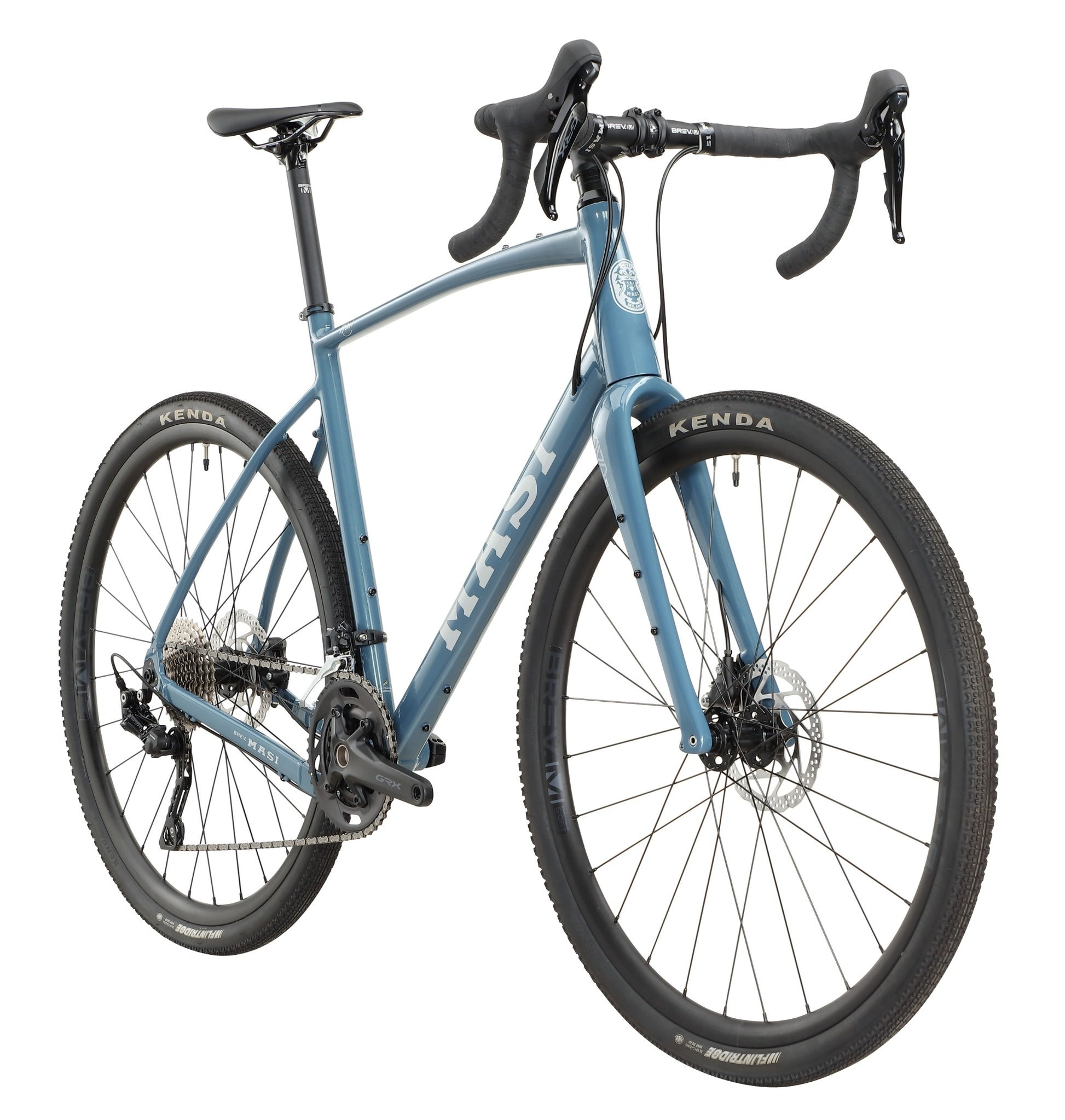

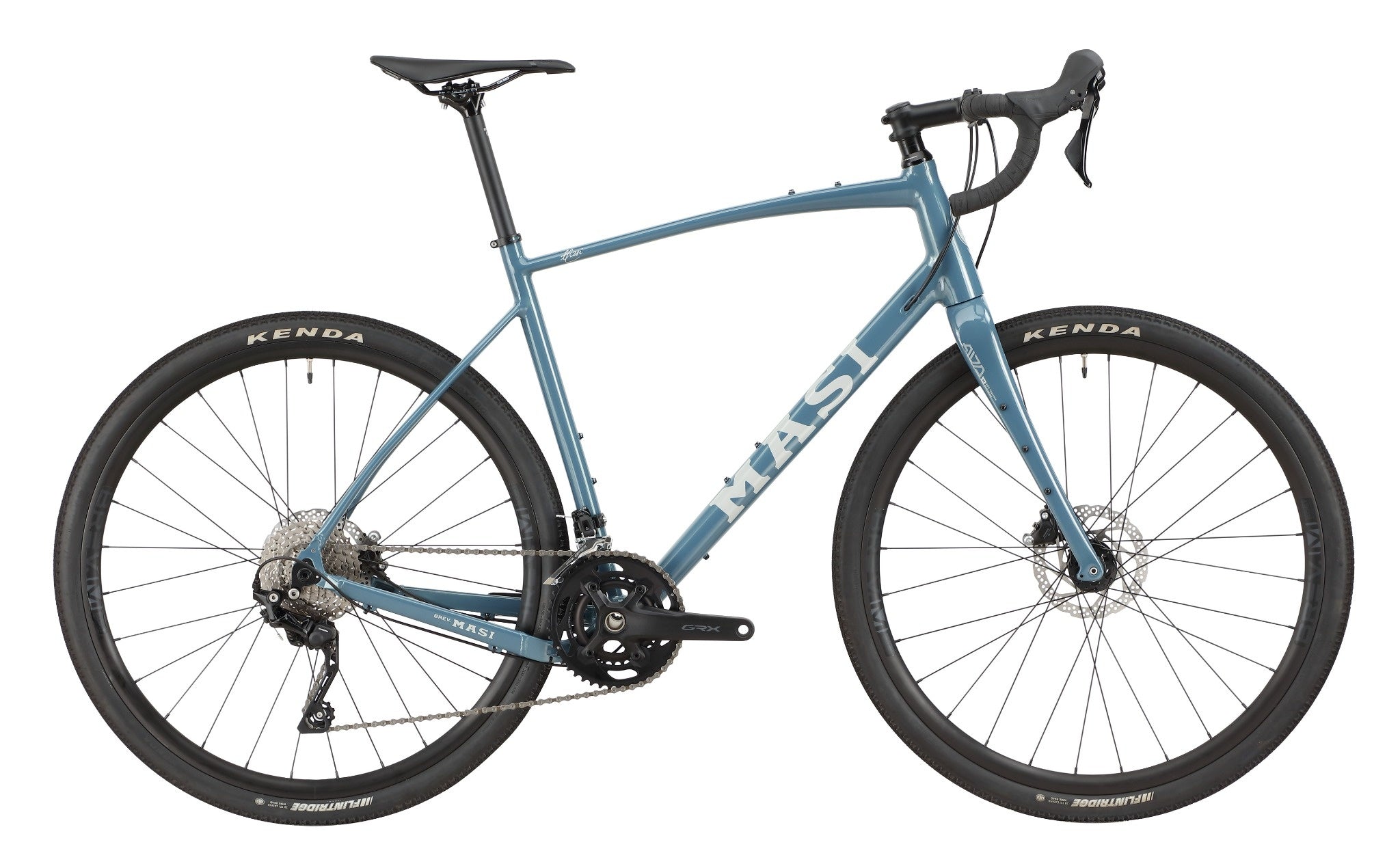

  • Front view of the blue BRUNELLO 1 gravel bike with black handlebars and tires.

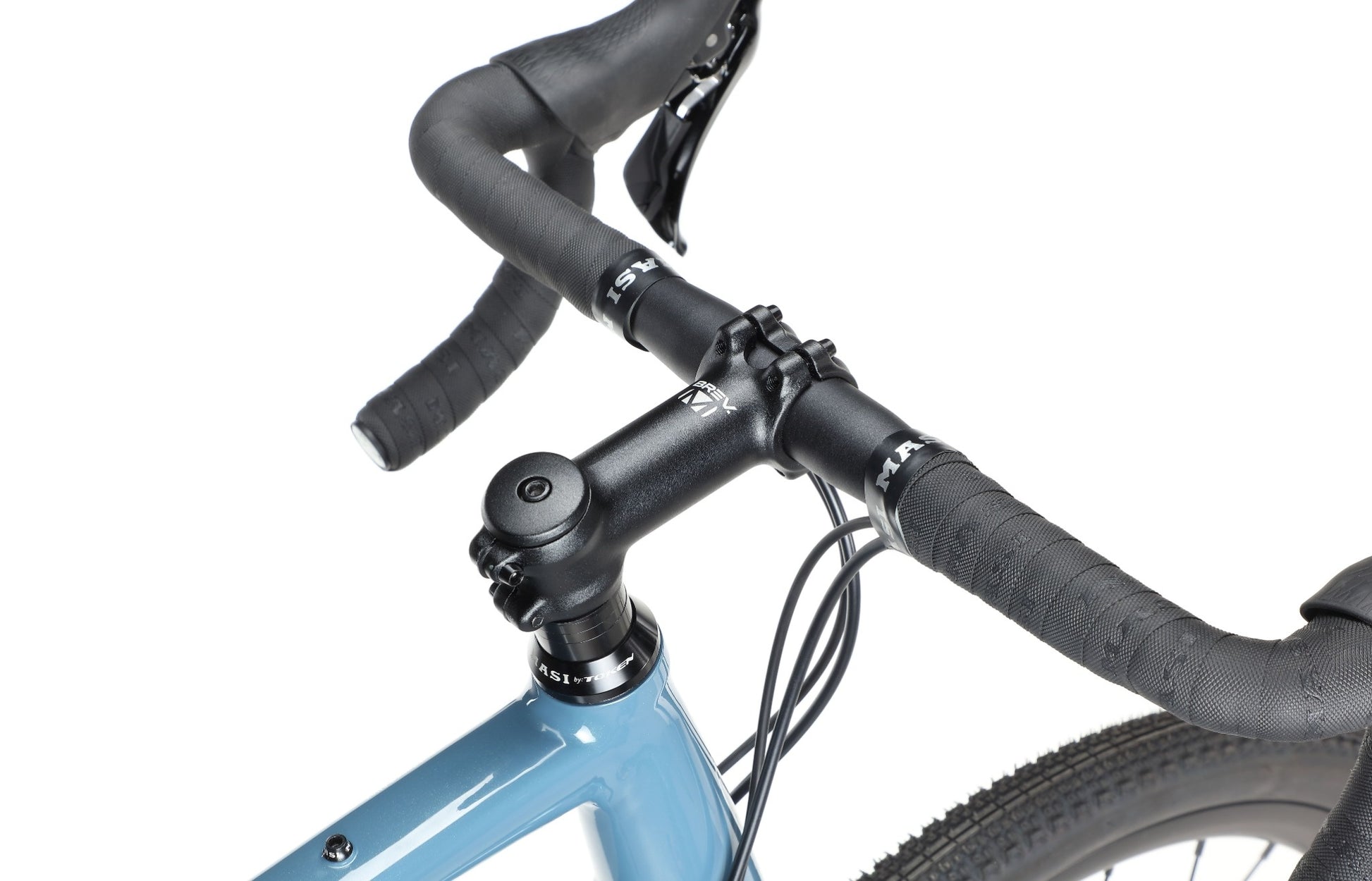

  • Close-up of BRUNELLO 1s blue handlebars and black stem, highlighting the wrapped grips and brake levers against a white background.

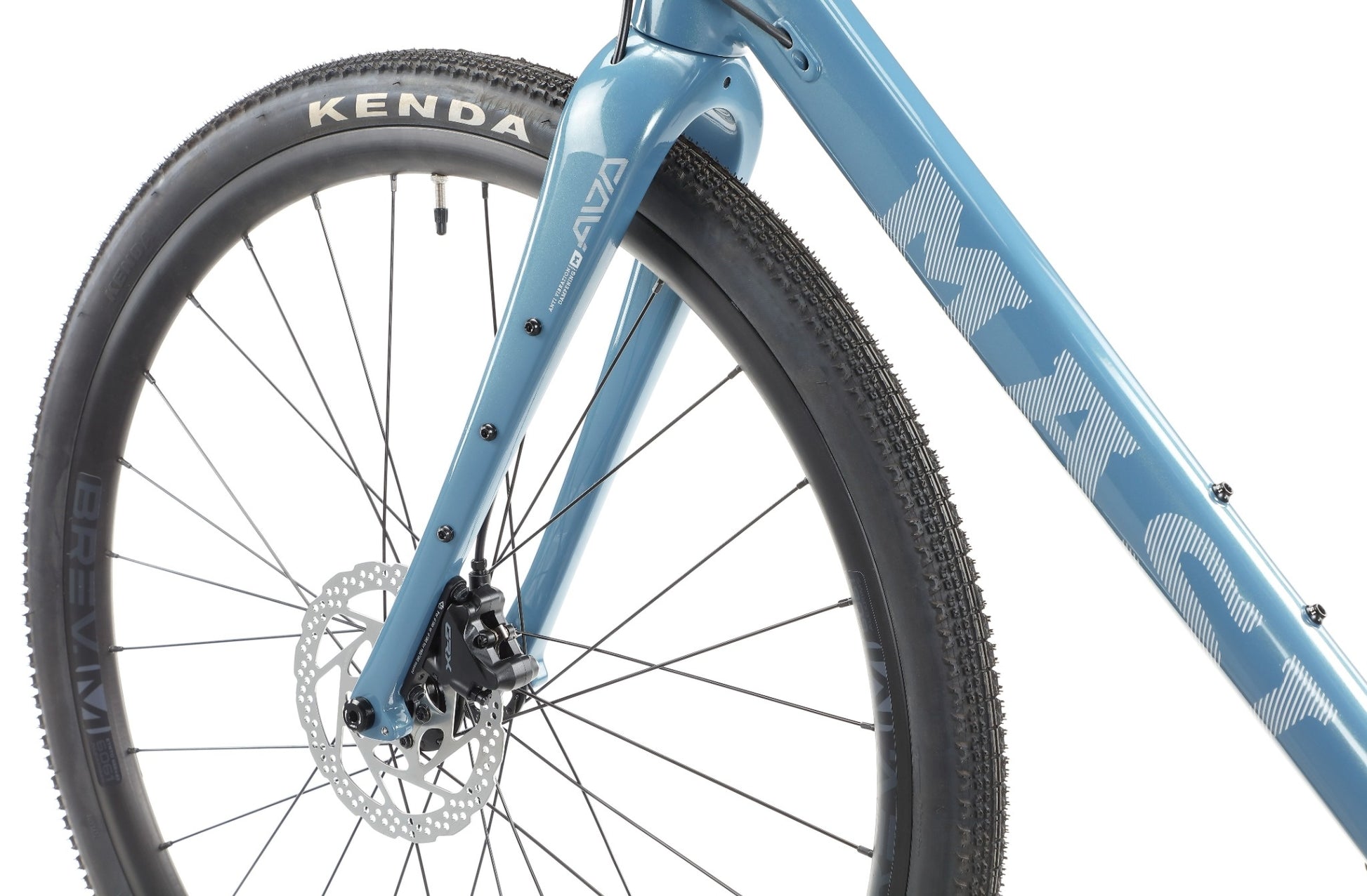

  • Close-up of a BRUNELLO 1 blue bicycle front wheel with Kenda tires, disc brake, Masi on the frame, and visible spokes.

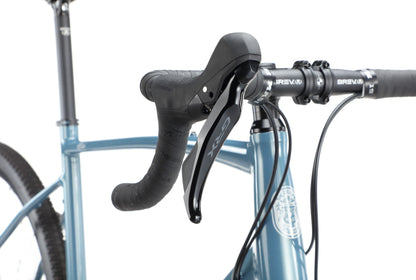

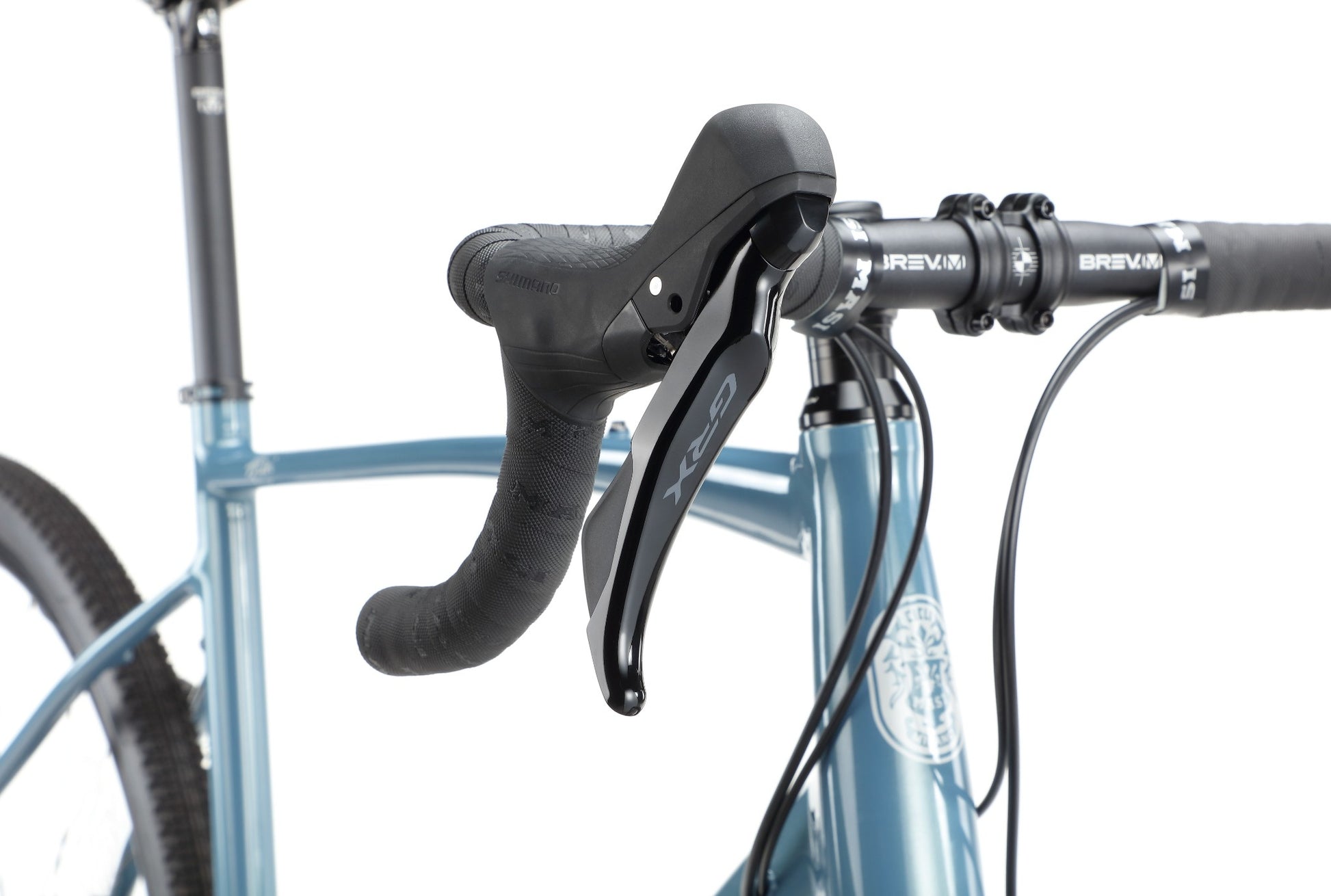

  • Close-up of BRUNELLO 1s blue handlebars and gear shifter with black grips on a white background.

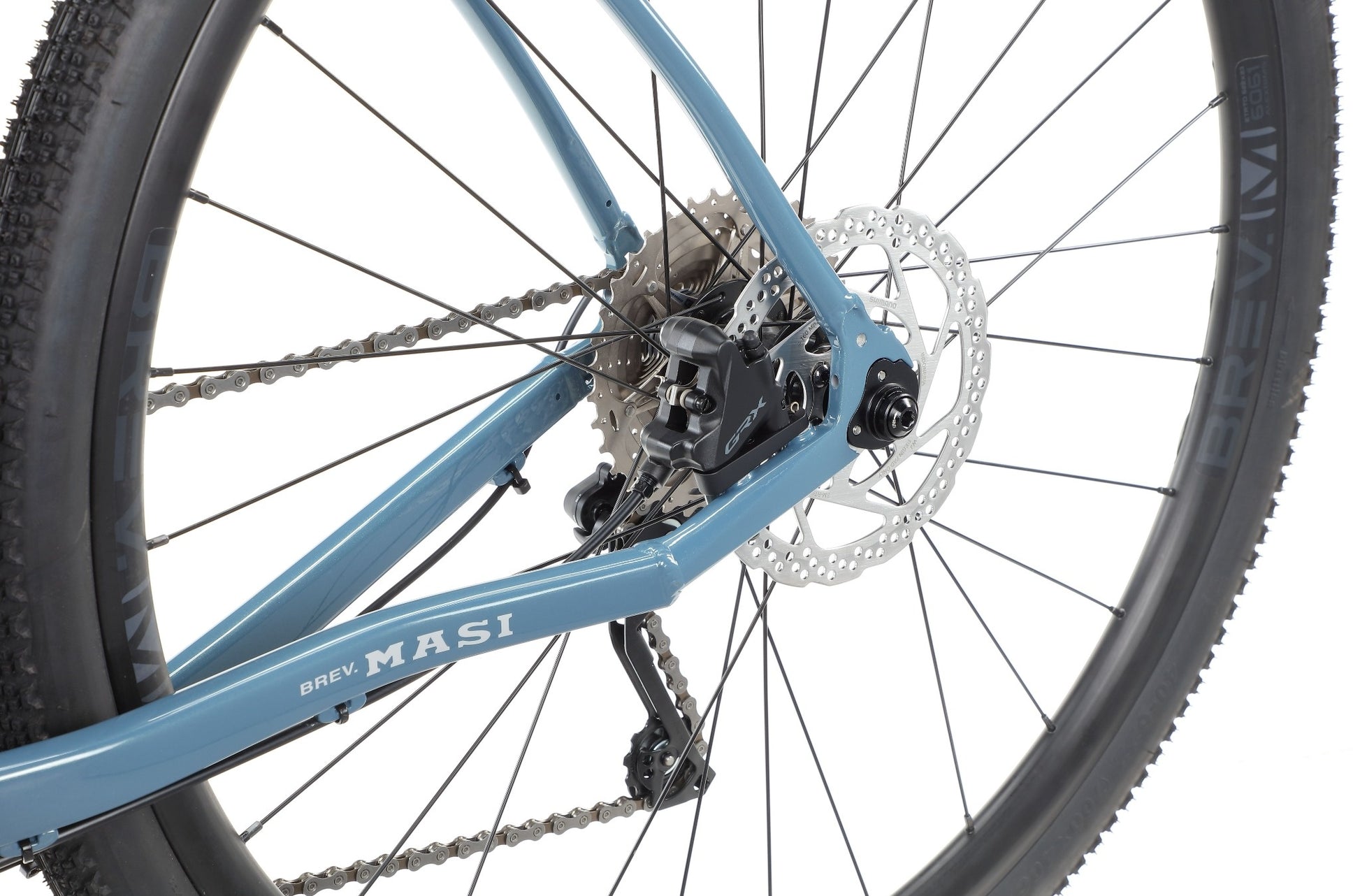

  • Close-up of a blue BRUNELLO 1 bicycles rear wheel with disc brake, chain, BREV MASI frame label, and a knobby tire.

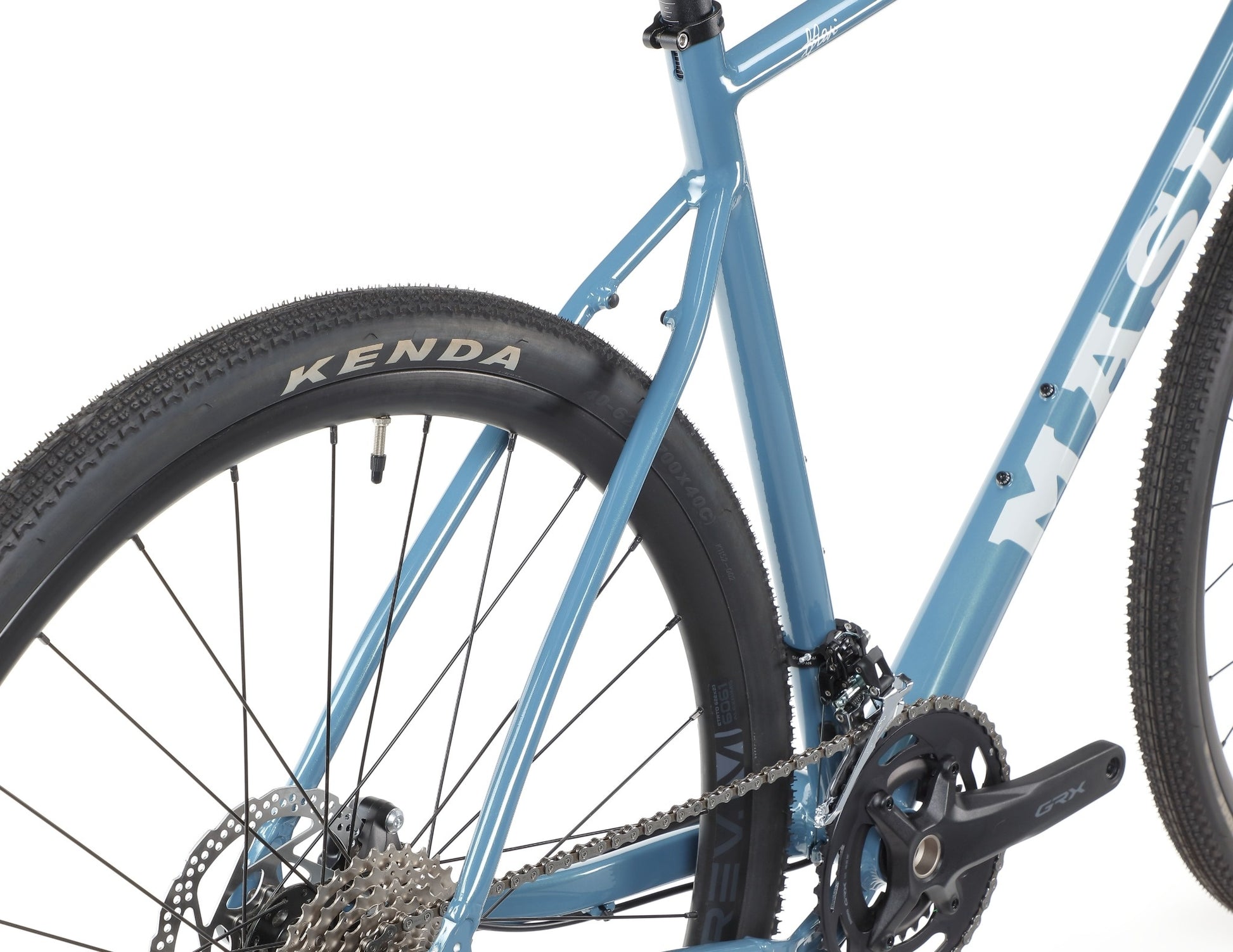

  • Close-up of the BRUNELLO 1 blue bicycle frame displaying the chain, gear, and Kenda tire against a white background.

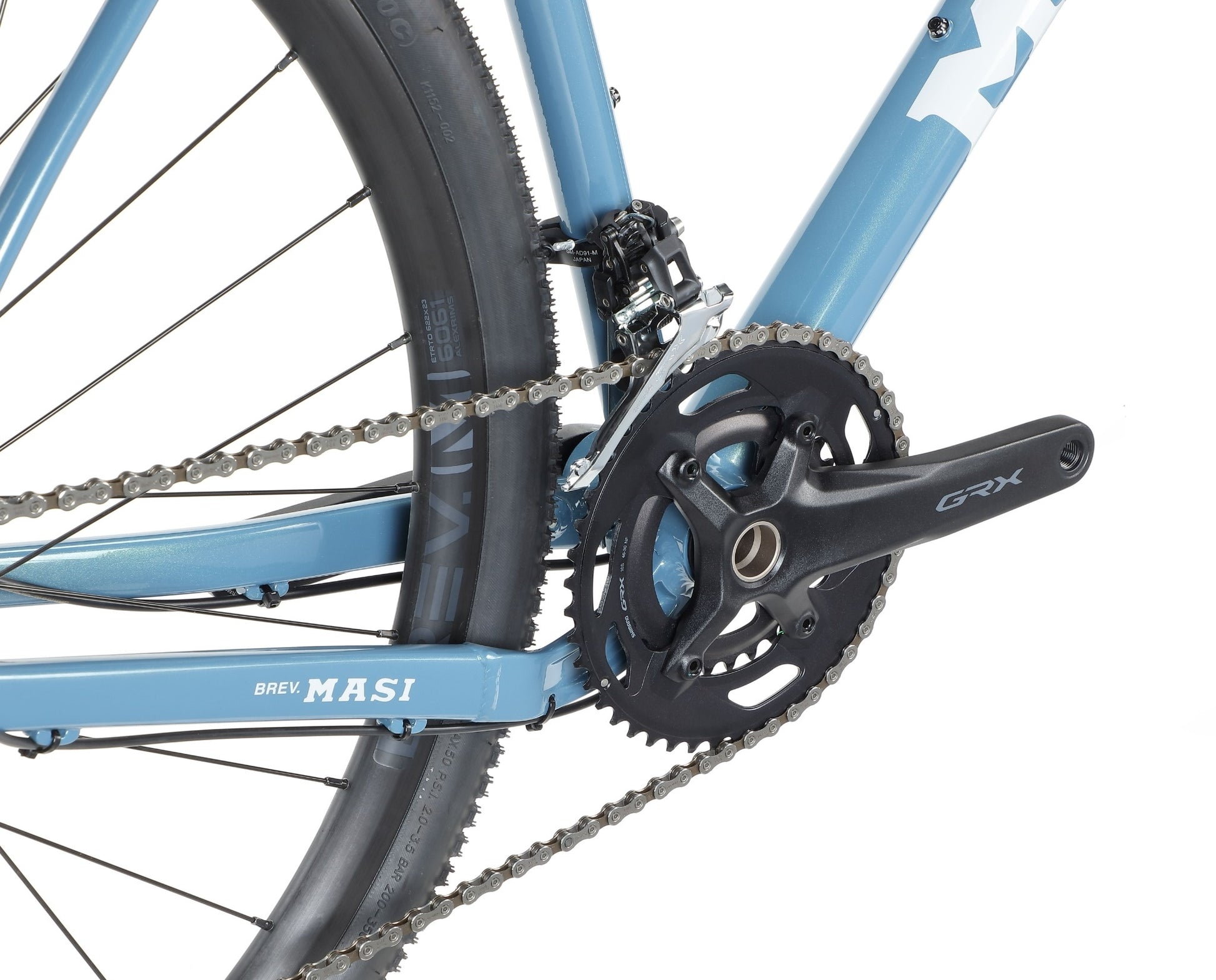

  • Close-up of a blue BRUNELLO 1’s rear wheel, chain, GRX crankset, and BREV MASI on the frame.

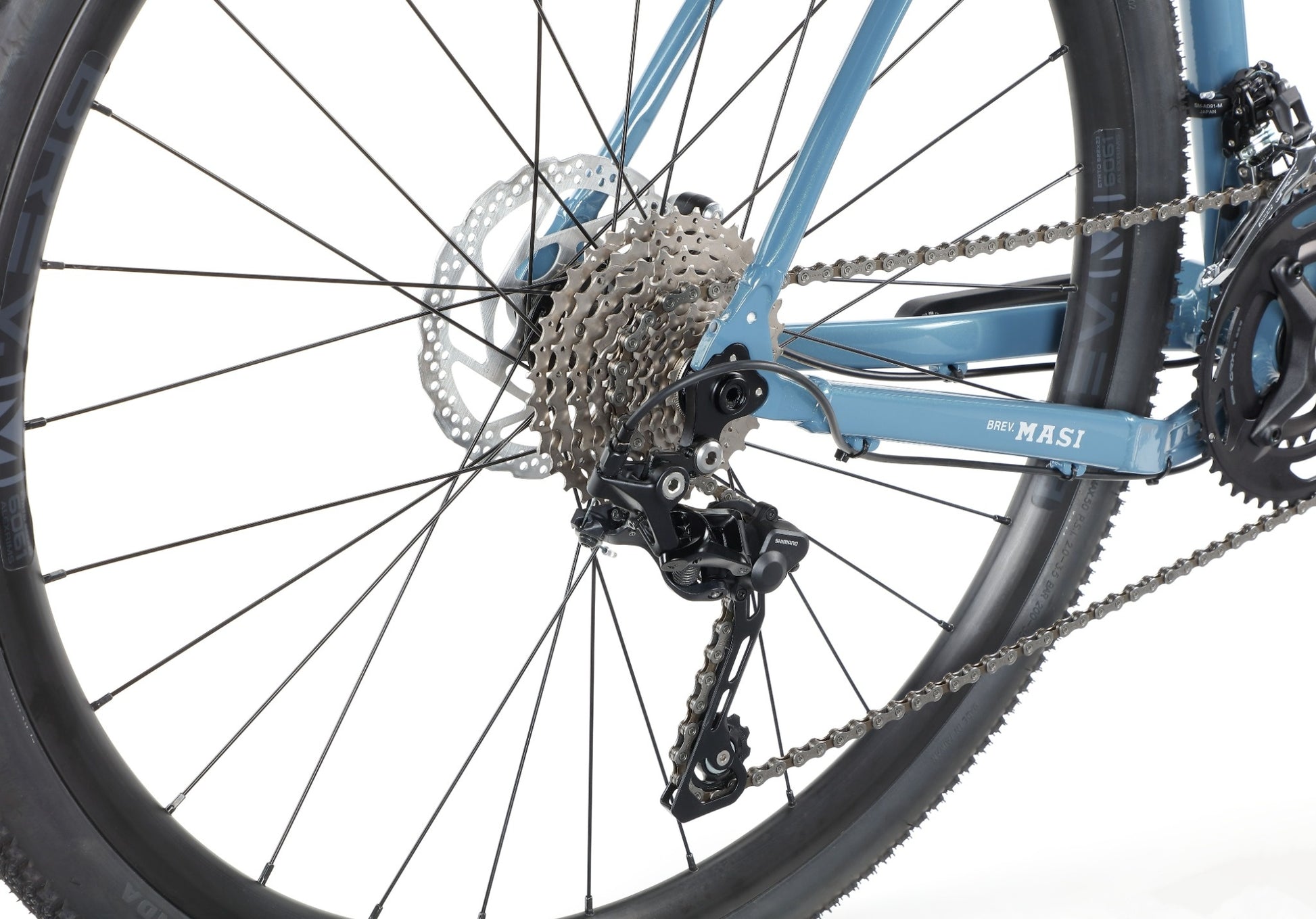

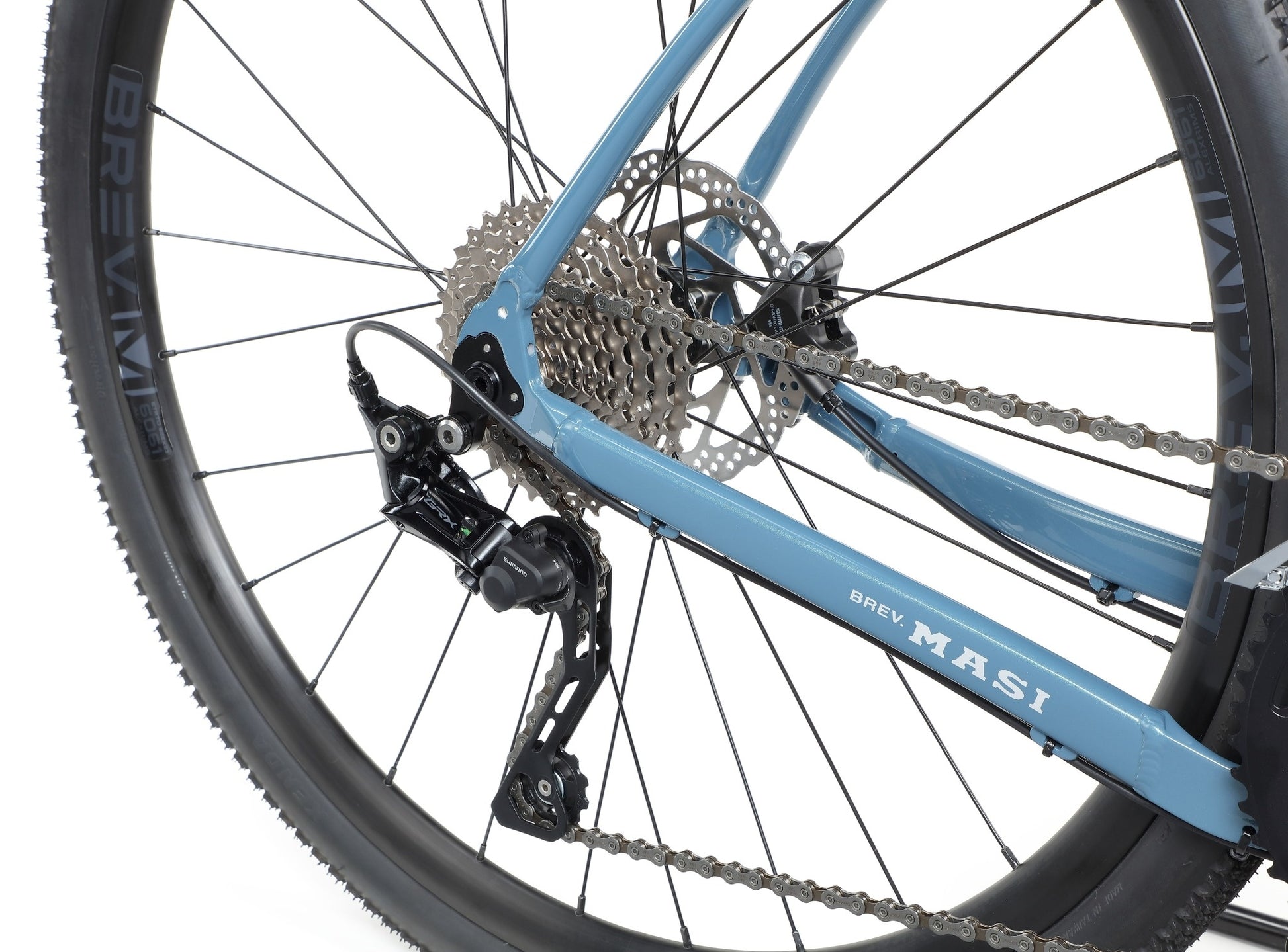

  • Close-up of the BRUNELLO 1s blue rear wheel, showcasing gears, derailleur, and spokes on a white background.
  • Close-up of the BRUNELLO 1 blue bikes rear wheel and gear system with a silver cassette and black derailleur.
1 9

Masi Bikes

BRUNELLO 1

BRUNELLO 1

Color: Midnight_Blue
Size

Order Inquiries: twdistributor@masibikes.com

View full details
Two cyclists ride a forest path under tall trees and a wooden bridge, one in teal closer, the other in red further, evoking adventure.

FEATURES

SPECIFICATIONS

FRAMESET
FrameMasi Alloy, ​BB86 bottom bracket, Flat-mount disc brake, 12 x 142mm thru-axle
ForkMasi Carbon, 1 1/8" - 1.5" tapered, 12x100mm thru-axle, Flat-mount disc
Colors
DRIVETRAIN
CranksShimano FC-RX600,46-30T​
Pedals
ChainShimano CN-HG54
Bottom BracketShimano BB-RS500-PB
Front DerailleurShimano FD-RX400
Rear DerailleurShimano RD-RX400
Derailleur ShifterShimano ST-RX400
Freewheel/CassetteShimano CS-HG50-10, 11-36T​
WHEELS
TiresKenda FLINTRIDGE, 700x40c​
Wheels/RimsMasi Disc brake, Alloy rim, Double wall
Front HubAccess 12 x 100mm, Thru Axle, 6 Bolt Disc, 28H​
Rear HubAccess 12 x 142mm, Thru Axle, 6 Bolt Disc, 28H​
BRAKING SYSTEM
BrakesShimano BR-RX400 caliper, SM-RT56, 160mm​ rotor
OTHER COMPONENTS
Grips/Tape
HandlebarMasi Ø31.8mm / SSABK ​
StemMasi 31.8mm / -7° / Black
Headset
SaddleMasi 280 x 139mm, Ti-Alloy Rail​
Seat PostMasi Ø27.2mm / 330mm / Black

GEOMETRY

SIZEXSSMLXLXXL
A. Top Tube (Effective)541mm (21.3")549mm (21.6")564mm (22.2")574mm (22.6")581mm (22.9")589mm (23.2")
B. Seat Tube (C-T)440mm (17.3")470mm (18.5")500mm (19.7")520mm (20.5")540mm (21.3")570mm (22.4")
C. Stack Height551mm (21.7")559mm (22")580mm (22.8")594mm (23.4")610mm (24")629mm (24.8")
D. Reach388mm (15.3")394mm (15.5")399mm (15.7")401mm (15.8")403mm (15.9")406mm (16")
E. Standover733mm (28.9")762mm (30")788mm (31")807mm (31.8")826mm (32.5")851mm (33.5")
F. Head Tube Length114.5mm (4.5")123mm (4.8")144mm (5.7")158.5mm (6.2")175mm (6.9")195.5mm (7.7")
G. Head Angle71.8°71.8°72.2°72.2°72.2°72.2°
H. Seat Angle74.5°74.5°74°73.7°73.7°73°
I. Wheel Base1011.1mm (39.8")1019mm (40.1")1026.4mm (40.4")1033.2mm (40.7")1040.2mm (41")1049.2mm (41.3")
J. Chainstay425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")
K. BB Drop74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")
L. Fork Offset45mm45mm45mm45mm45mm45mm
M. Stem Length90mm90mm100mm100mm110mm110mm
N. Bar Width400mm420mm420mm420mm440mm440mm
O. Crank Length165mm170mm172.5mm172.5mm175mm175mm
P. Wheel Size700700700700700700
