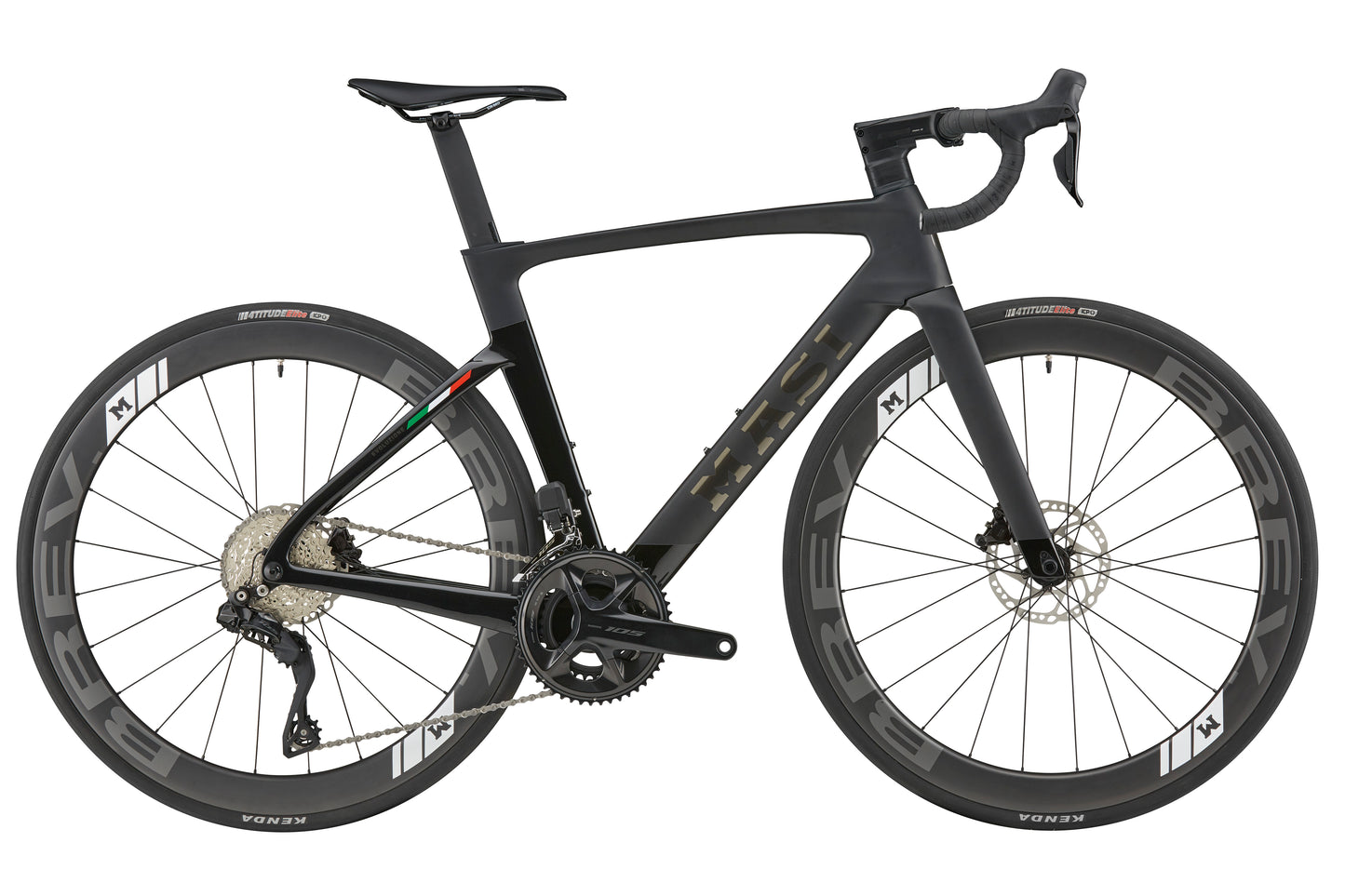

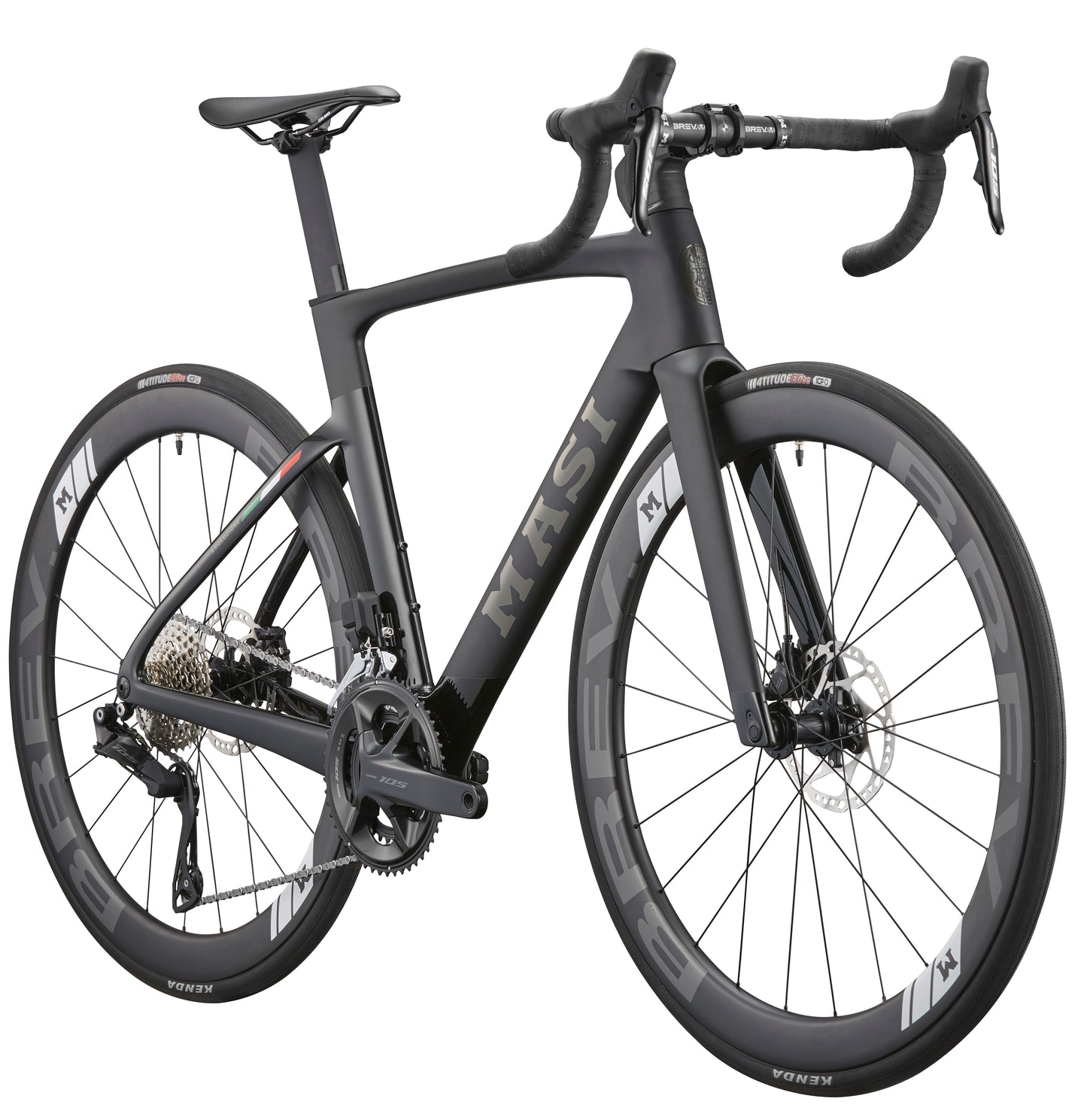

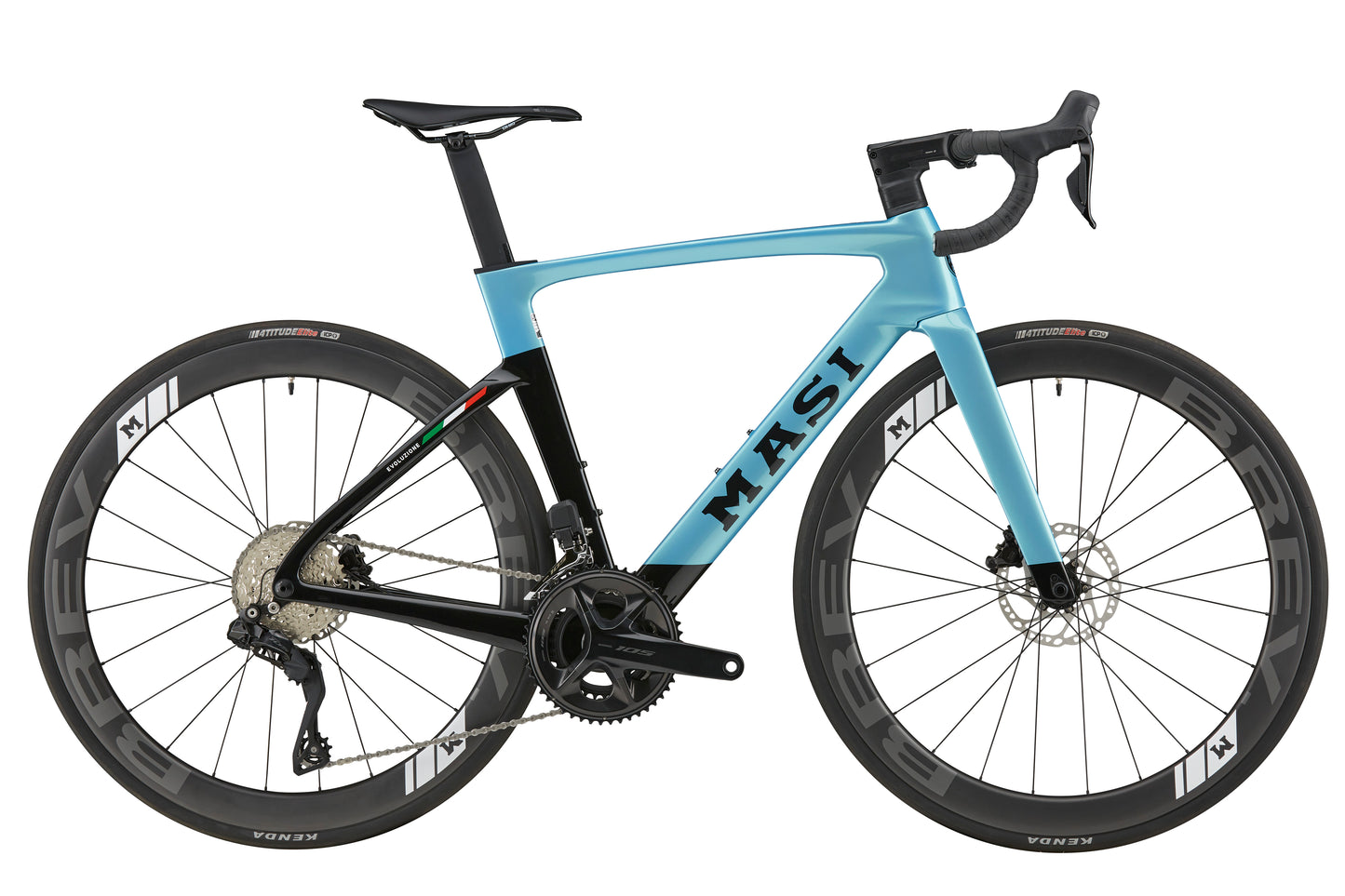

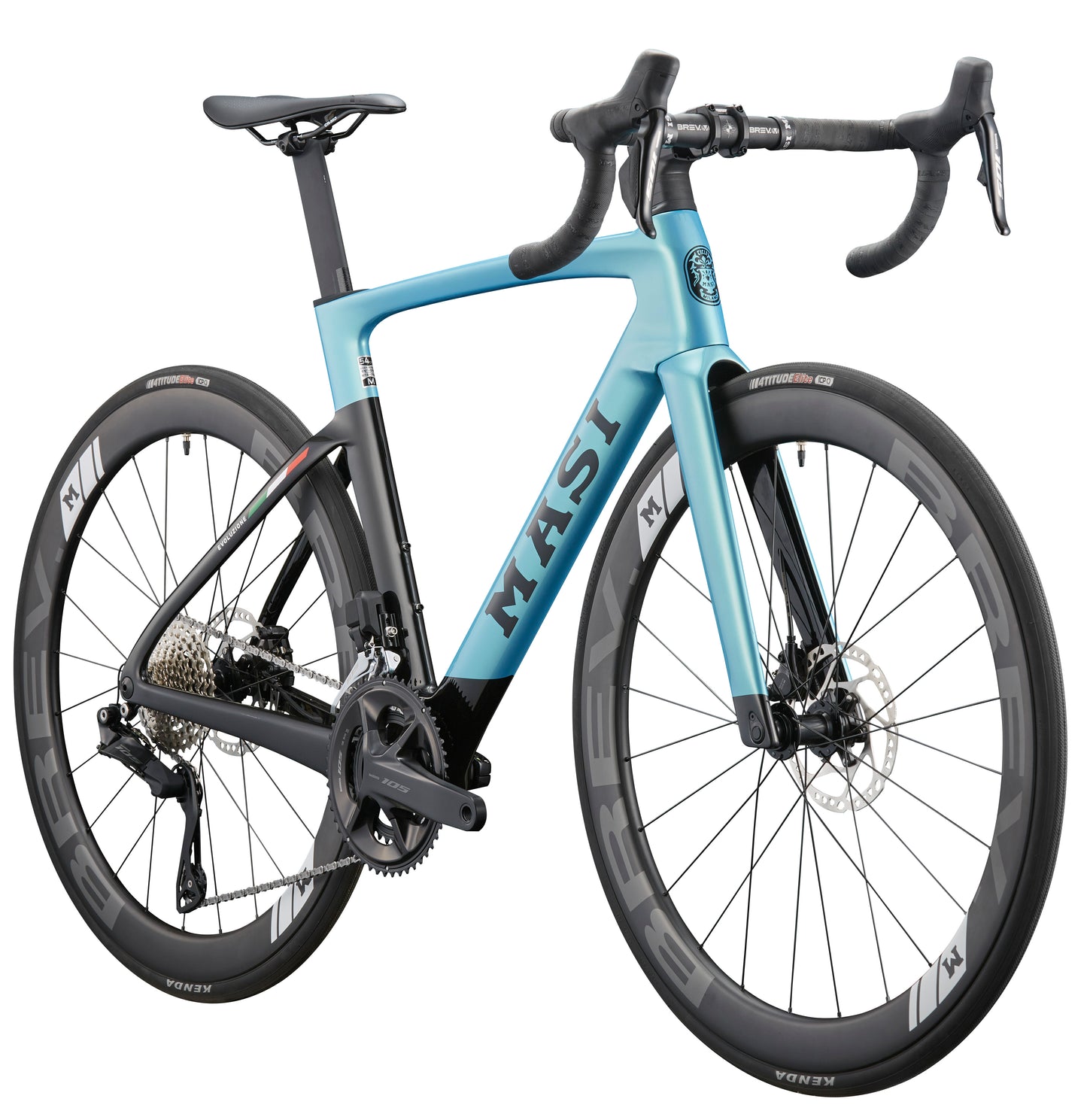

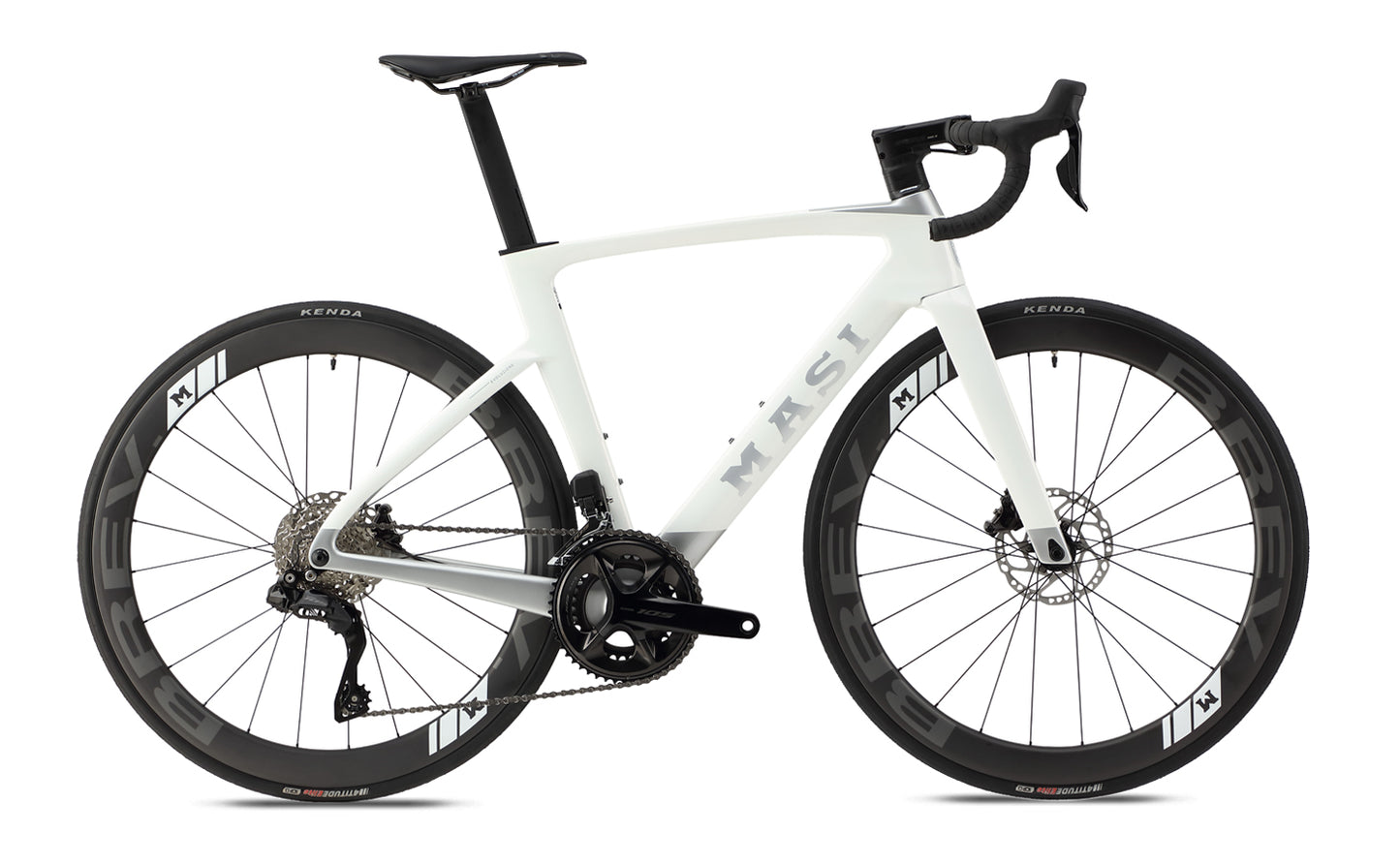

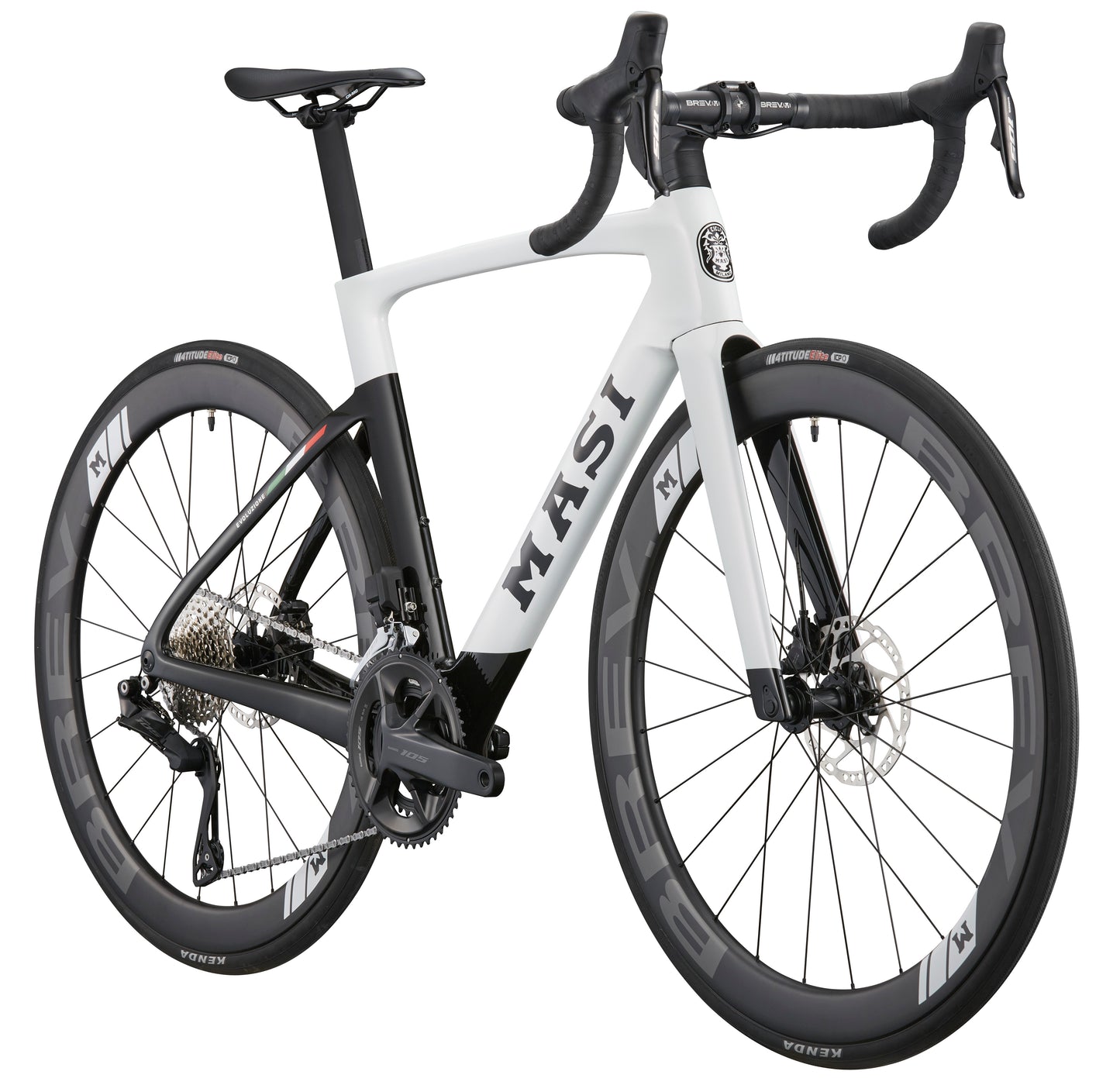

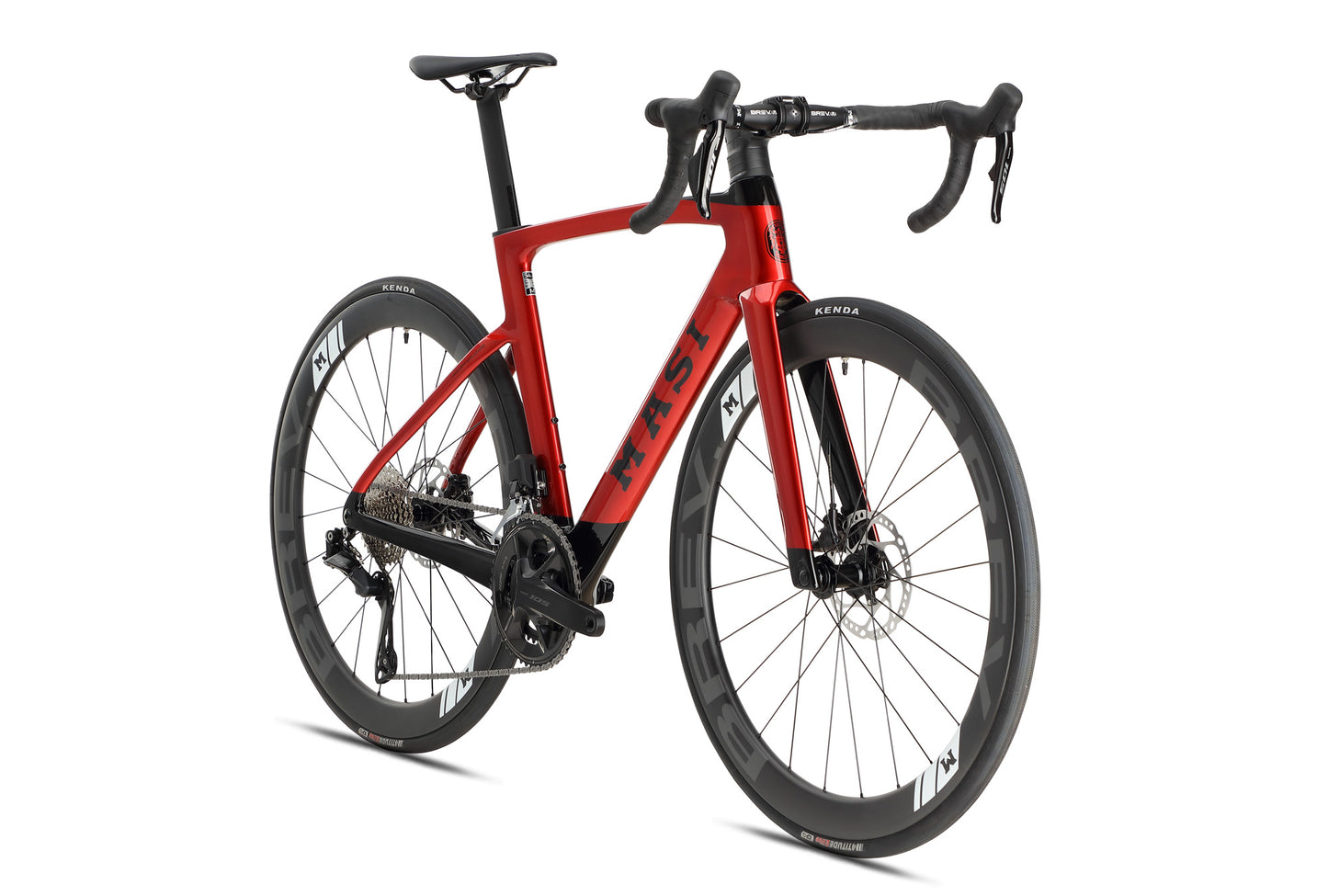

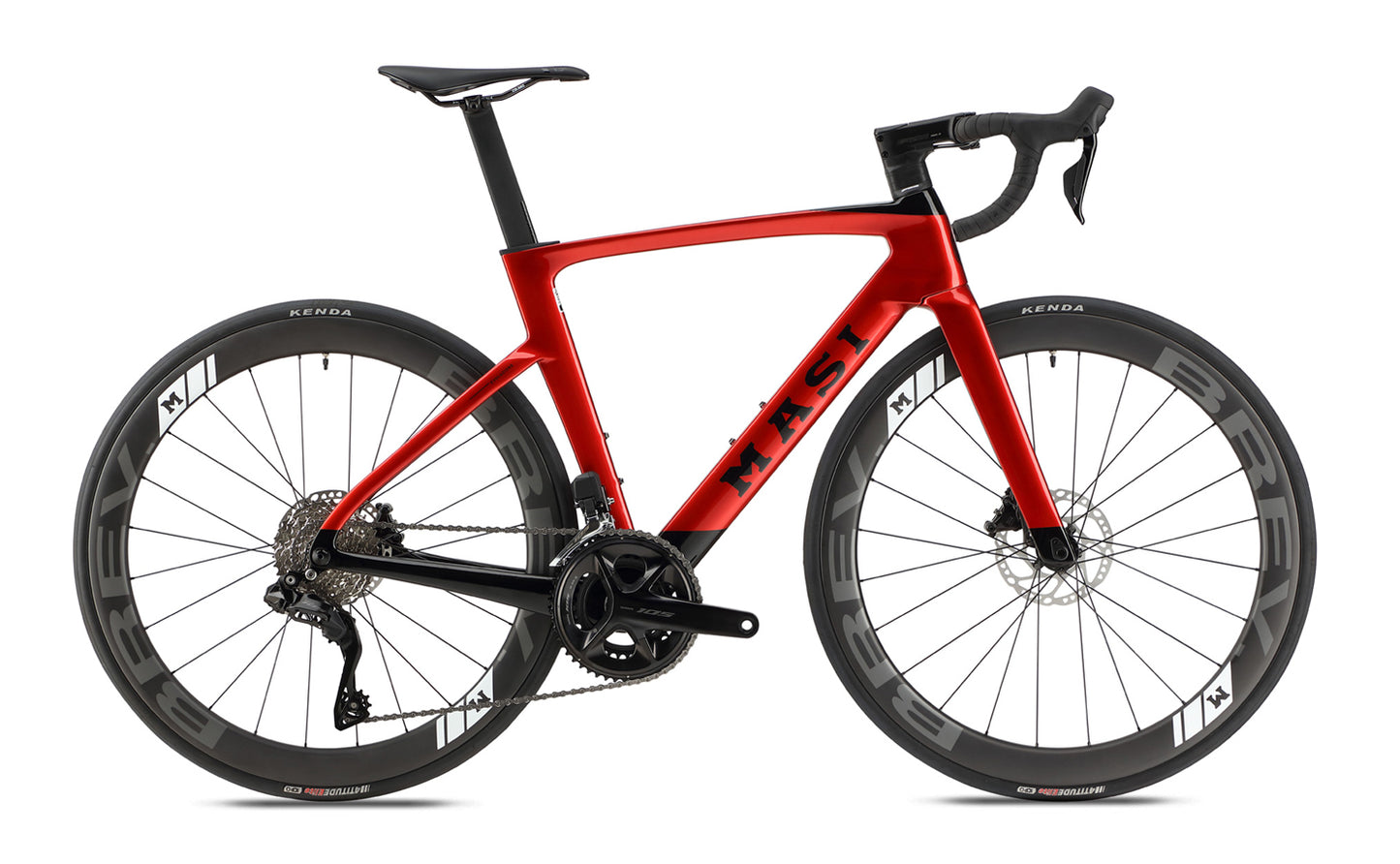

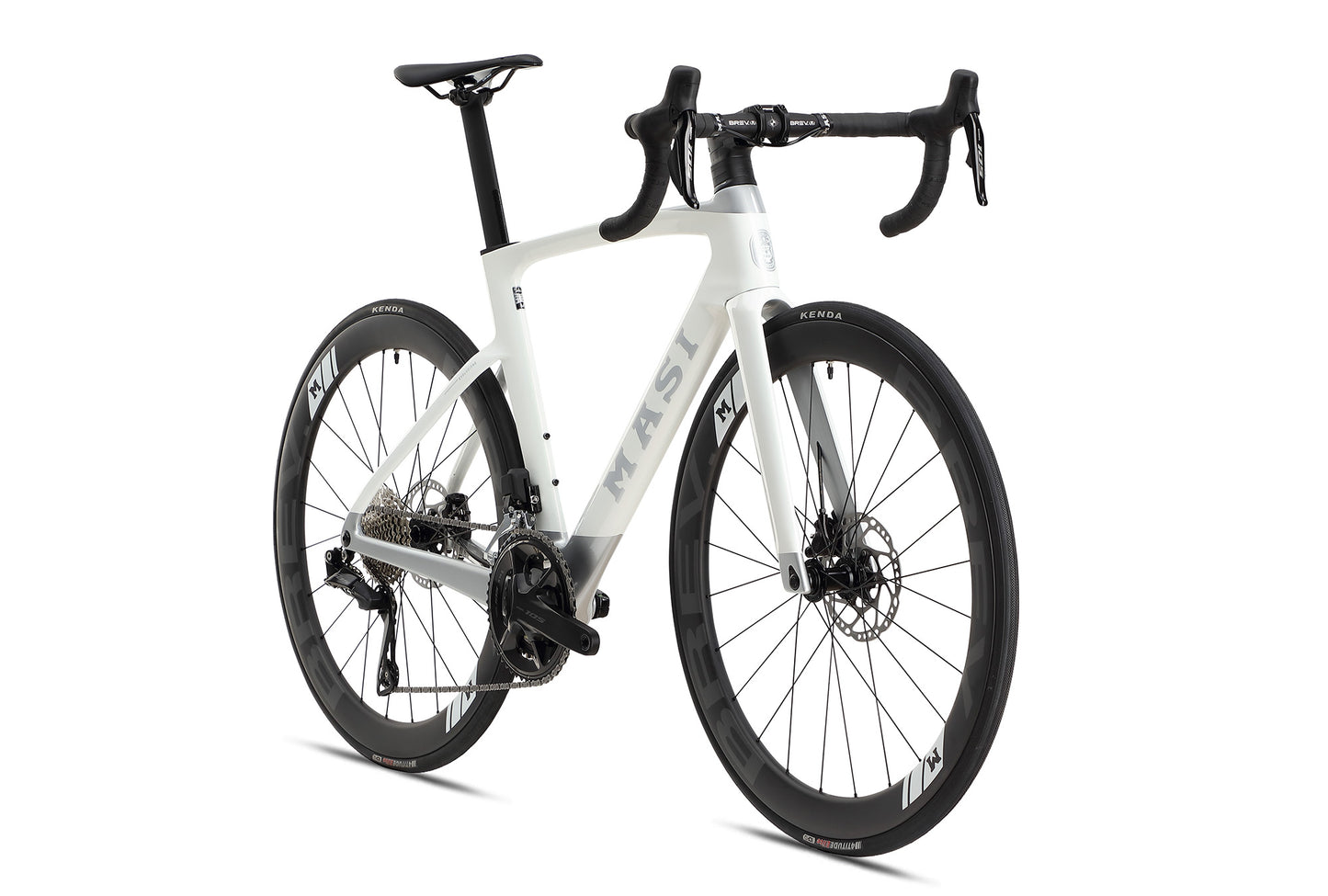

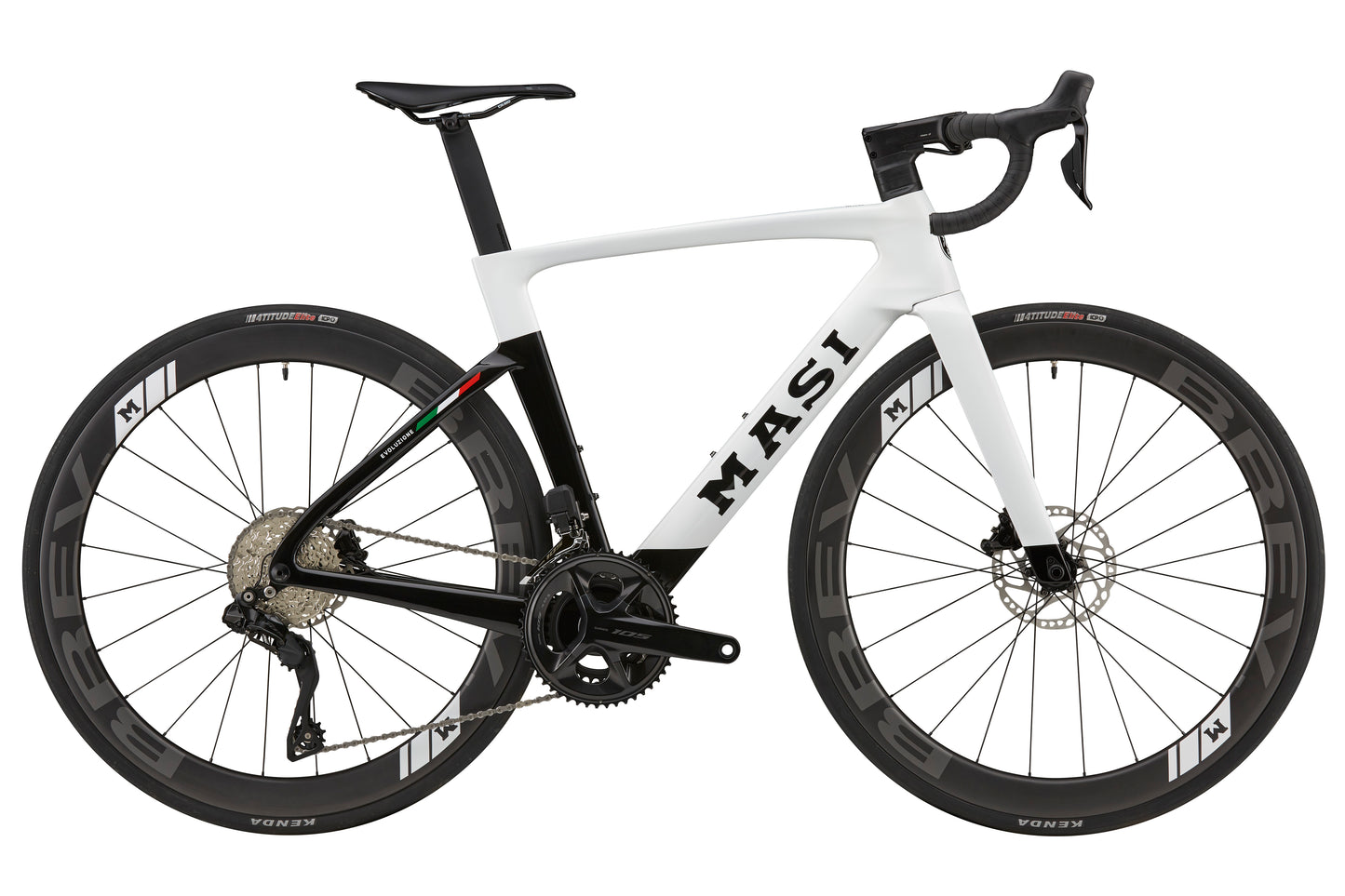

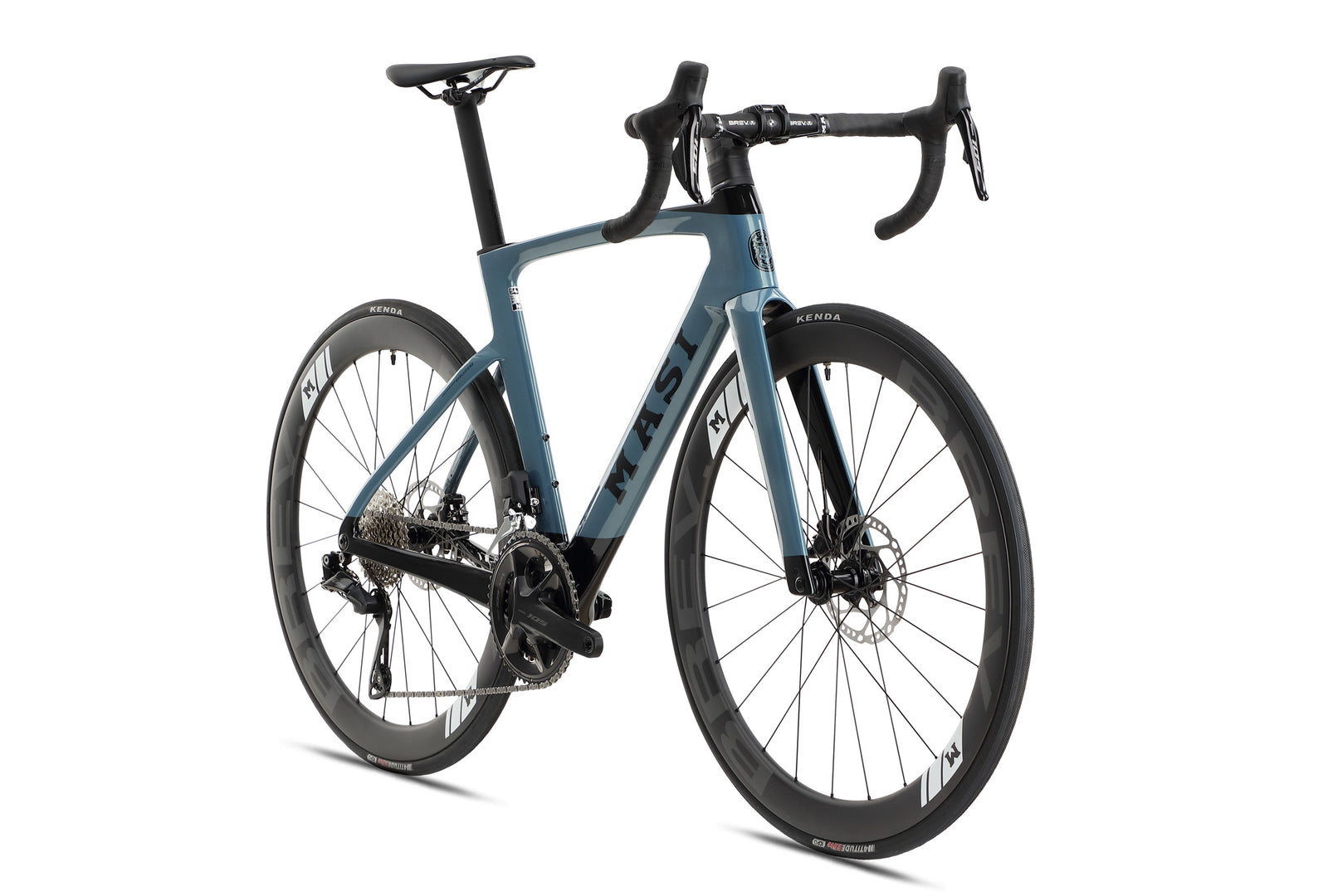

EVOLUZIONE 1

EVOLUZIONE 1

SKU:

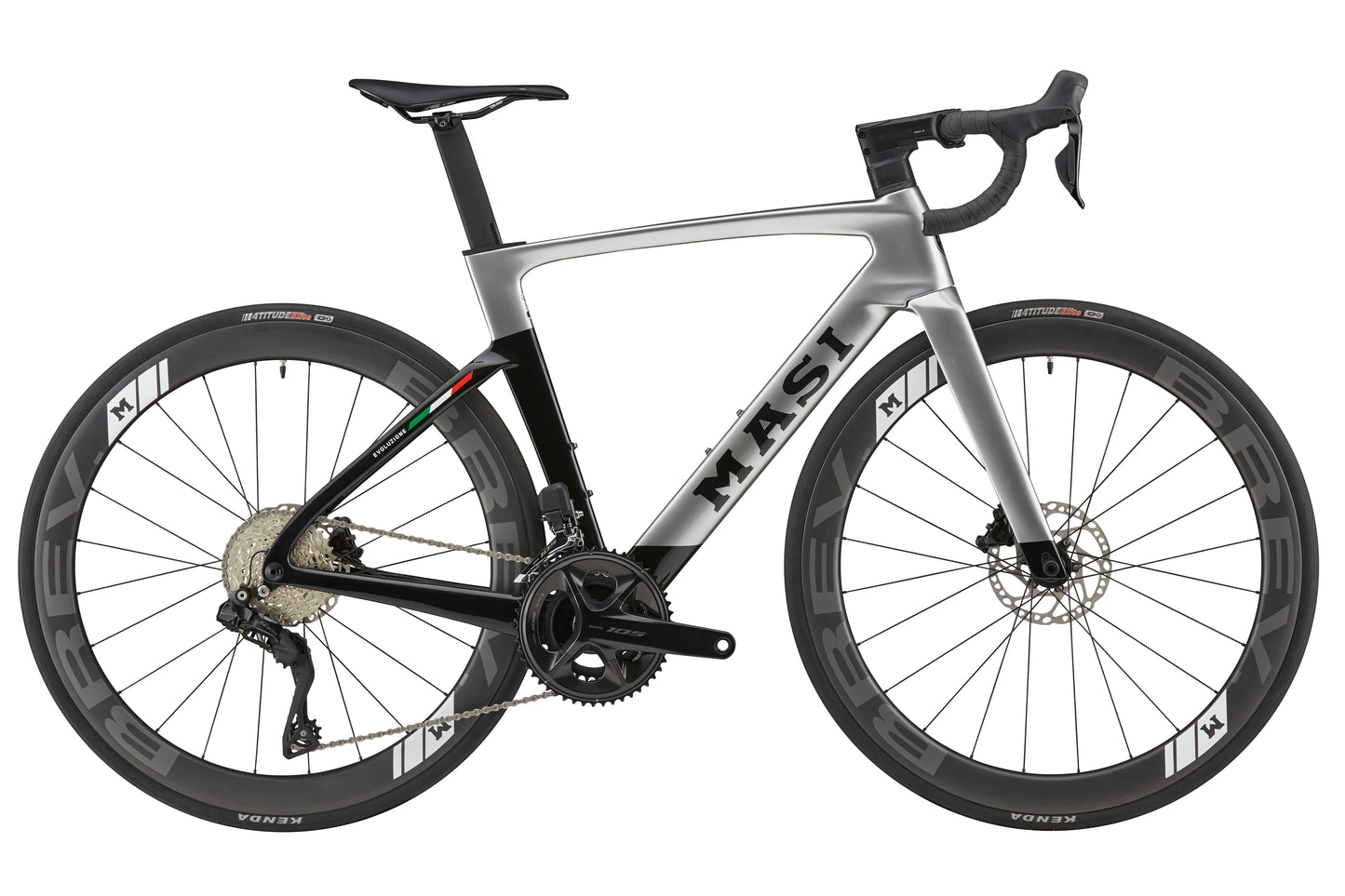

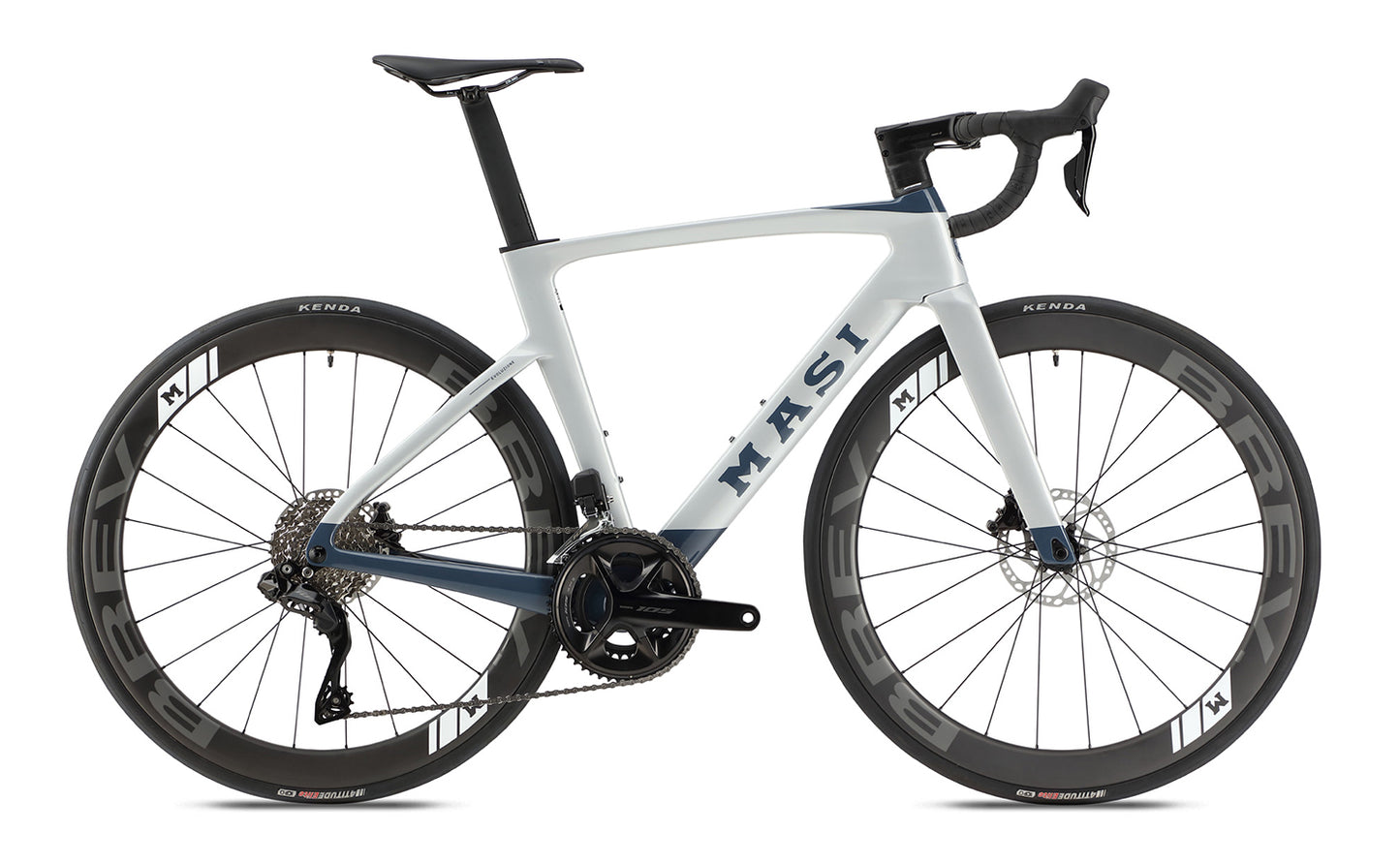

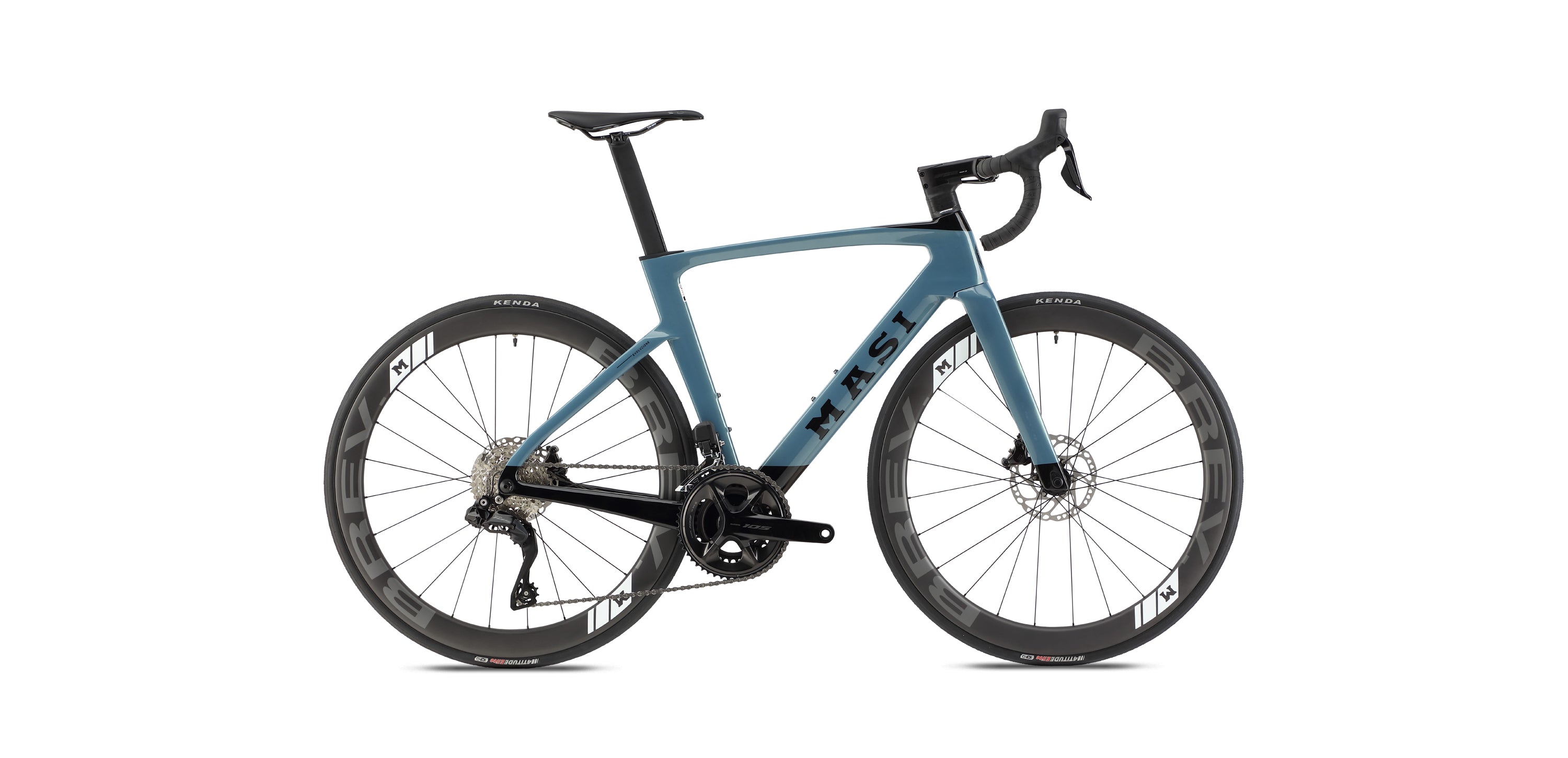

Engineered for the avid cyclist who demands high performance and impeccable style. This road bike boasts a sleek, aerodynamic design that cuts through the air with minimal resistance, offering an exhilarating ride for both competitive racing and leisurely adventures.

With internal cable routing it not only presents a clean, streamlined appearance but also reduces aerodynamic drag. This feature enhances the overall efficiency and performance of the bike.

Whether you're pushing the pace in a race or enjoying a scenic ride, the Masi Evoluzione 1 Carbon is your ultimate companion, combining state-of-the-art technology and timeless design to deliver an unparalleled biking experience.

Color
Size

Order Inquiries: twdistributor@masibikes.com

View full details

FEATURES

  • High-quality carbon frame: Perfect balance of lightness, stiffness, and comfort
  • Lightweight carbon fork: Precise steering, enhanced ride comfort, and overall performance
  • Shimano 105 Di2 12-speed drivetrain: Reliable and precise in all conditions
  • Internal cable routing: Clean design and improved aerodynamics through reduced air resistance
  • Optimized riding position: Comfort and performance, reducing fatigue on long rides

SPECIFICATIONS

FRAMESET

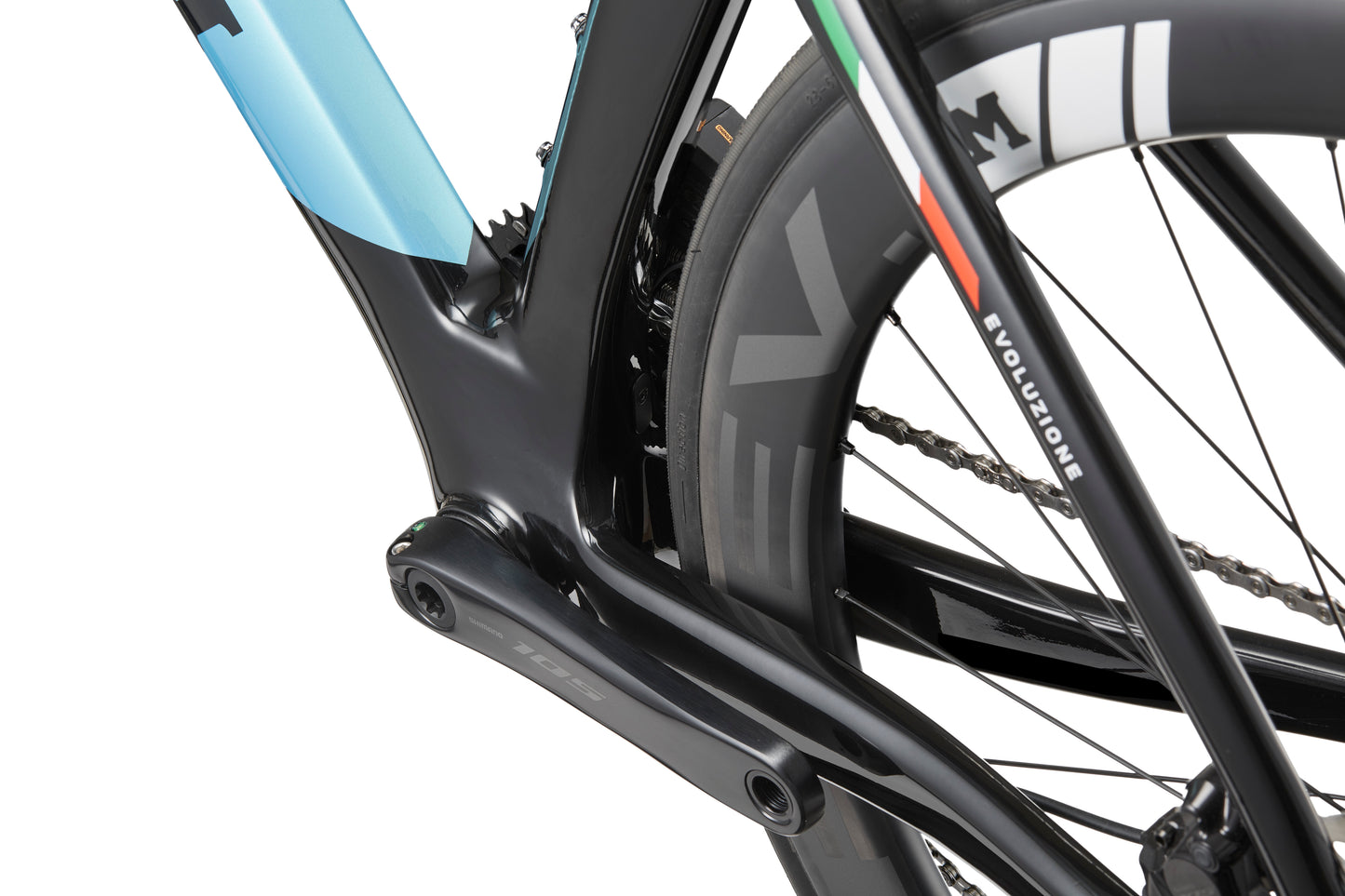

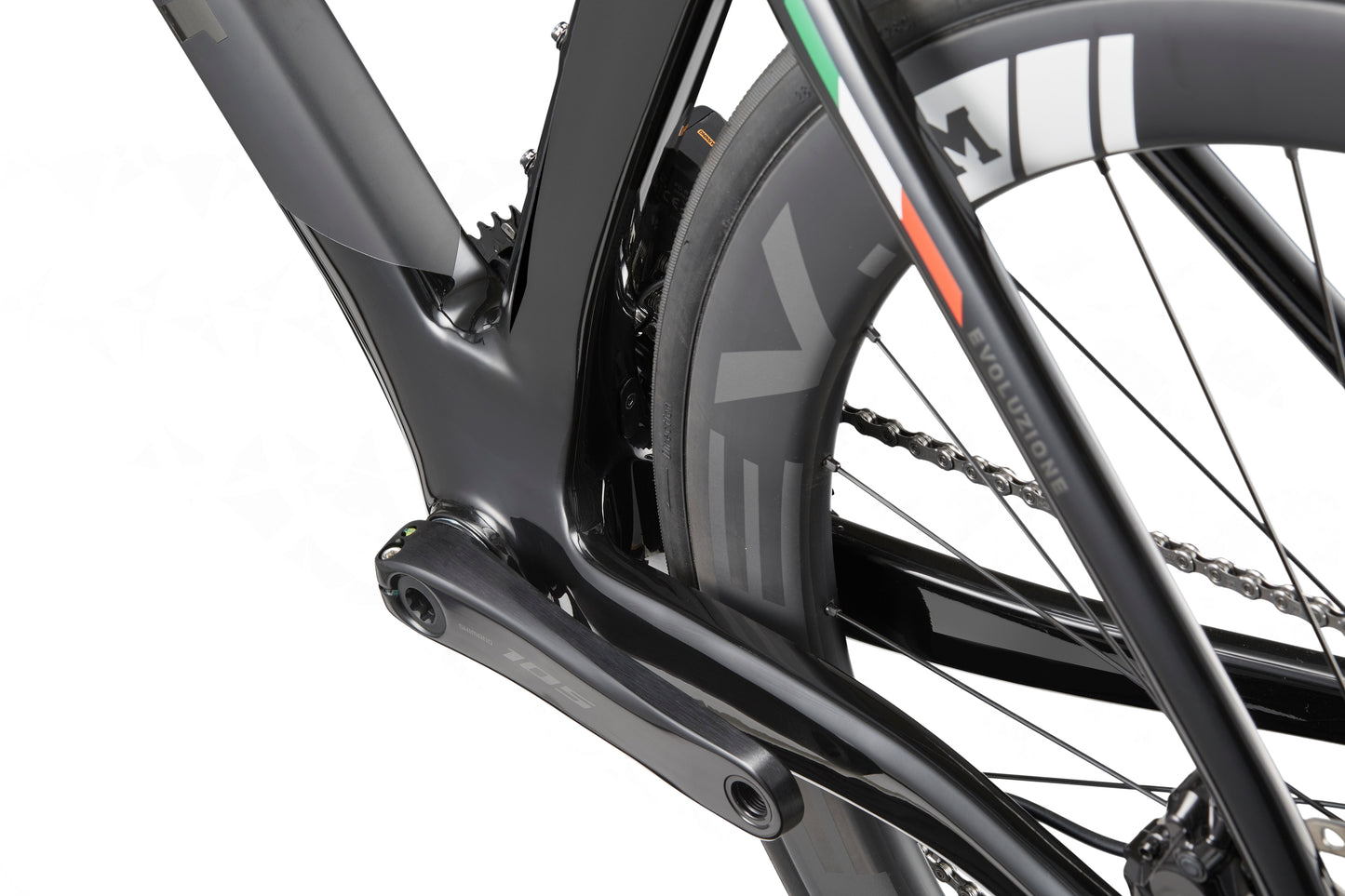

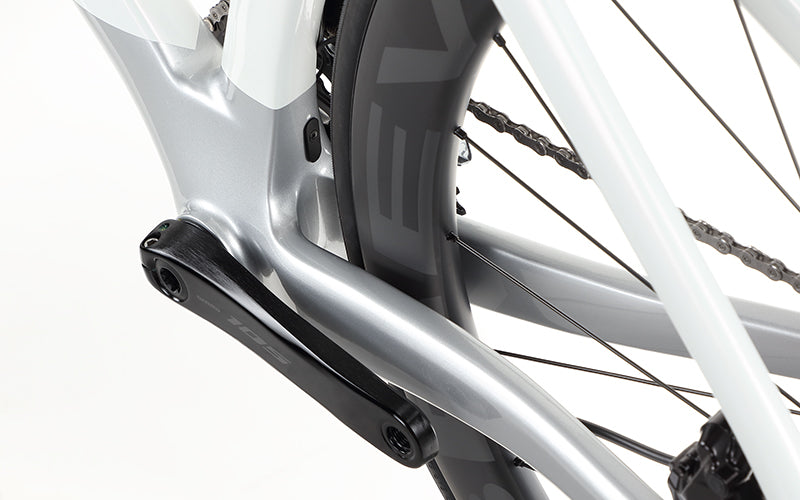

FrameMasi Carbon, ​BB86 bottom bracket, Flat-mount disc brake, 12 x 142mm thru-axle, Internal cable routing
ForkMasi Carbon, 1 1/8" - 1.5" tapered, 12x100mm thru-axle, Flat-mount disc
ColorsMidnight Blue, Concrete Grey, Storm Red, Evo White
DRIVETRAIN

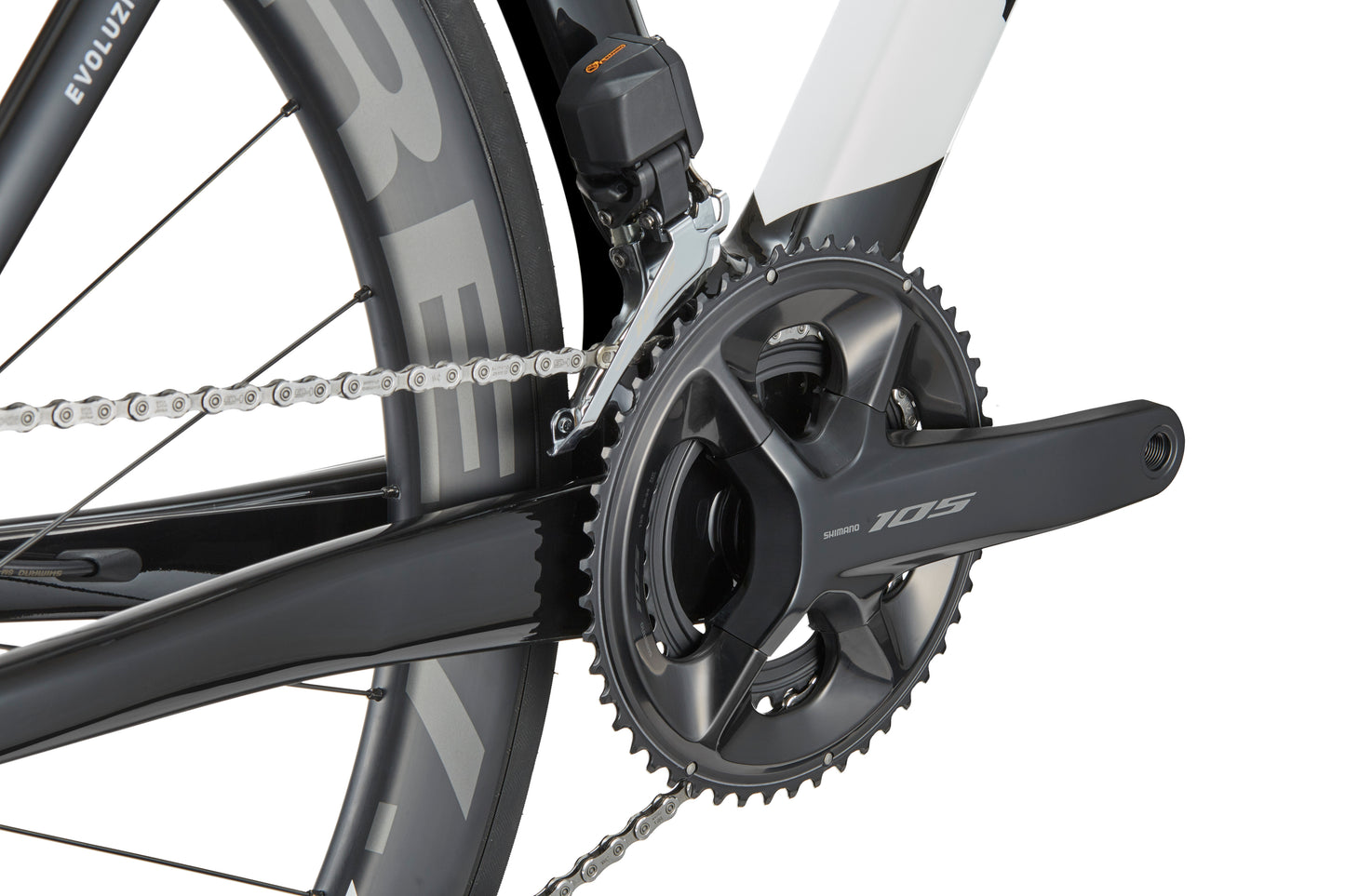

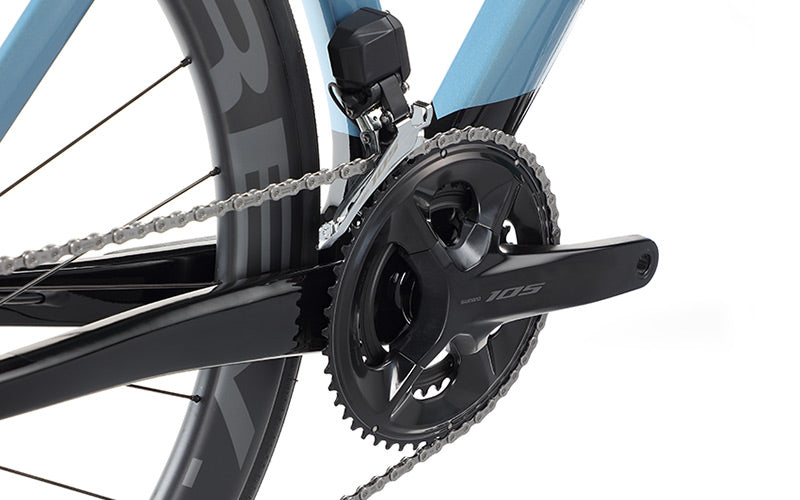

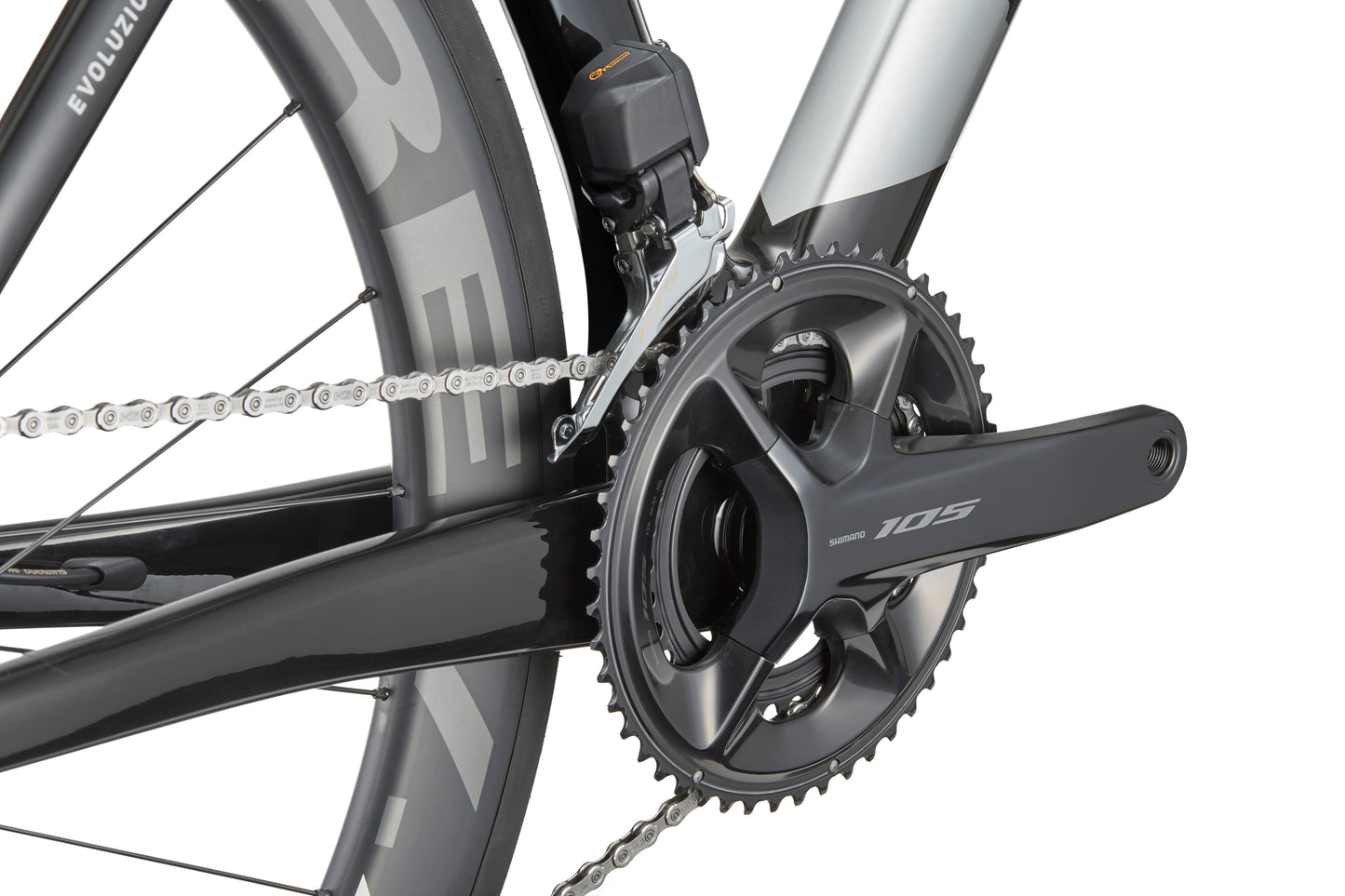

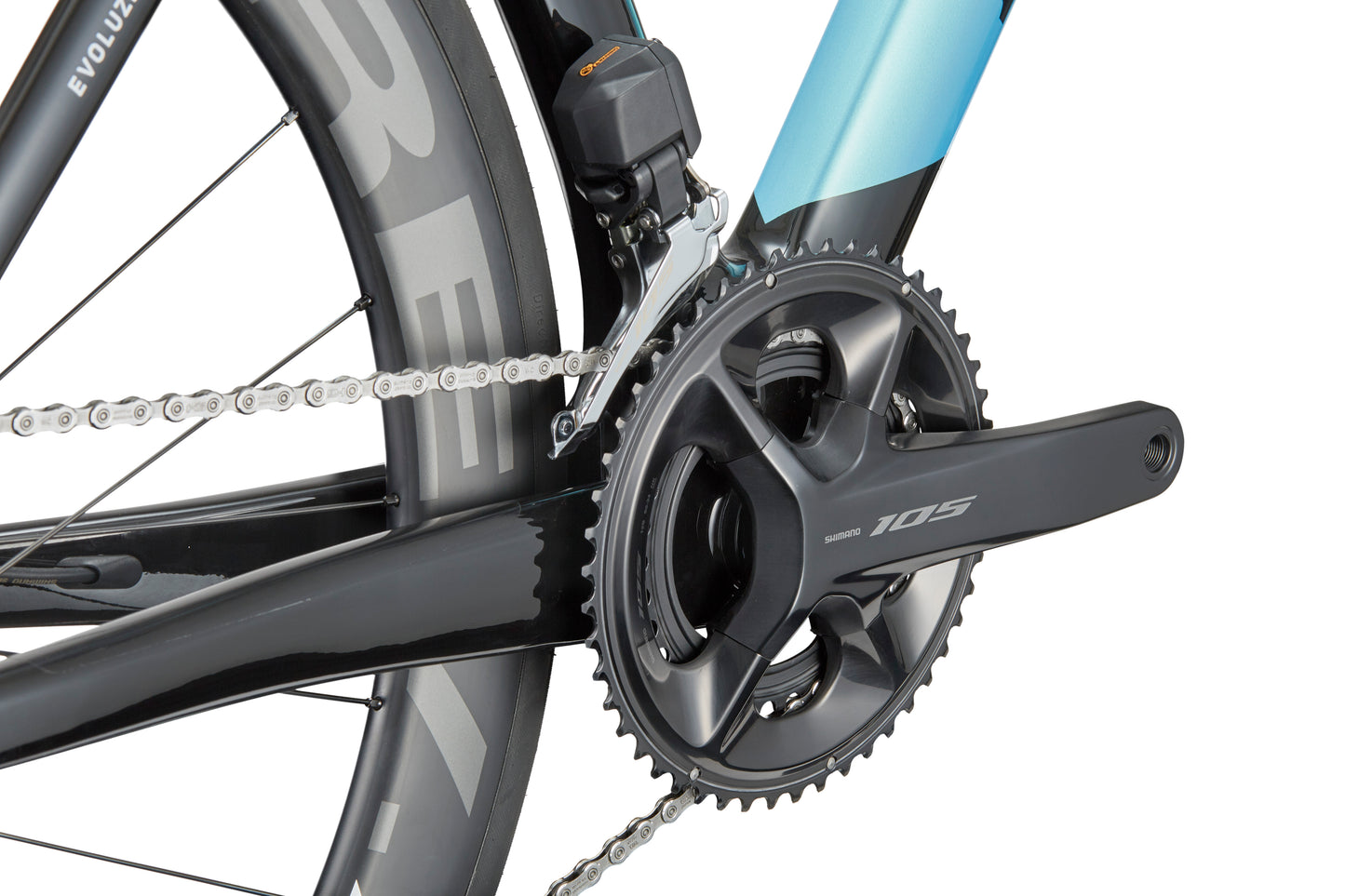

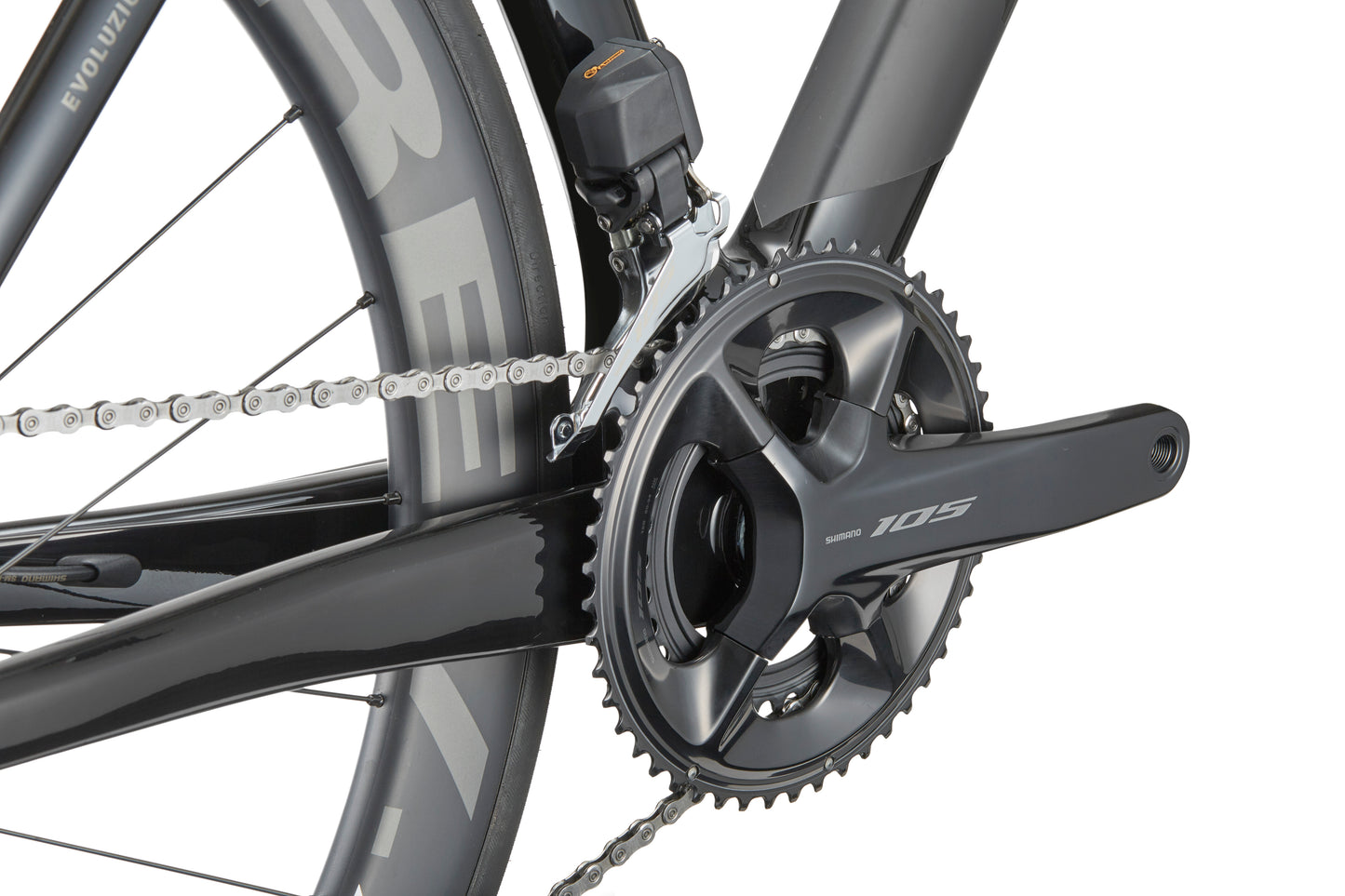

CranksShimano FC-R7100, 50-34T​
Pedals
ChainShimano CN-M6100​

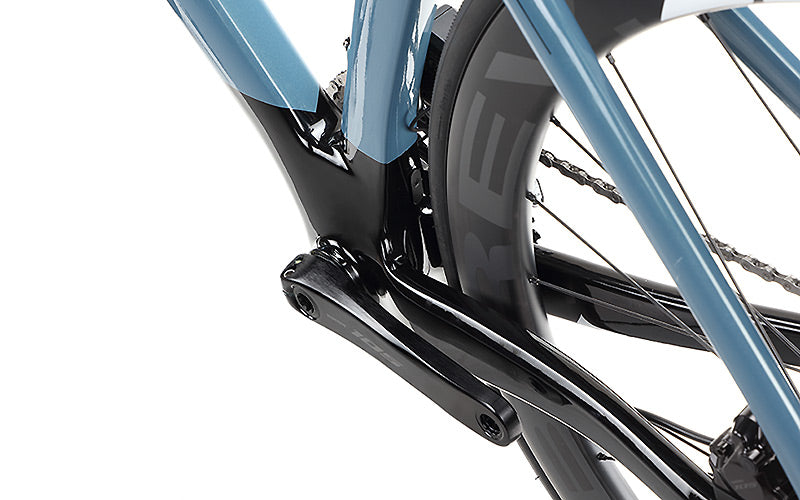

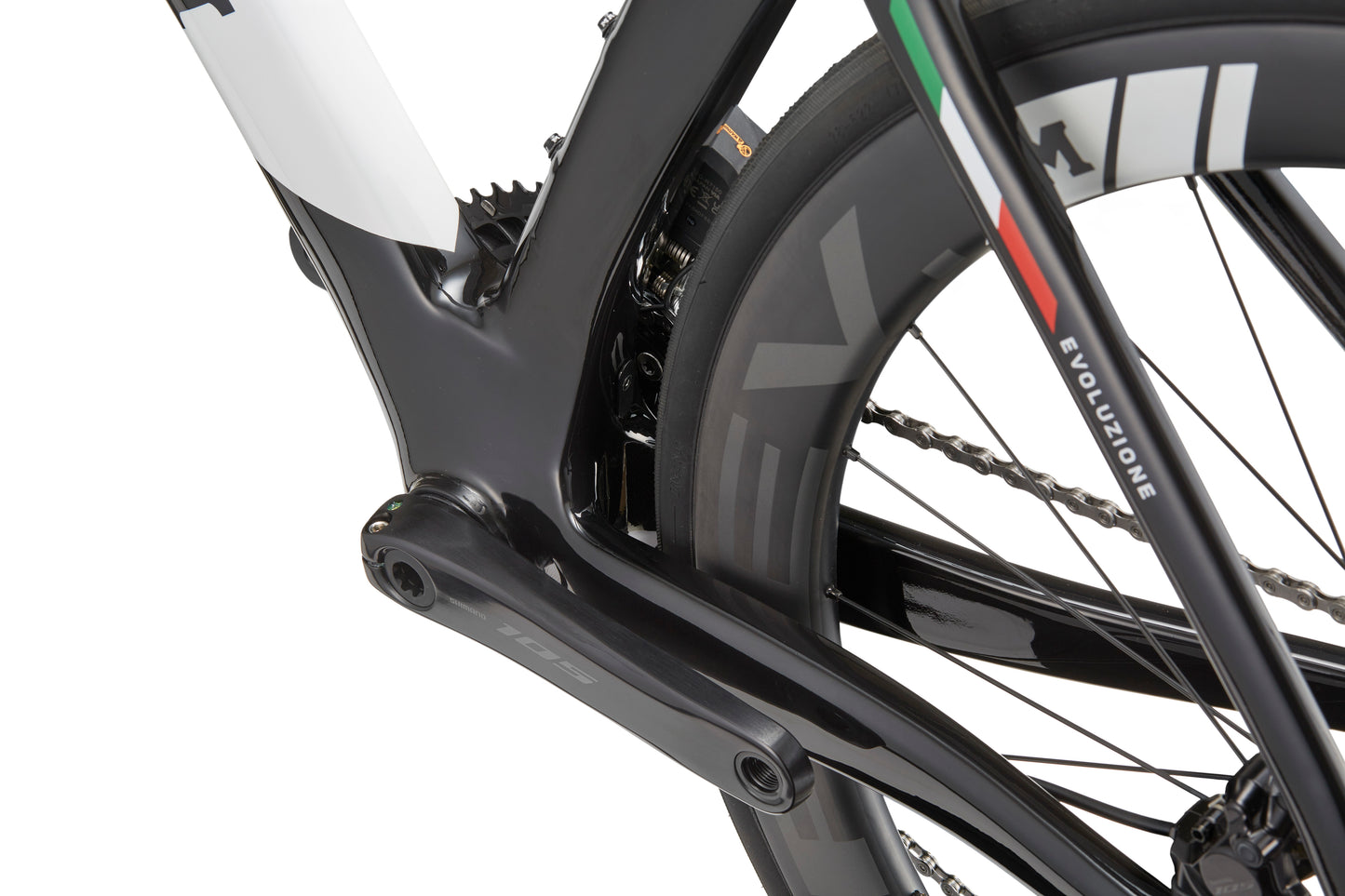

Bottom BracketShimano BB-RS500​

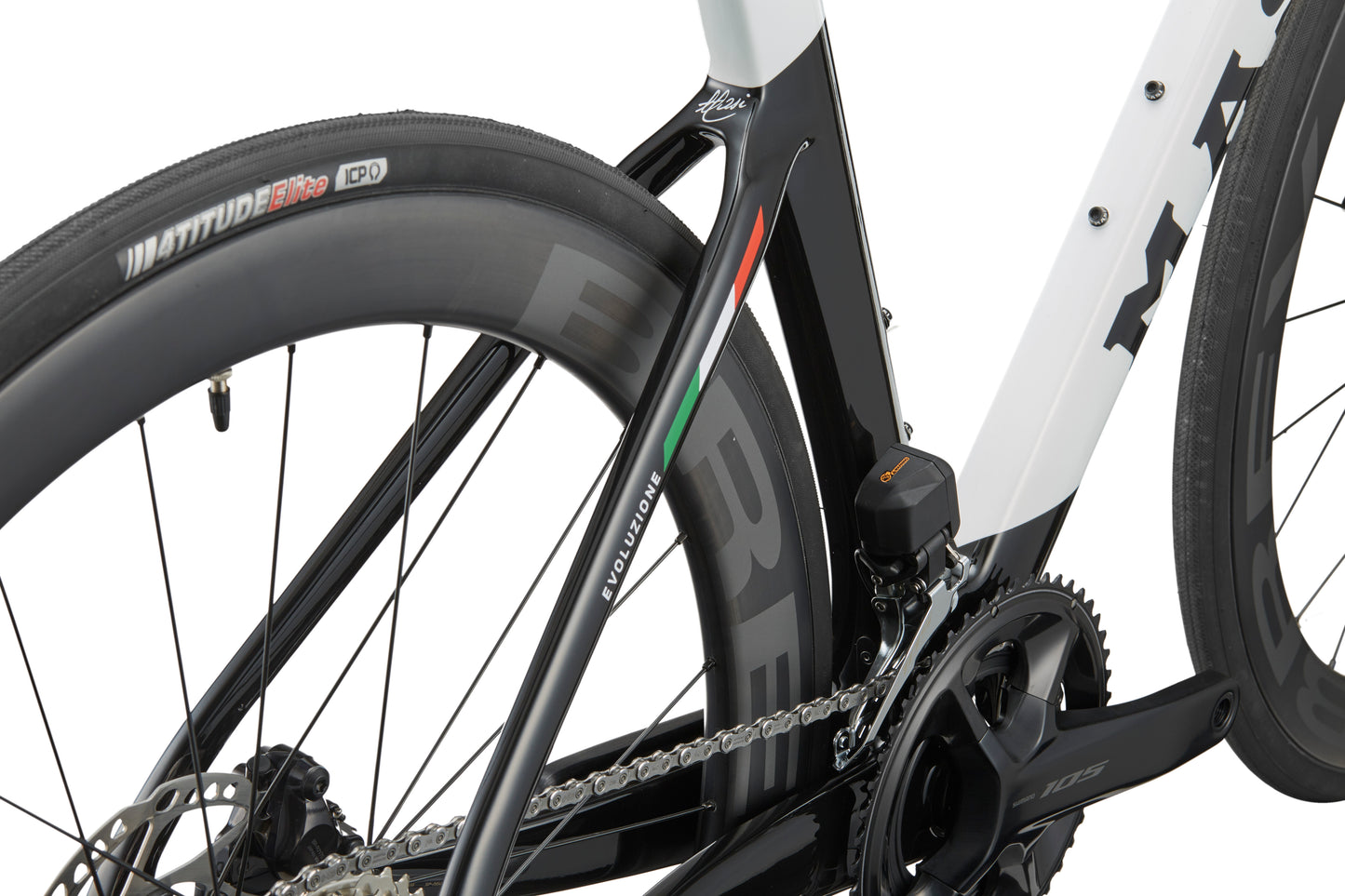

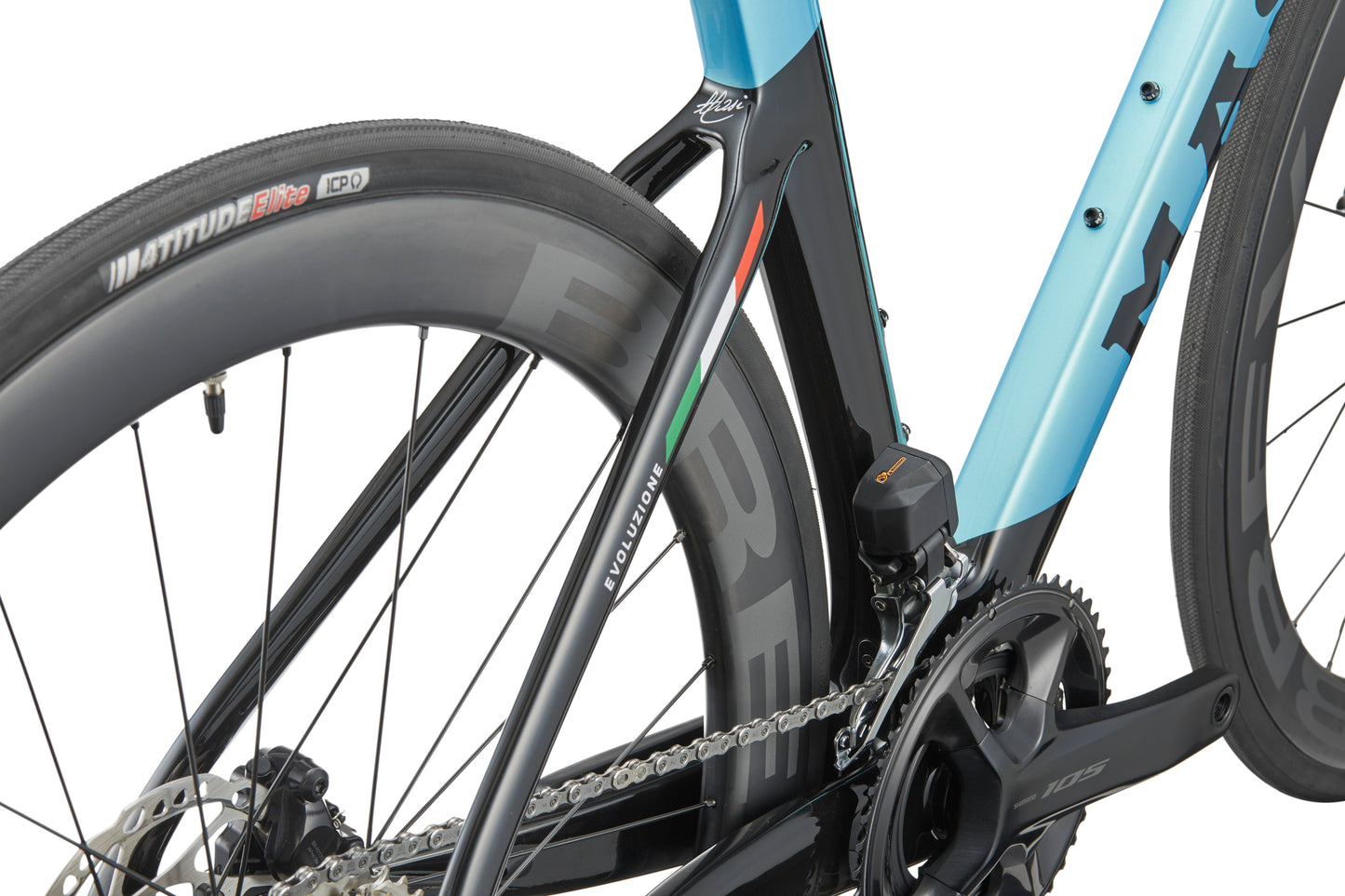

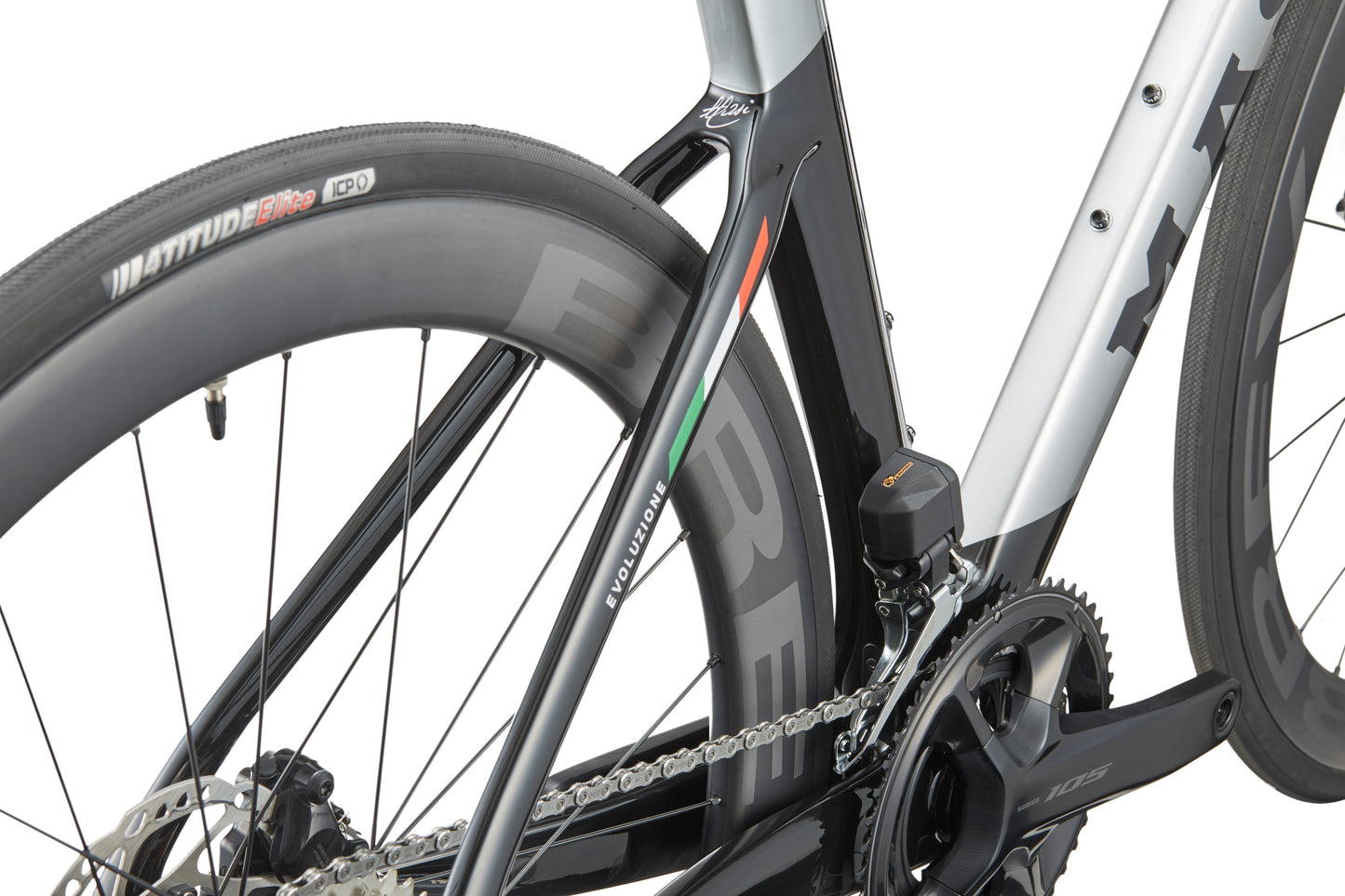

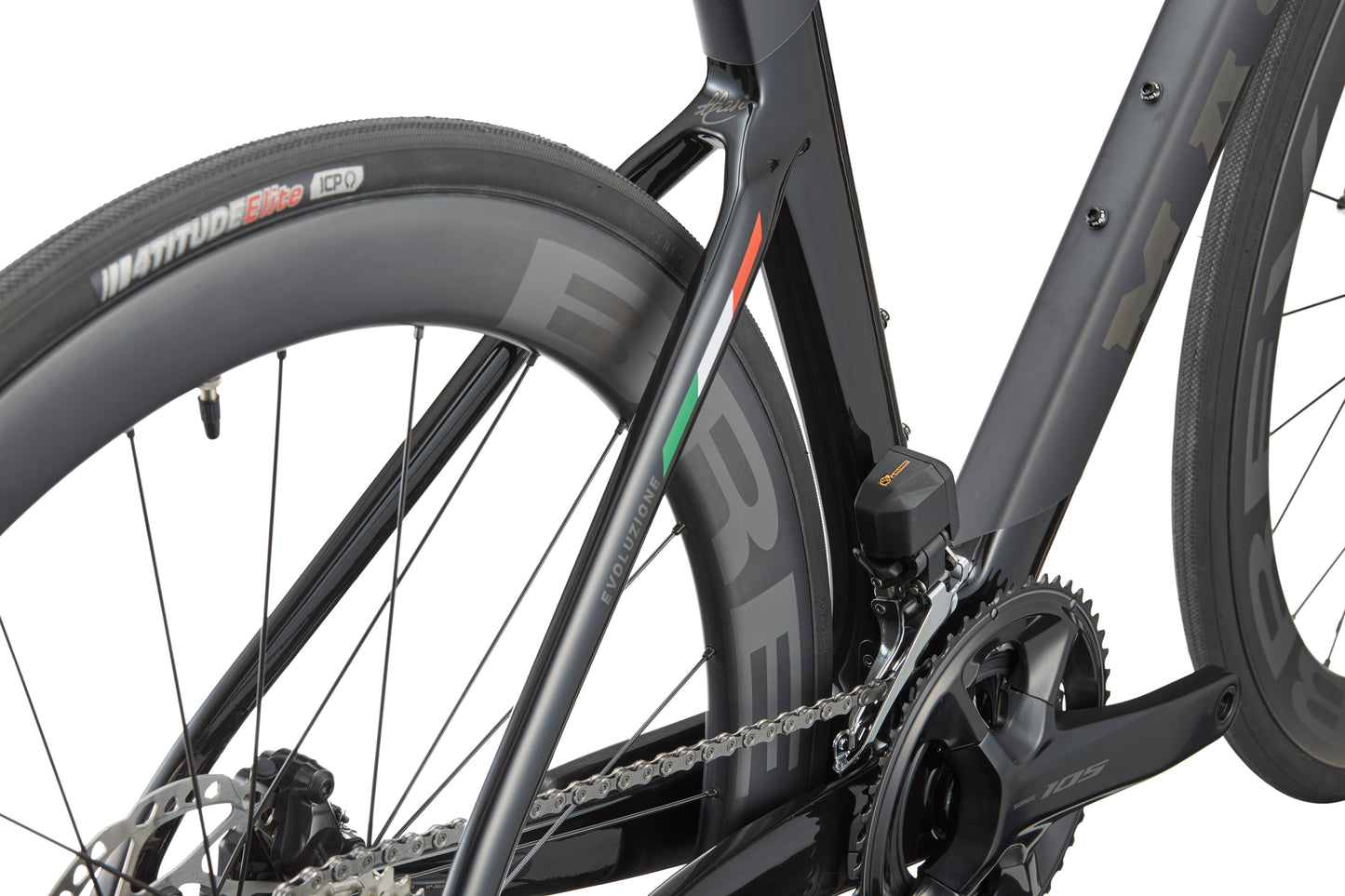

Front DerailleurShimano FD-R7150​

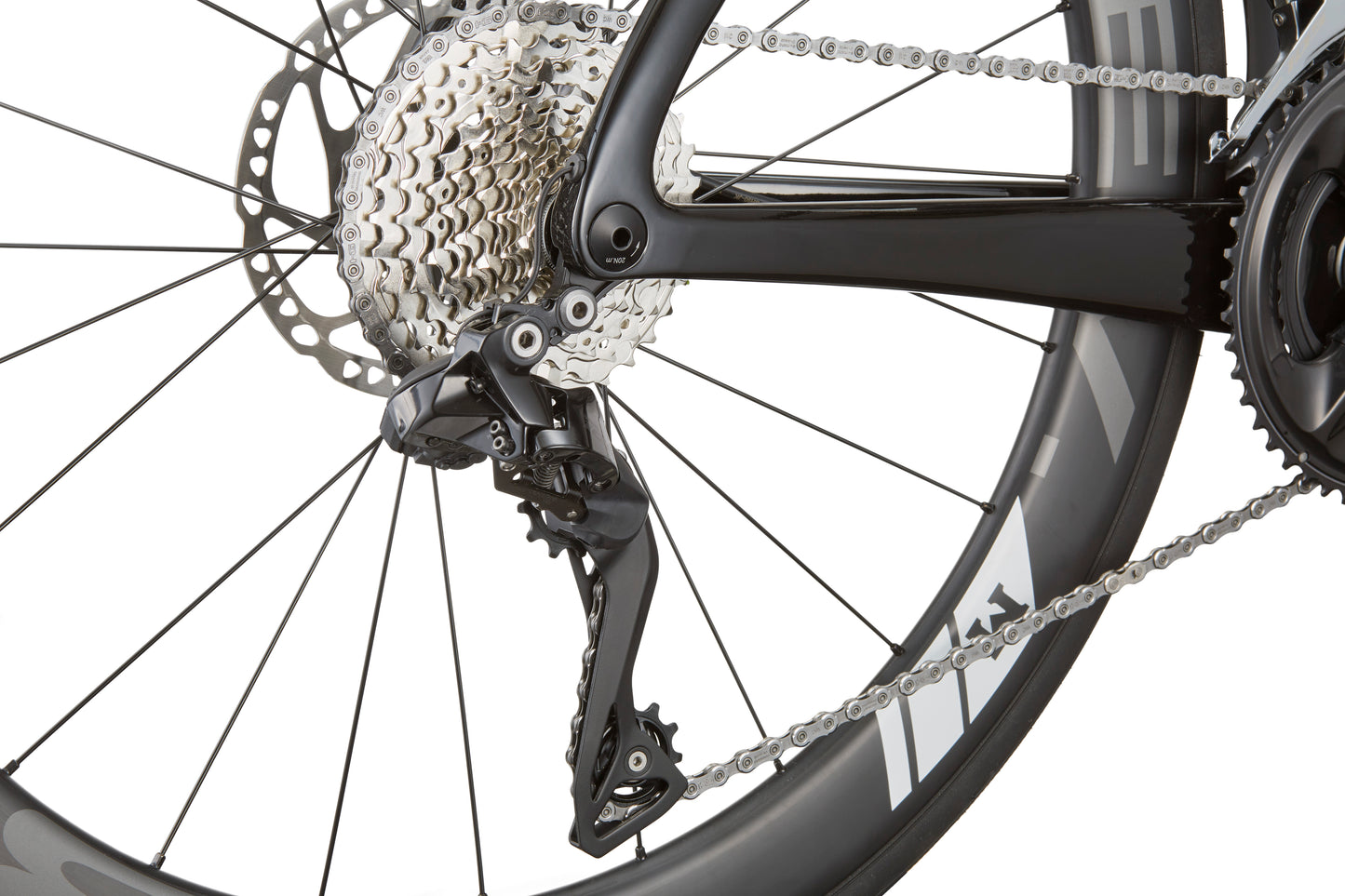

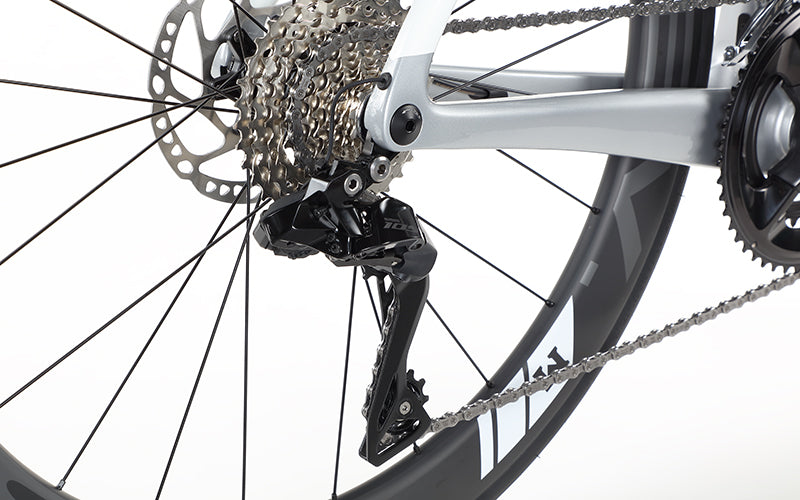

Rear DerailleurShimano RD-R7150​
Derailleur ShifterShimano ST-R7170​
Freewheel/CassetteShimano CS-HG71012, 11-36T​
WHEELS

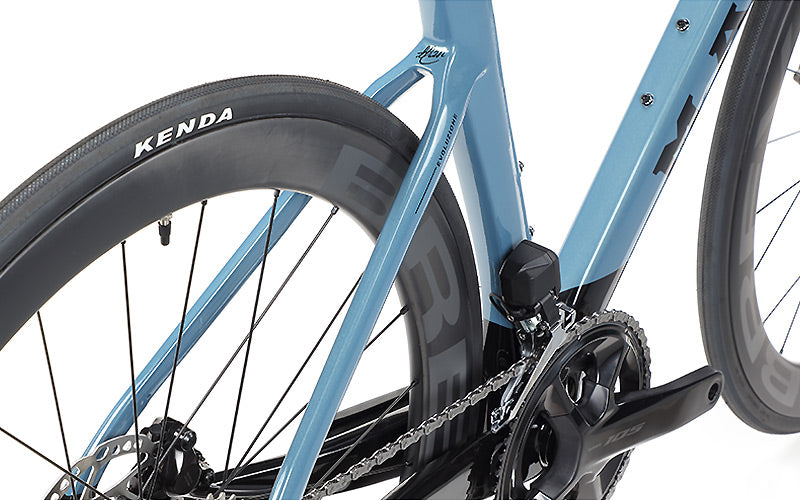

TiresKenda 4TITUDE, K1225, 700x28c​
Wheels/RimsBrev M. Carbon Rim, 50mm rim depth
HubsKT 12X100MM, THRU AXLE, CENTER LOCK DISC, 24H​ 12X142MM, THRU AXLE, CENTER LOCK DISC, 24H​
BRAKING SYSTEM

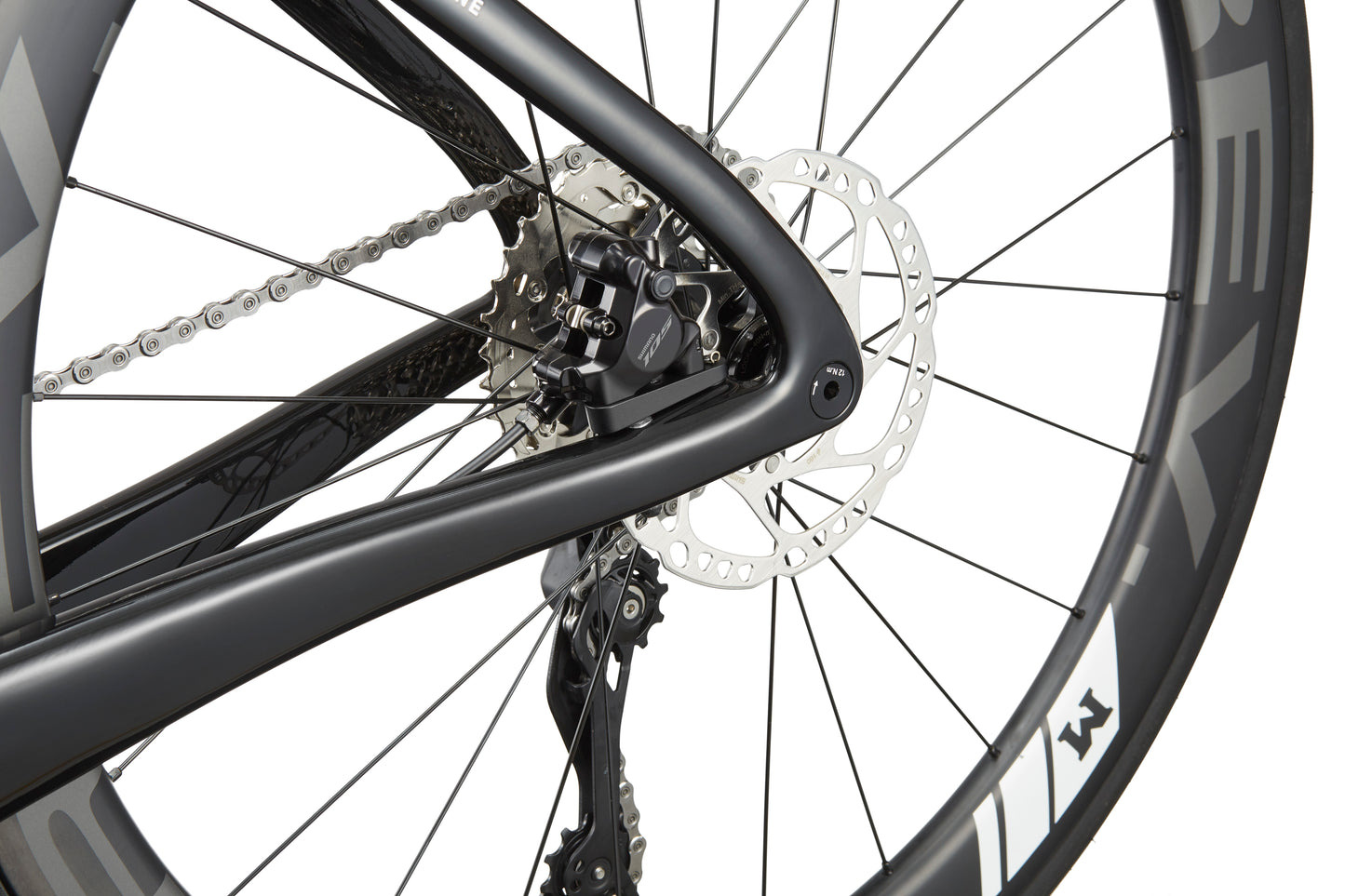

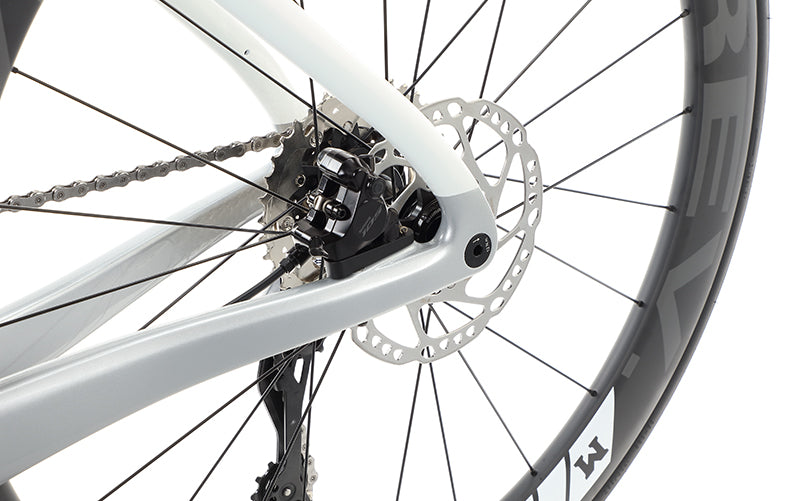

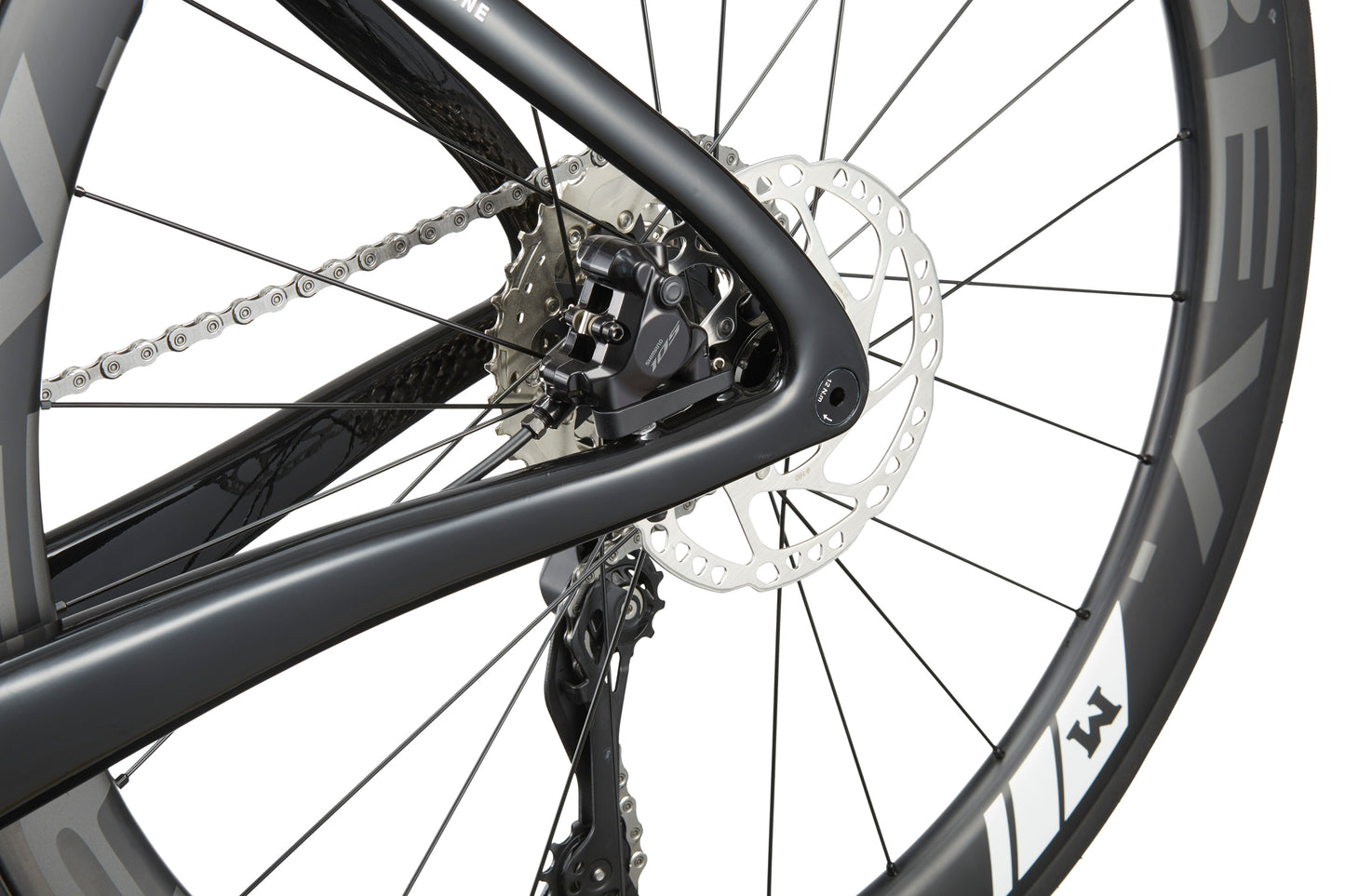

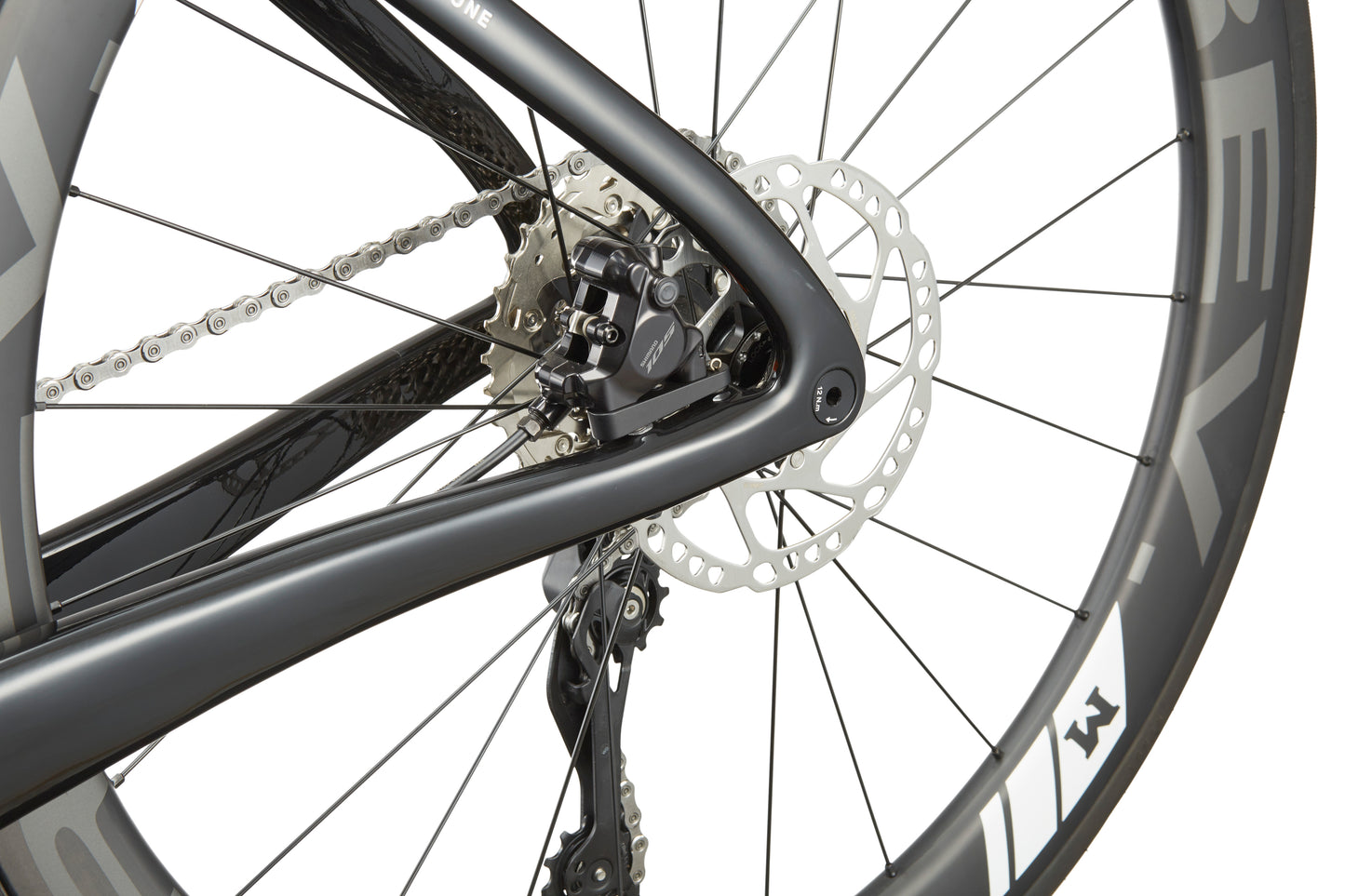

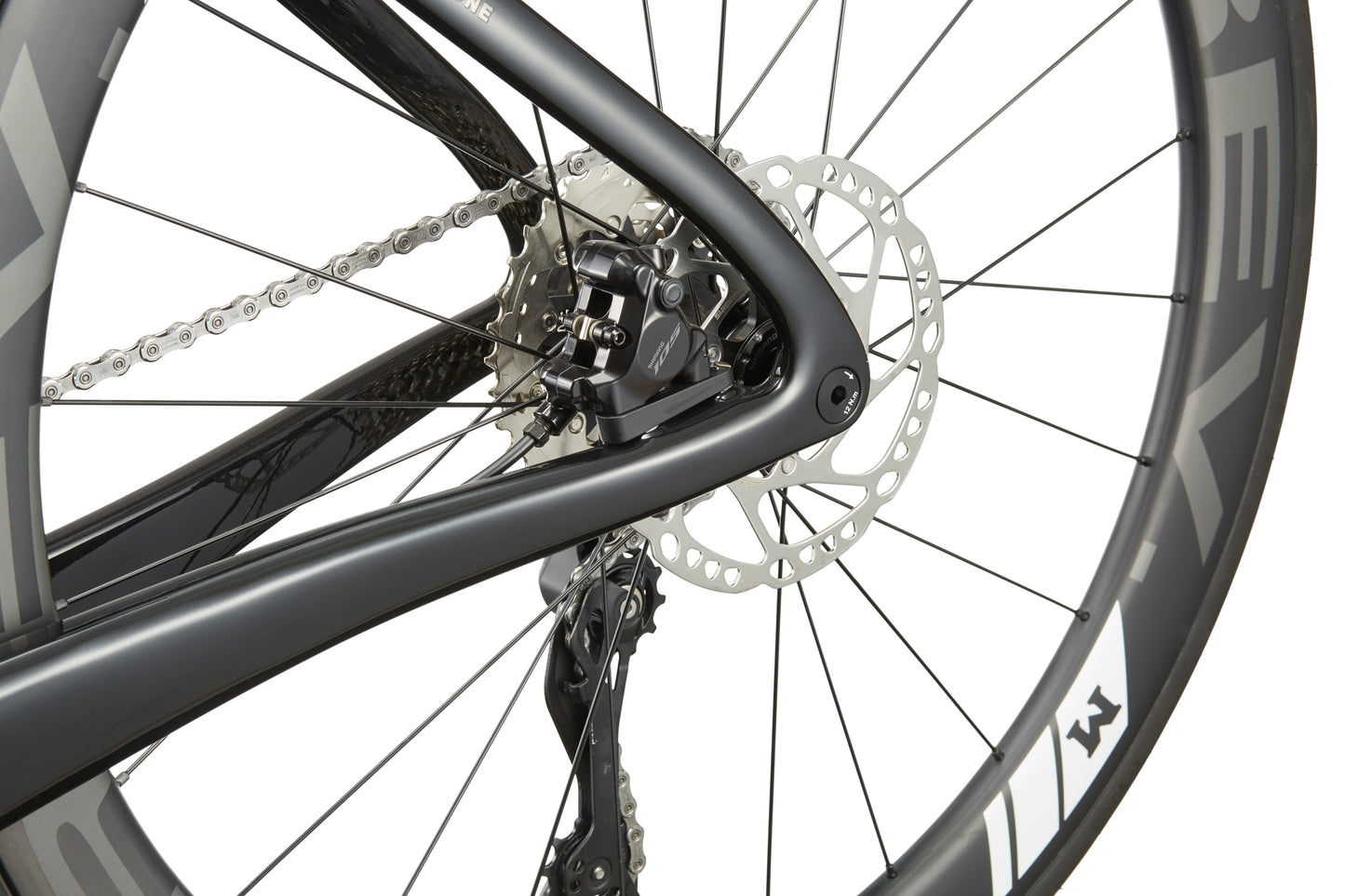

BrakesShimano BR-R7170​ / SM-RT64, 160mm​
OTHER COMPONENTS
Grips/Tape

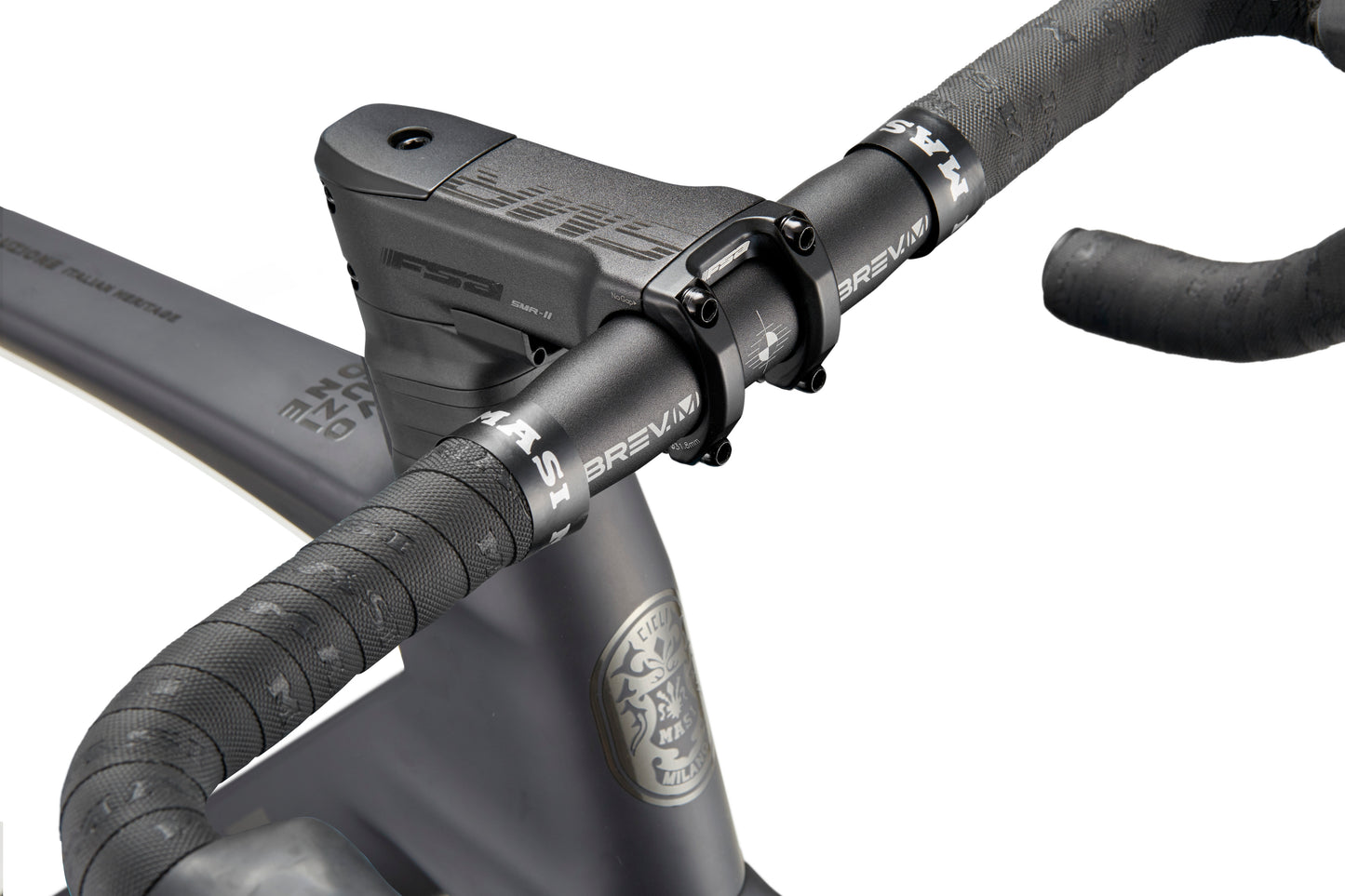

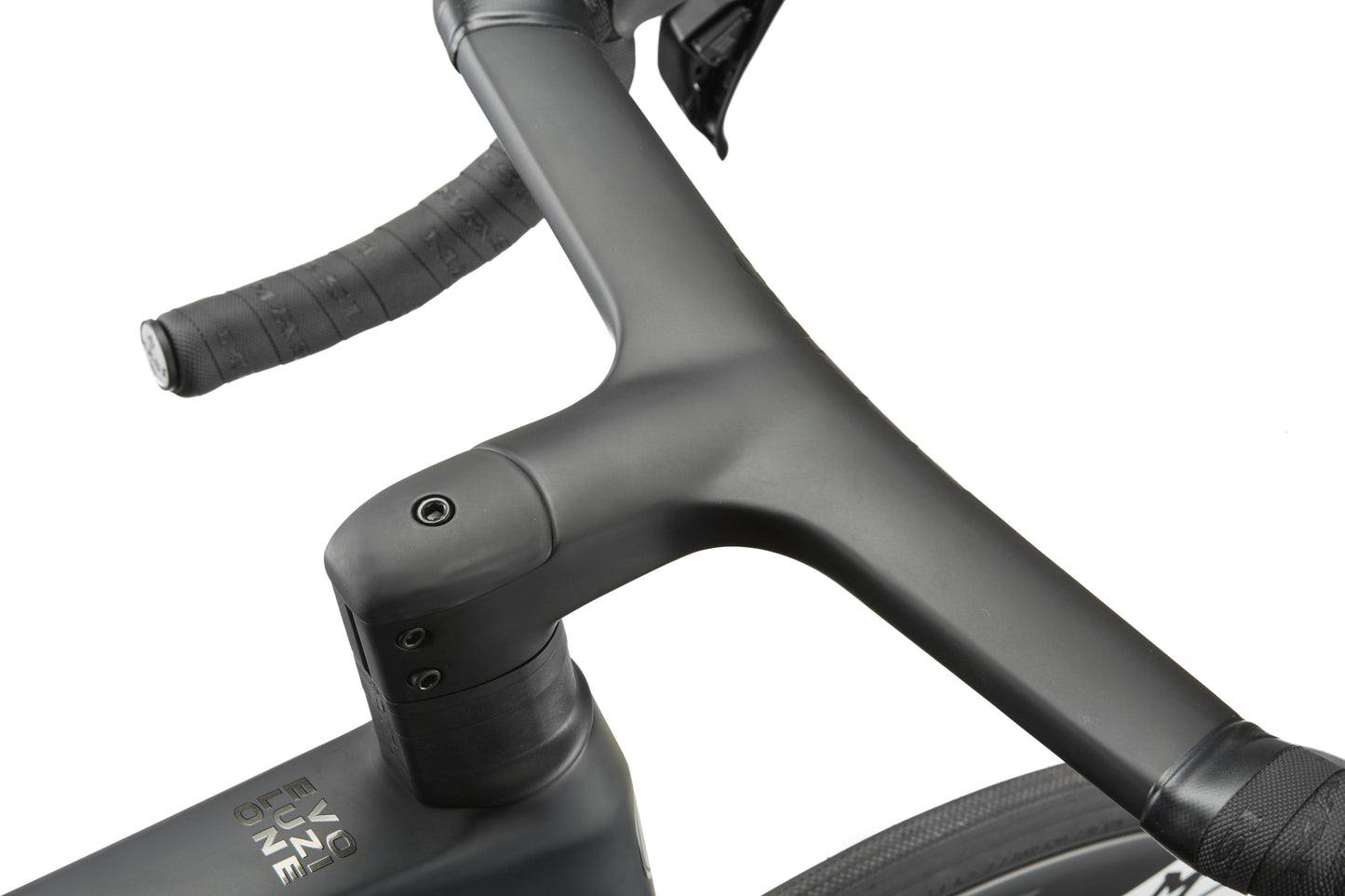

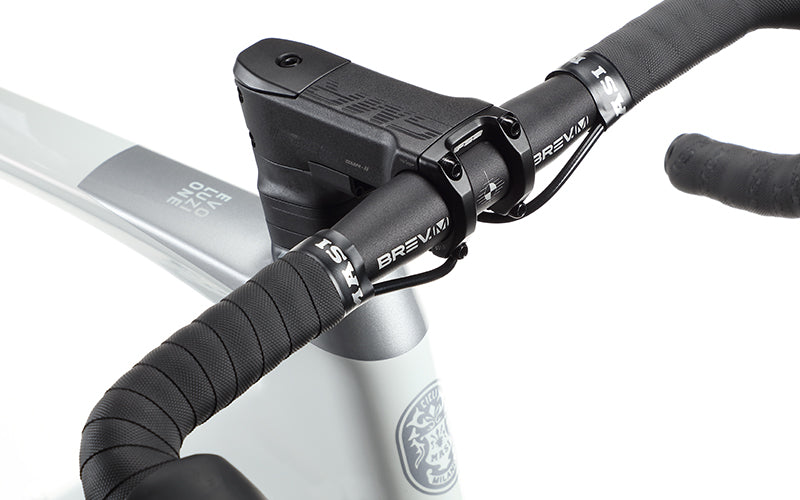

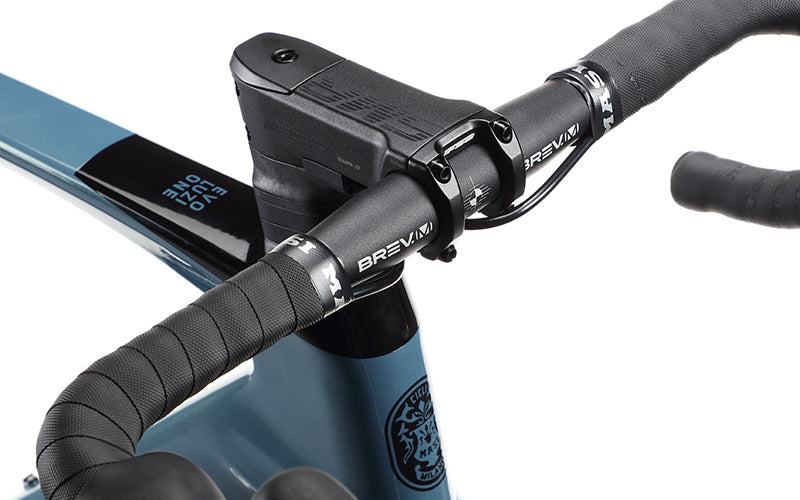

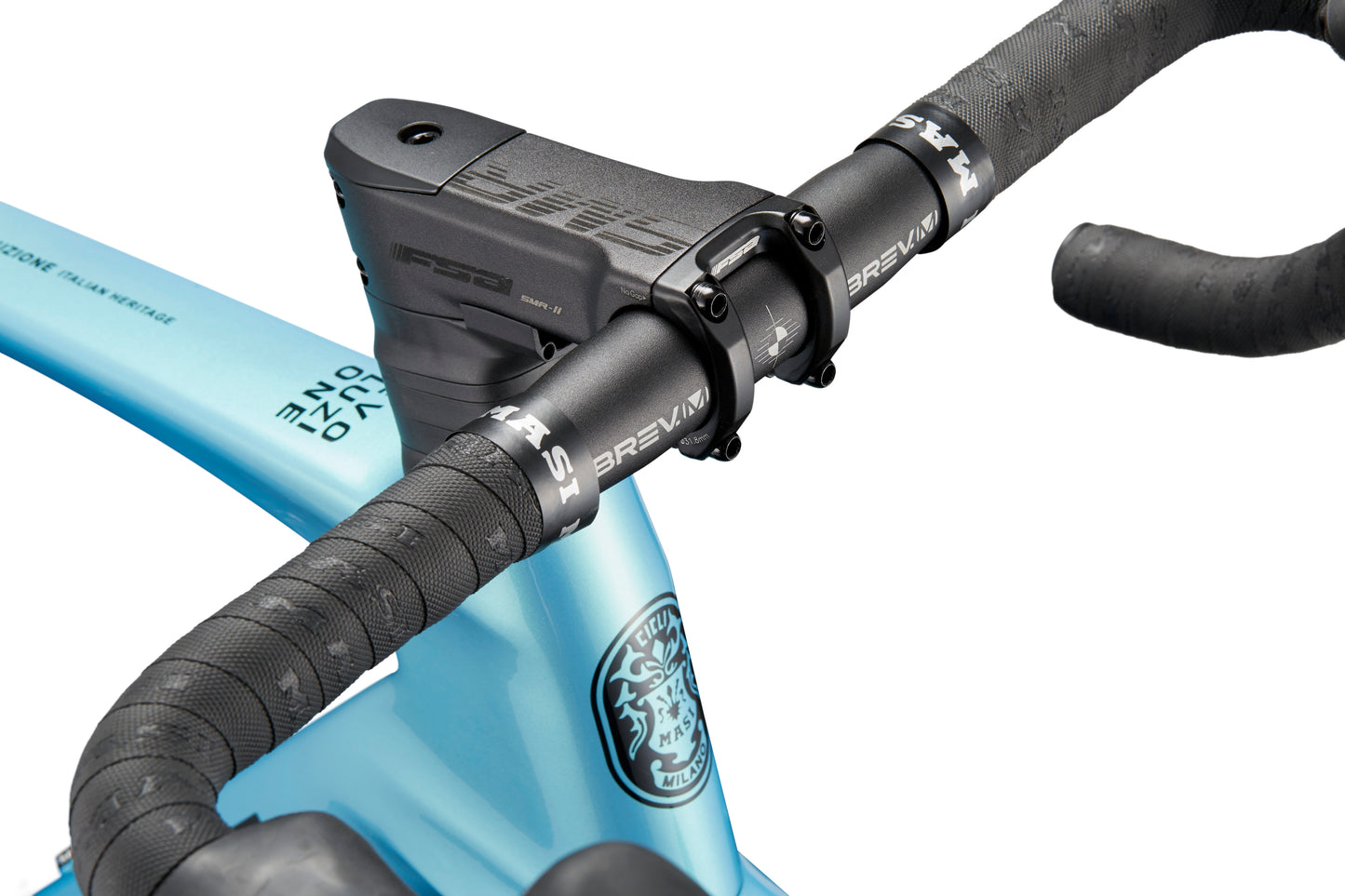

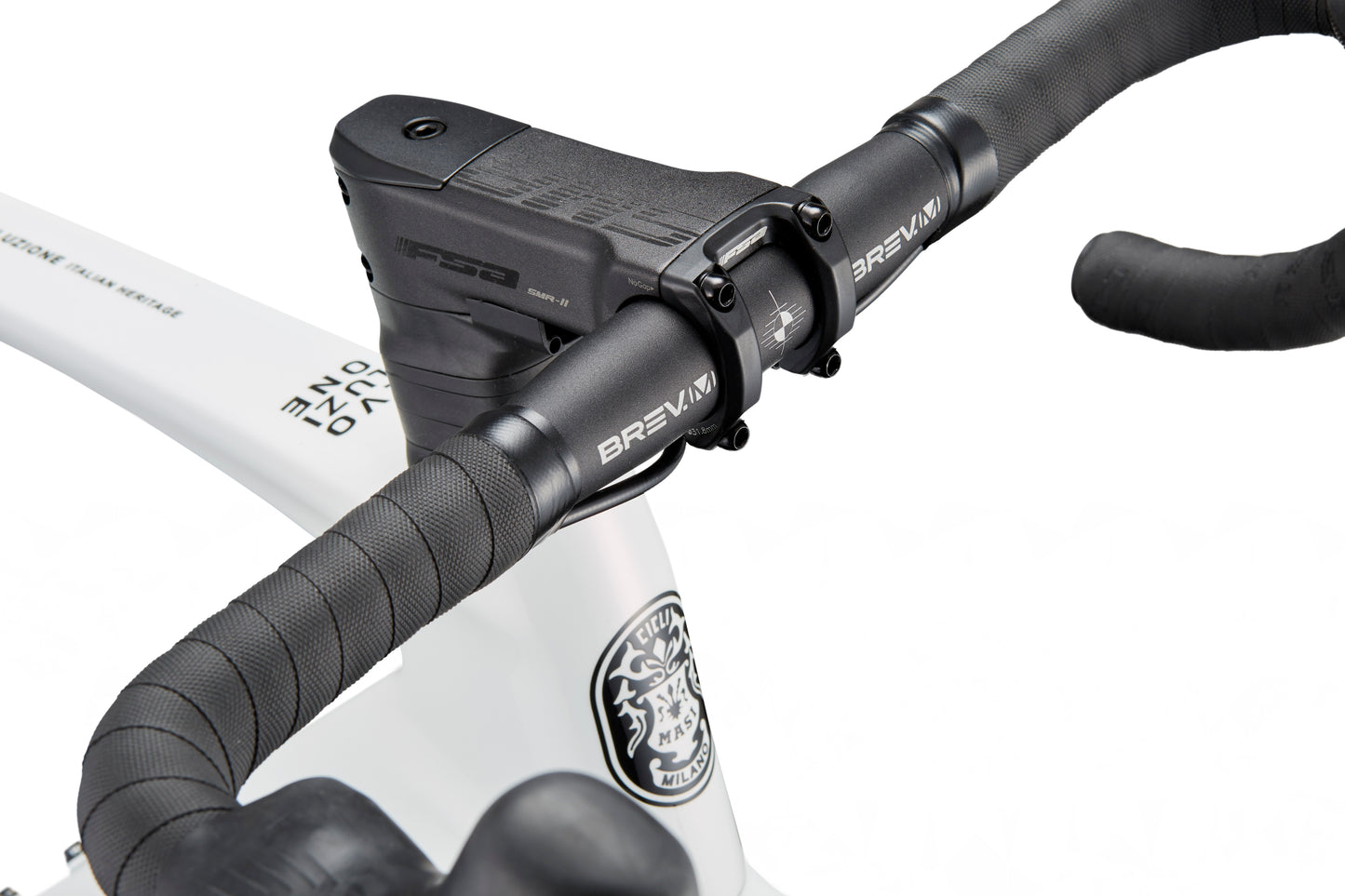

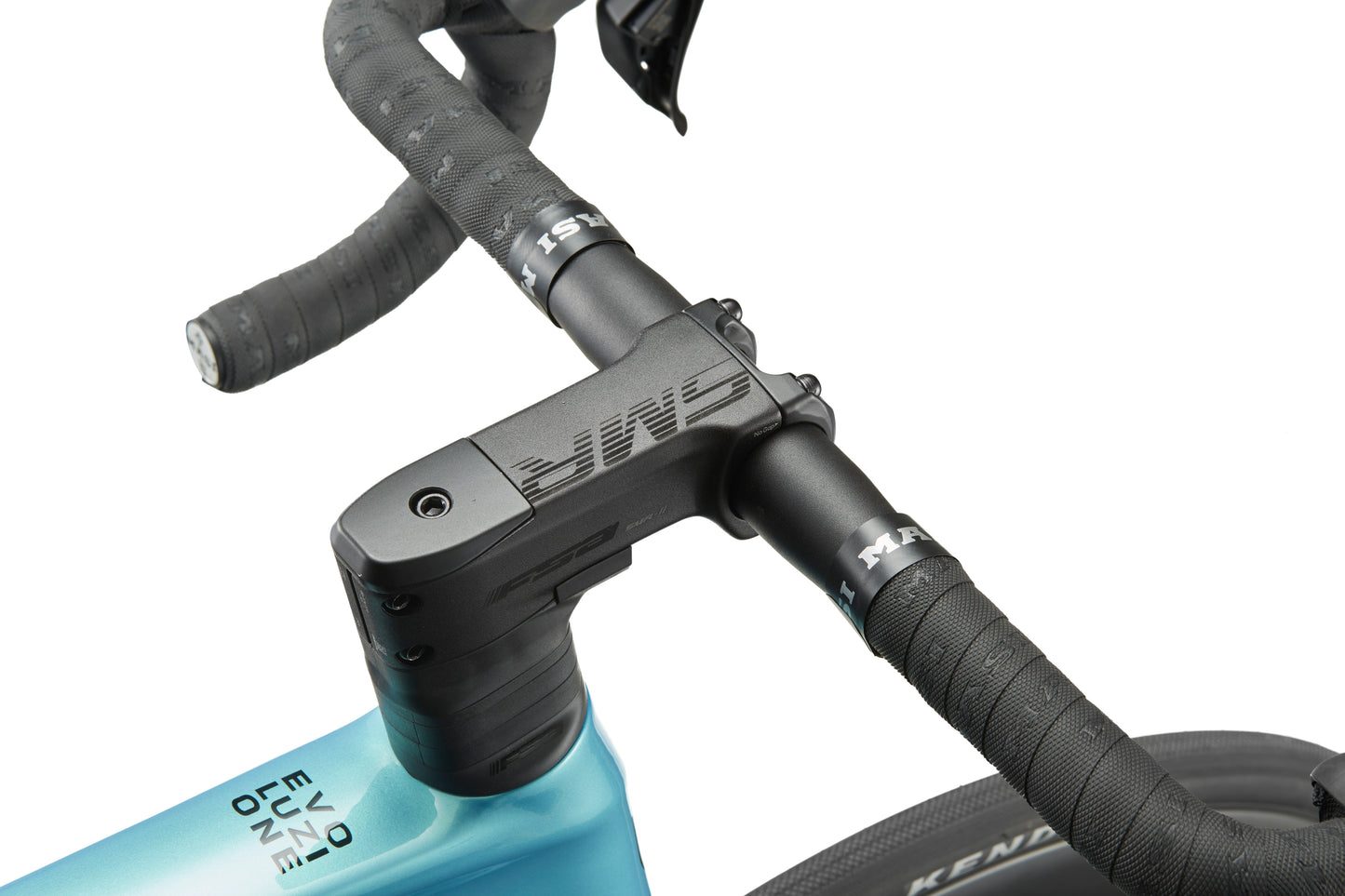

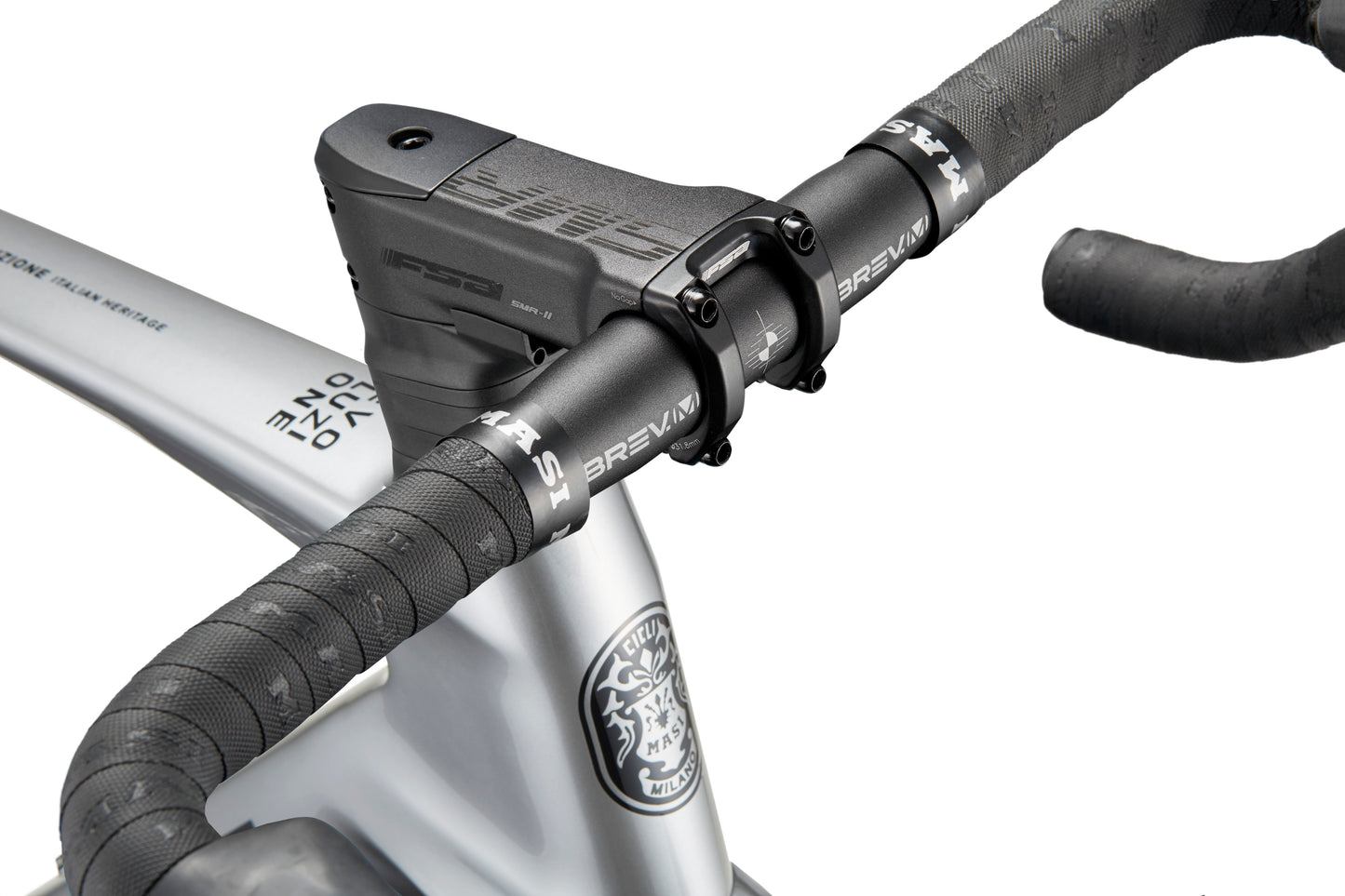

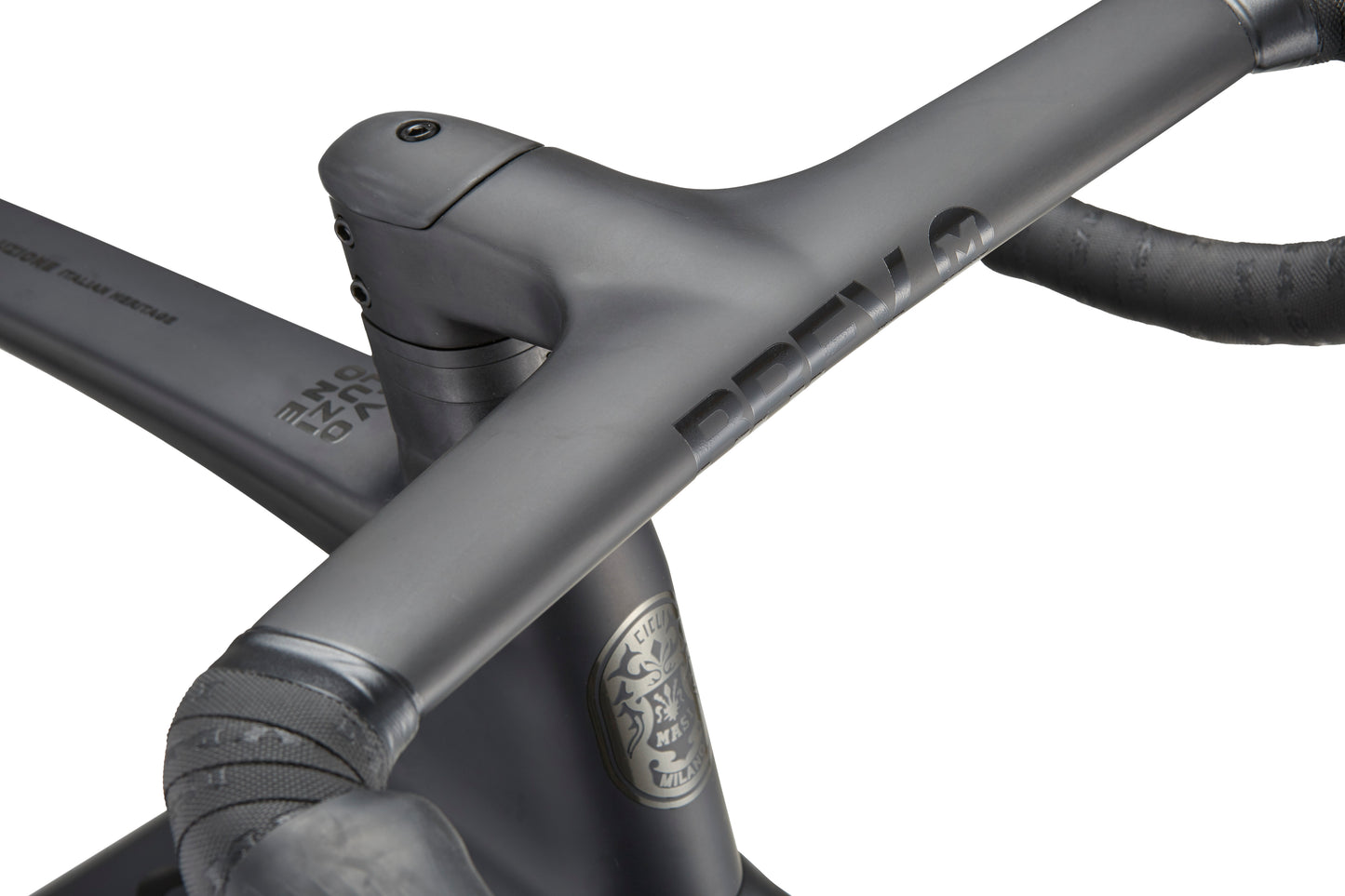

HandlebarBrev M., Ø31.8mm / Black ​

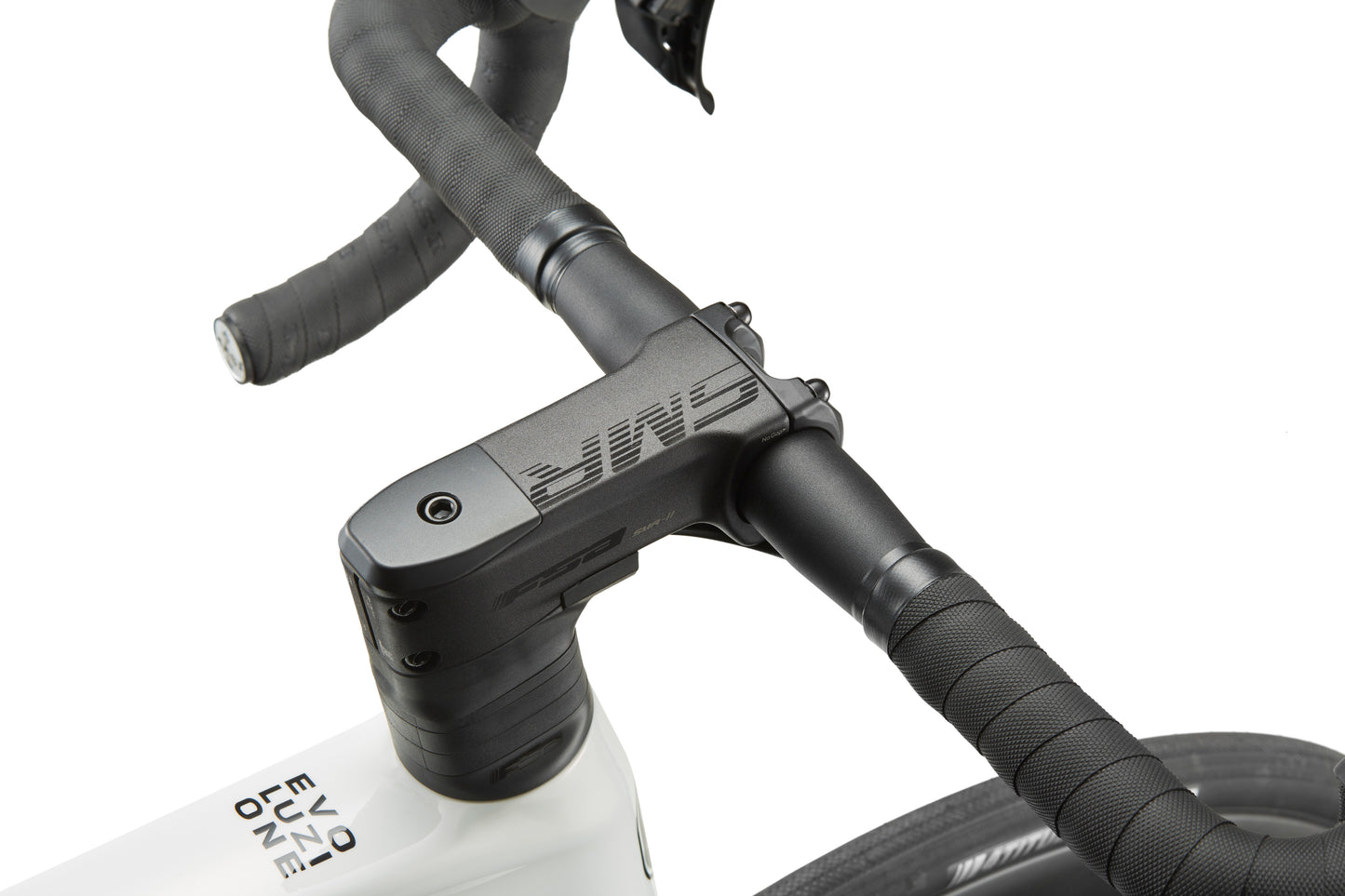

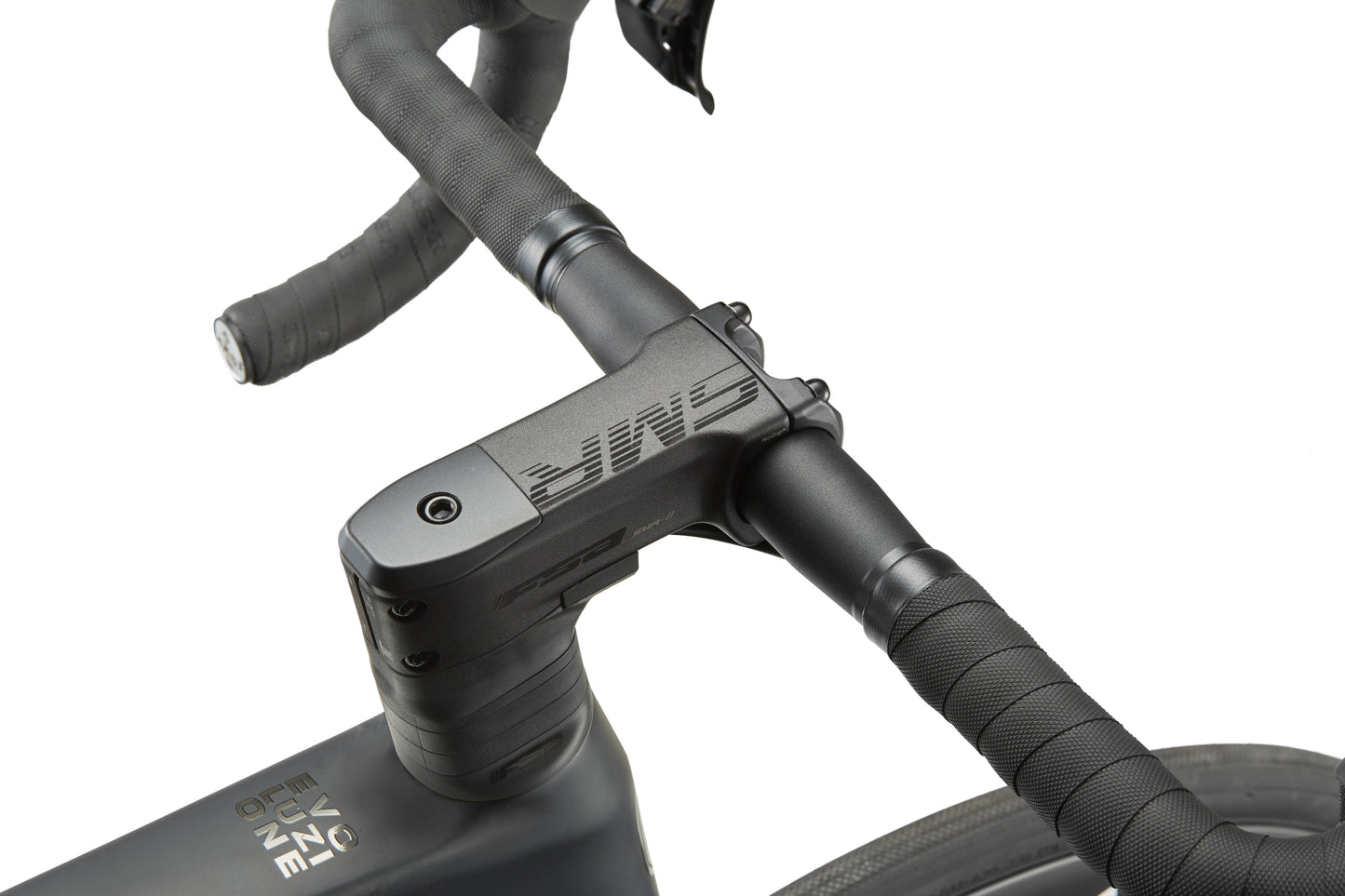

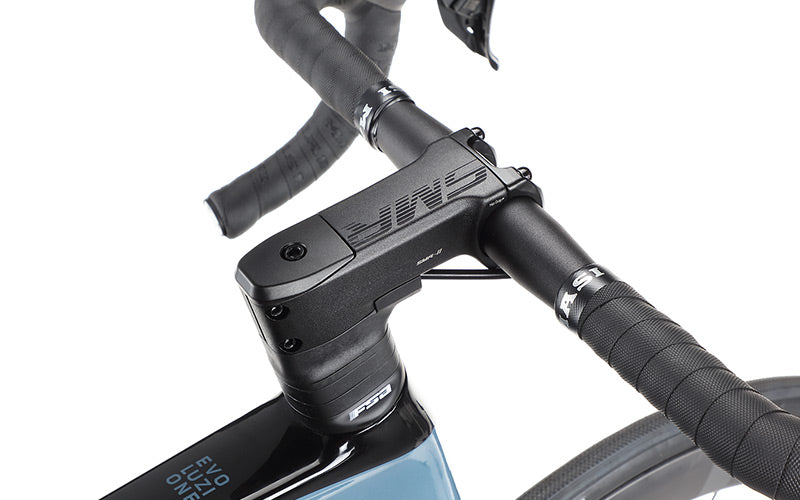

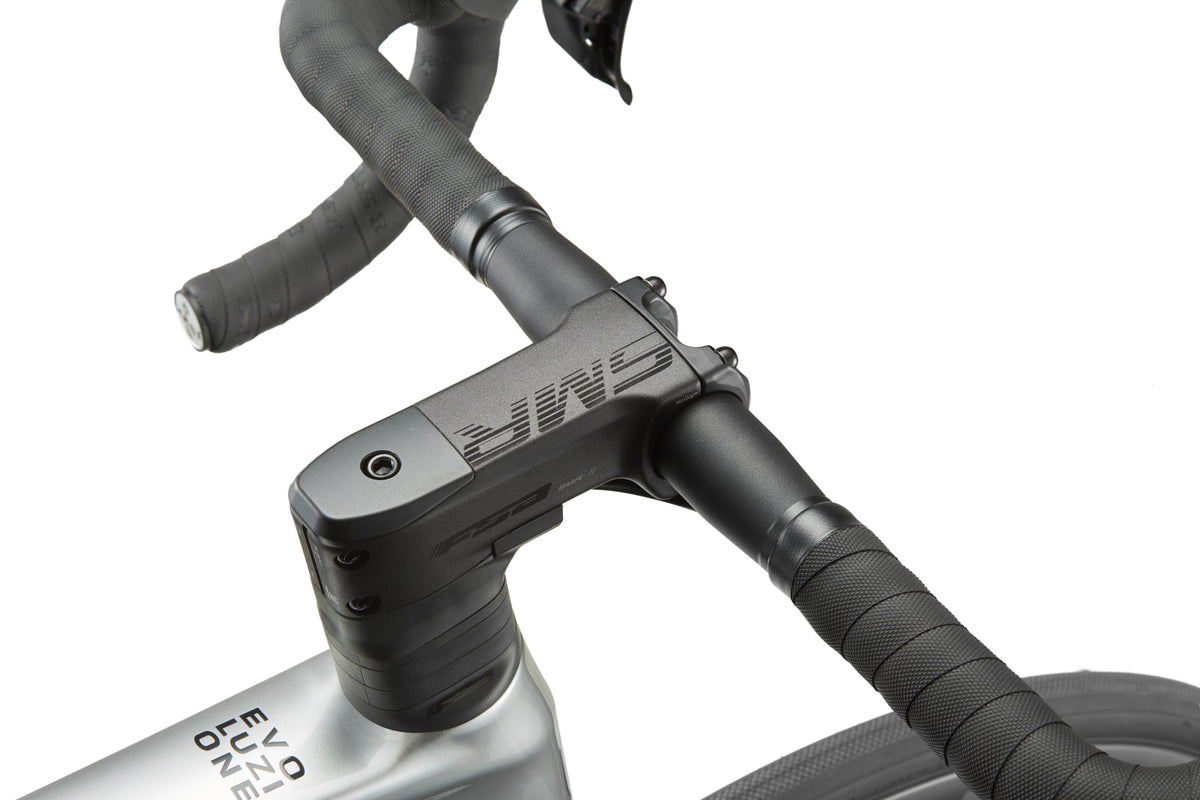

StemFSA ST-OS-174/SMR II, 31.8mm / -10° / SB Black​ ST-OS-185/SMR, 31.8mm / -6° for Length 110mm
Headset

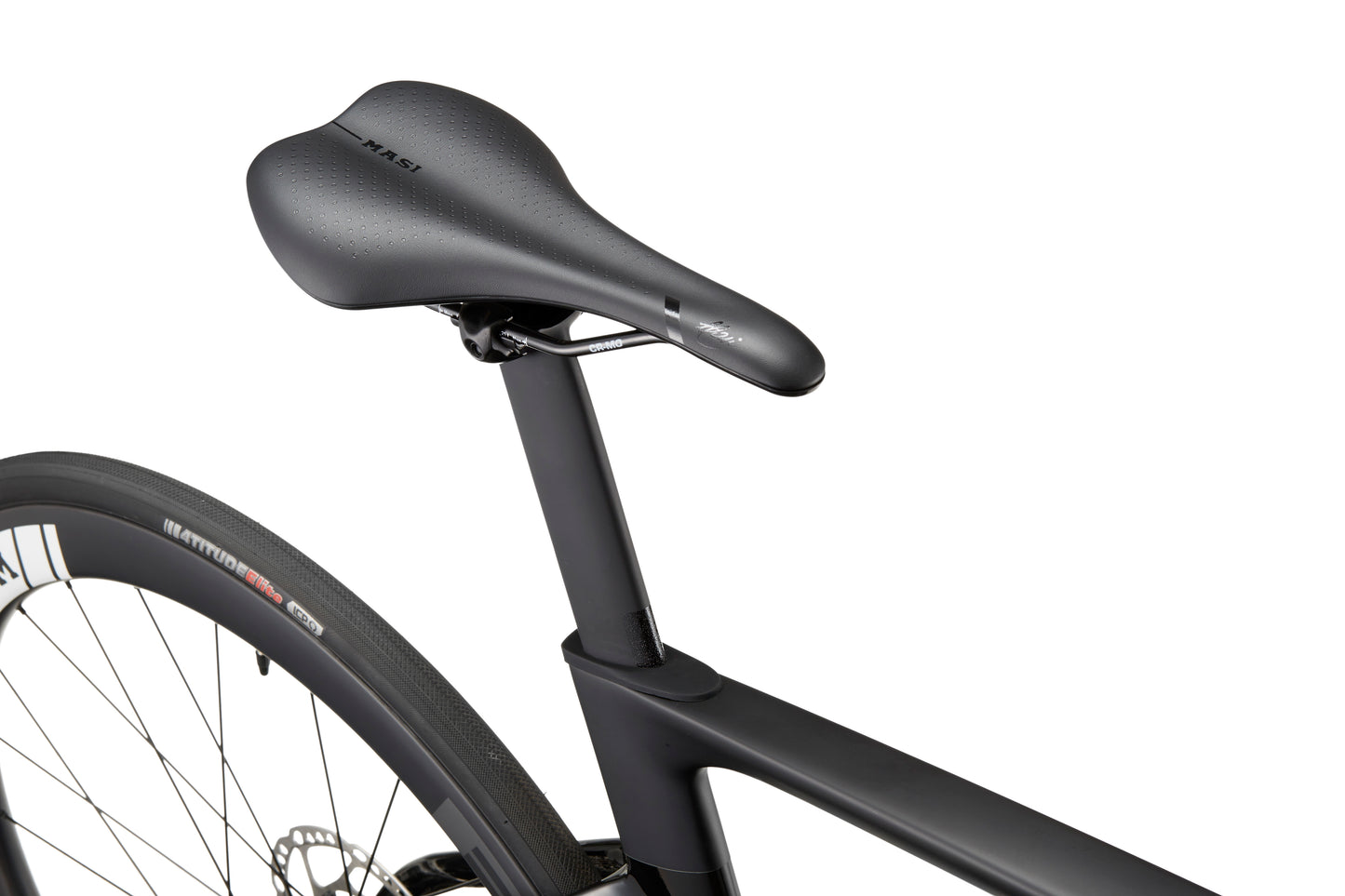

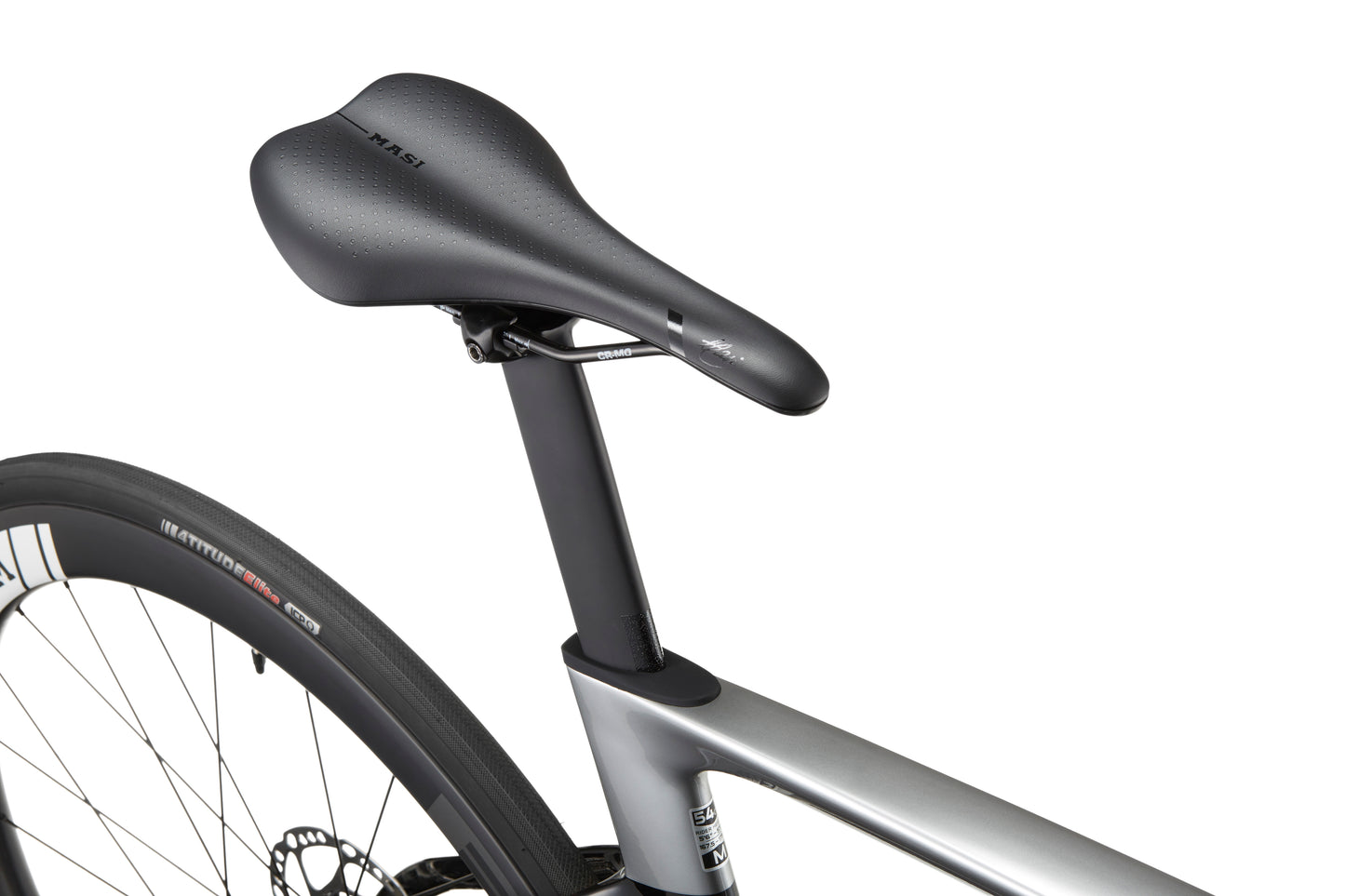

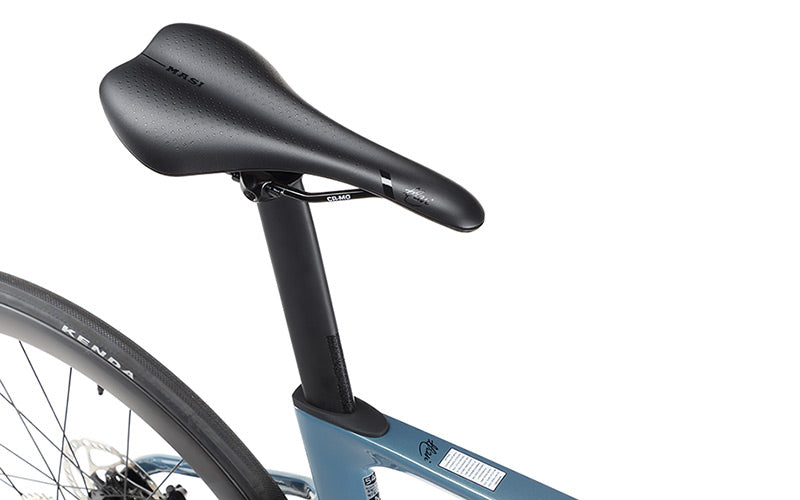

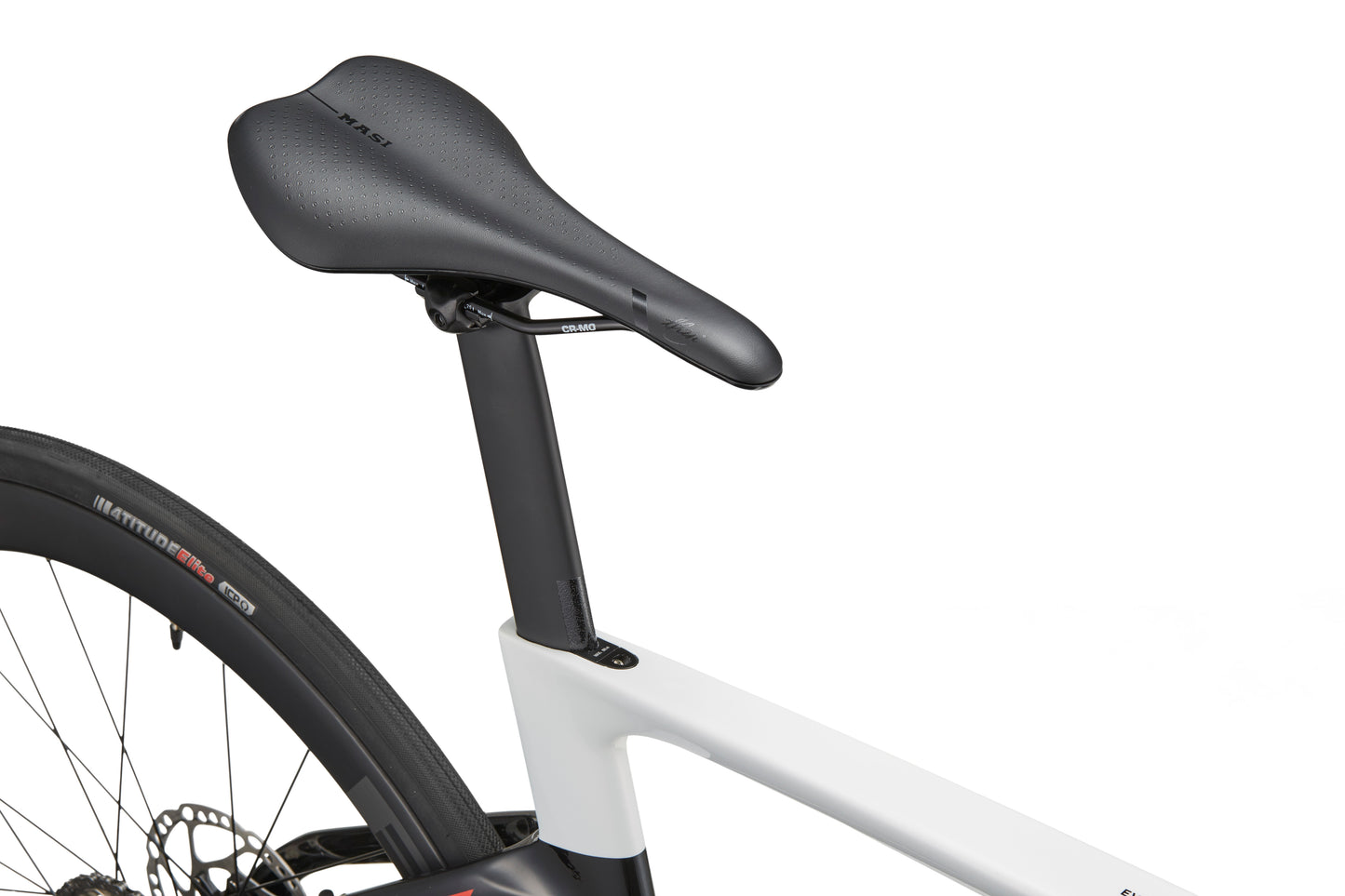

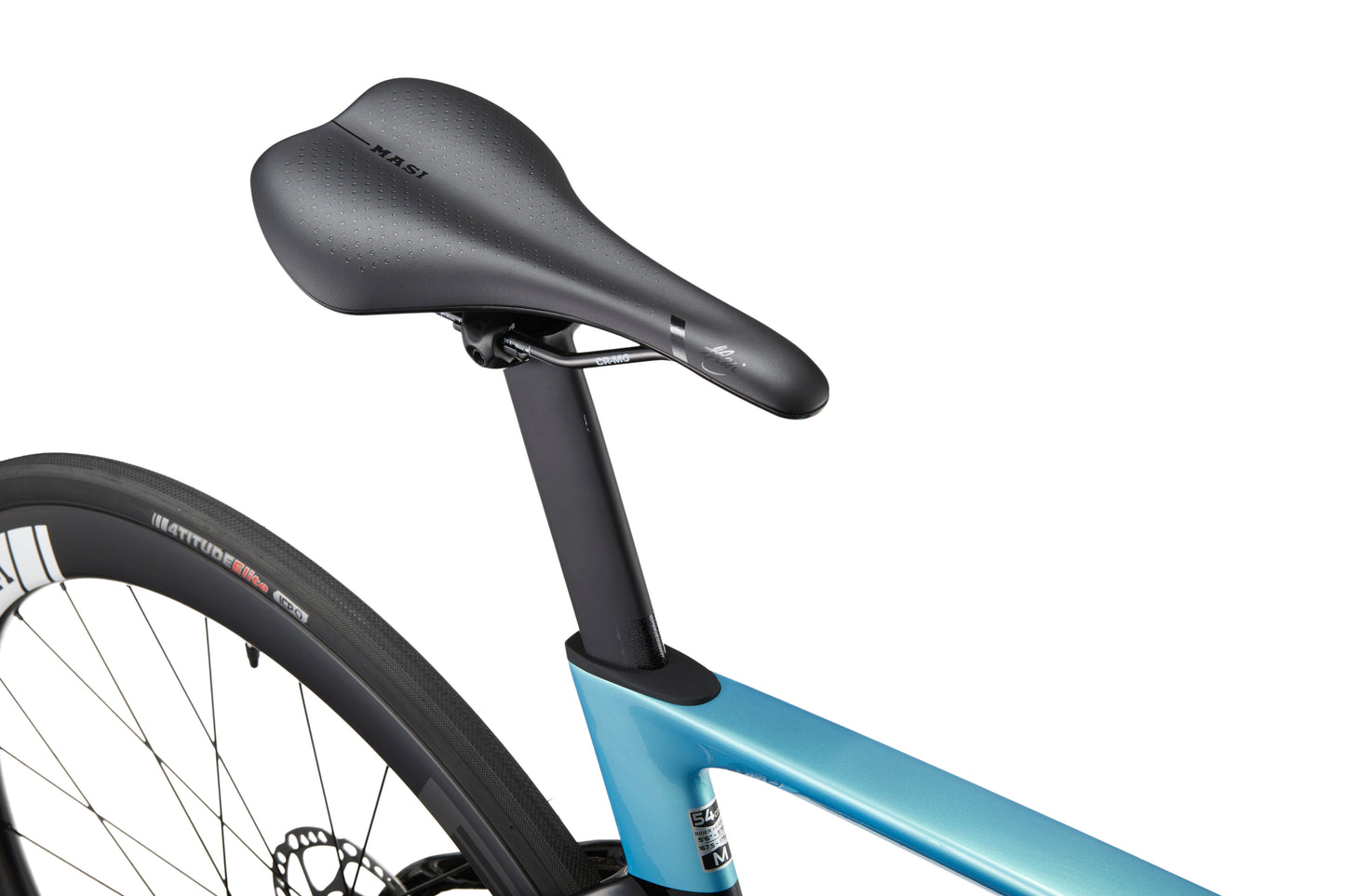

SaddleMasi 280 x 139mm, Ti-Alloy Rail​
Seat PostMasi Aero Carbon​

GEOMETRY

SIZE4952545658
A. Top Tube (Effective)511mm529mm541mm560mm585mm
B. Seat Tube (C-T)460mm480mm495mm520mm540mm
C. Stack Height514mm527mm548mm568mm592mm
D. Reach373mm378mm384mm392mm404mm
E. Standover750mm768mm786mm808mm829mm
F. Head Tube Length105mm115mm135mm155mm180mm
G. Head Angle71.5°72.5°73°73.5°73.5°
H. Seat Angle75°74°73°73.5°73°
I. Wheel Base968mm968mm976mm990mm1009mm
J. Chainstay406mm406mm406mm410mm410mm
K. BB Drop72mm72mm72mm72mm72mm
L. Fork Offset45mm45mm45mm45mm45mm
M. Stem Length
N. Bar Width
O. Crank Length
P. Wheel Size700700700700700
