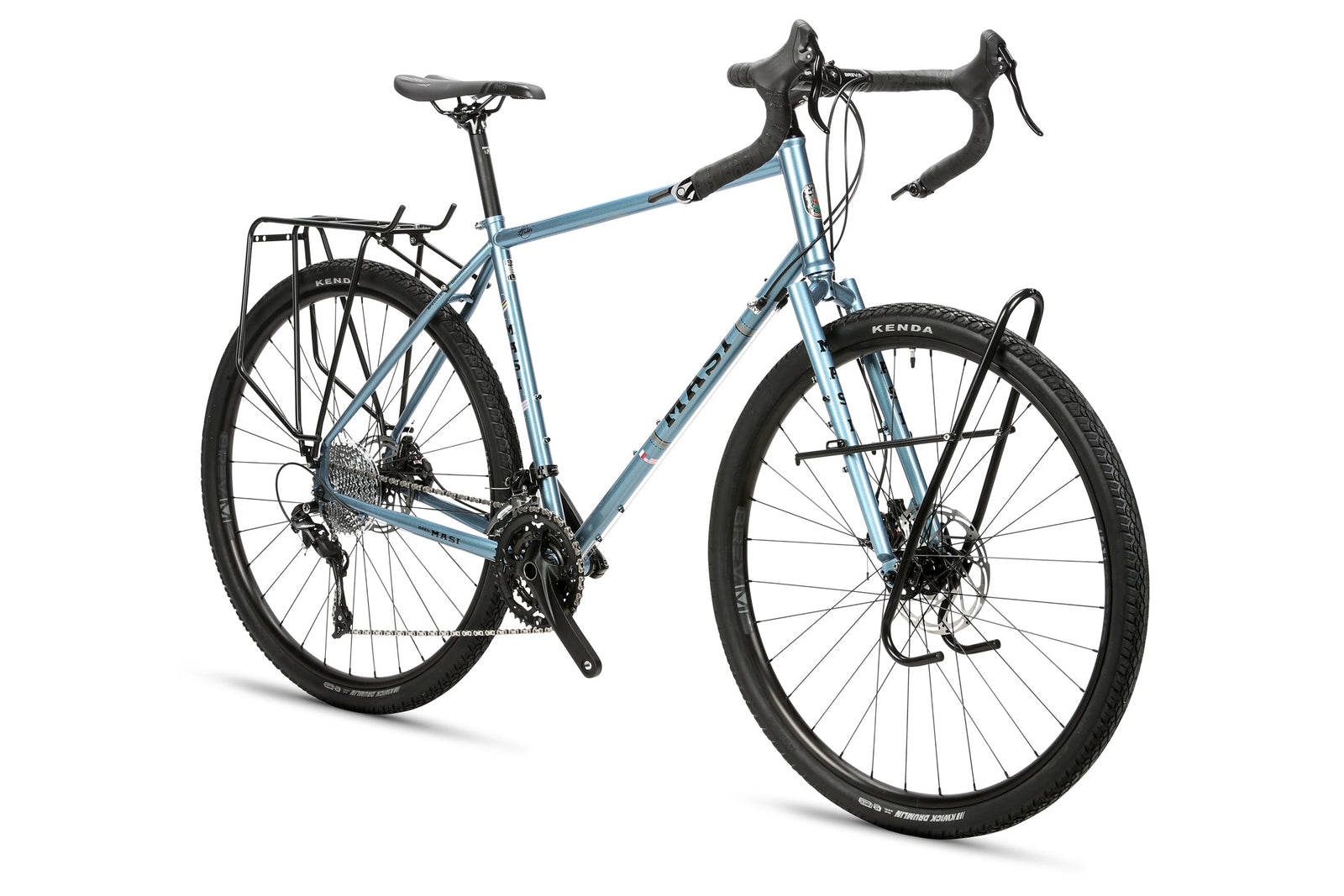

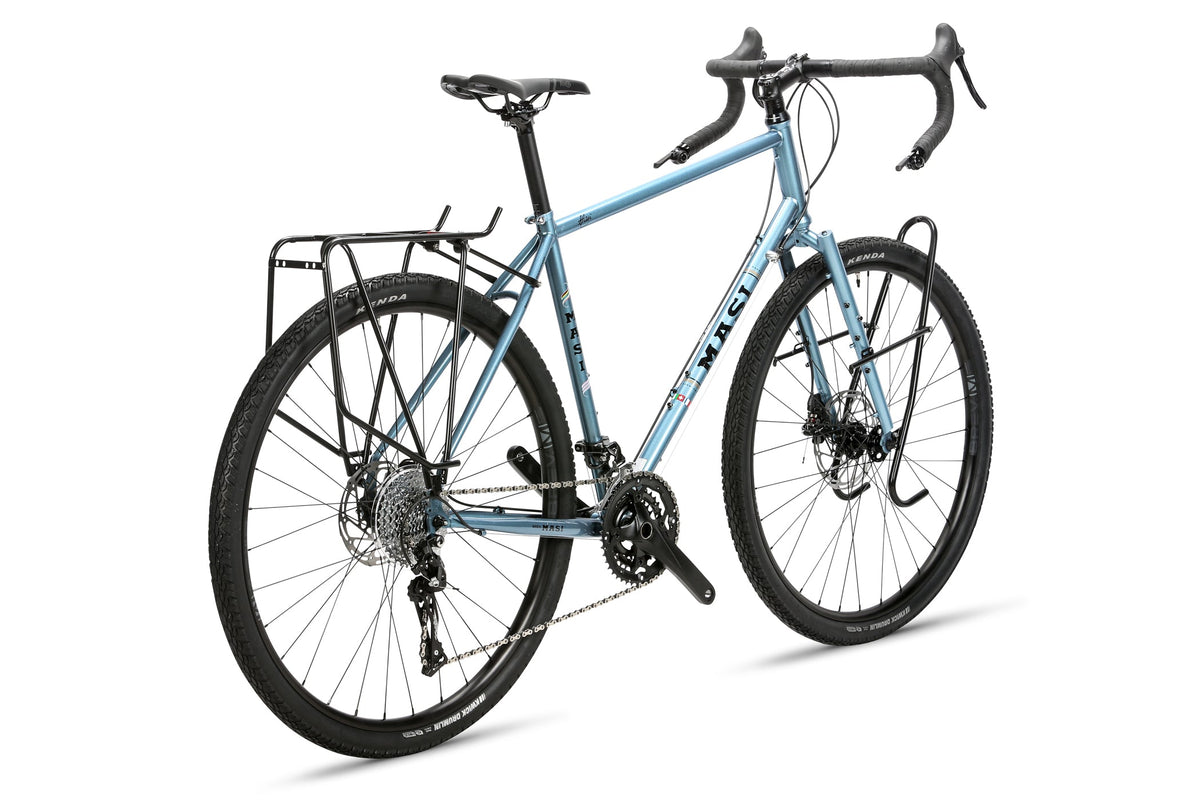

GIRAMONDO 700c
GIRAMONDO 700c
SKU: SKU:42481
You can't choose your own adventure if your bike doesn't have your back. No worries with the Giramondo; your road-ready companion for long days and heavy loads. From its relaxed modern touring geometry, Tubus low-rider Tara front rack, and Tubus Cargo rear rack, there is a wealth of practical and intelligent options for the most adventurous days in the saddle.
Order Inquiries: twdistributor@masibikes.com
View full detailsFEATURES
- A modern day touring bike with geometry designed for hours of comfortable riding
- Constructed from double butted, heat-treated, tig welded chromoly tubing
- Three bottle mounting locations on the main triangle & two on the fork legs mean you'll always stay hydrated
- Tire clearance up 29 x 2.0"

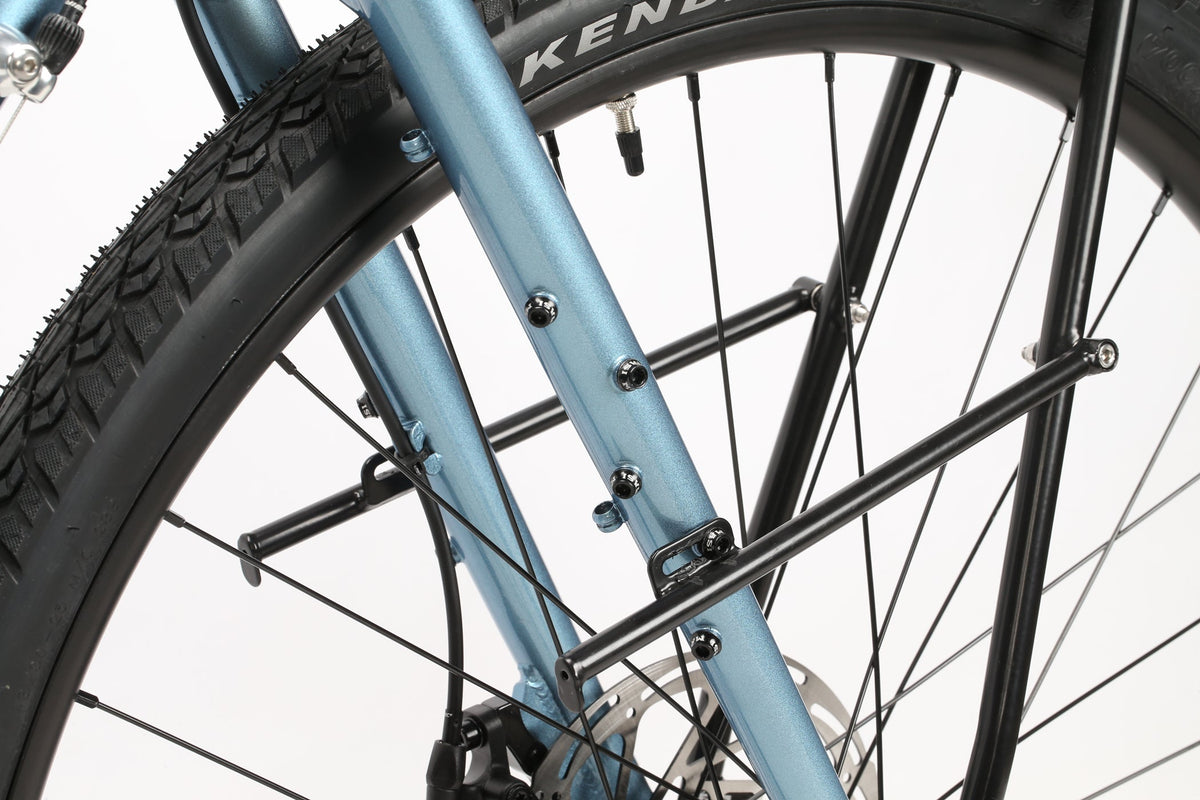

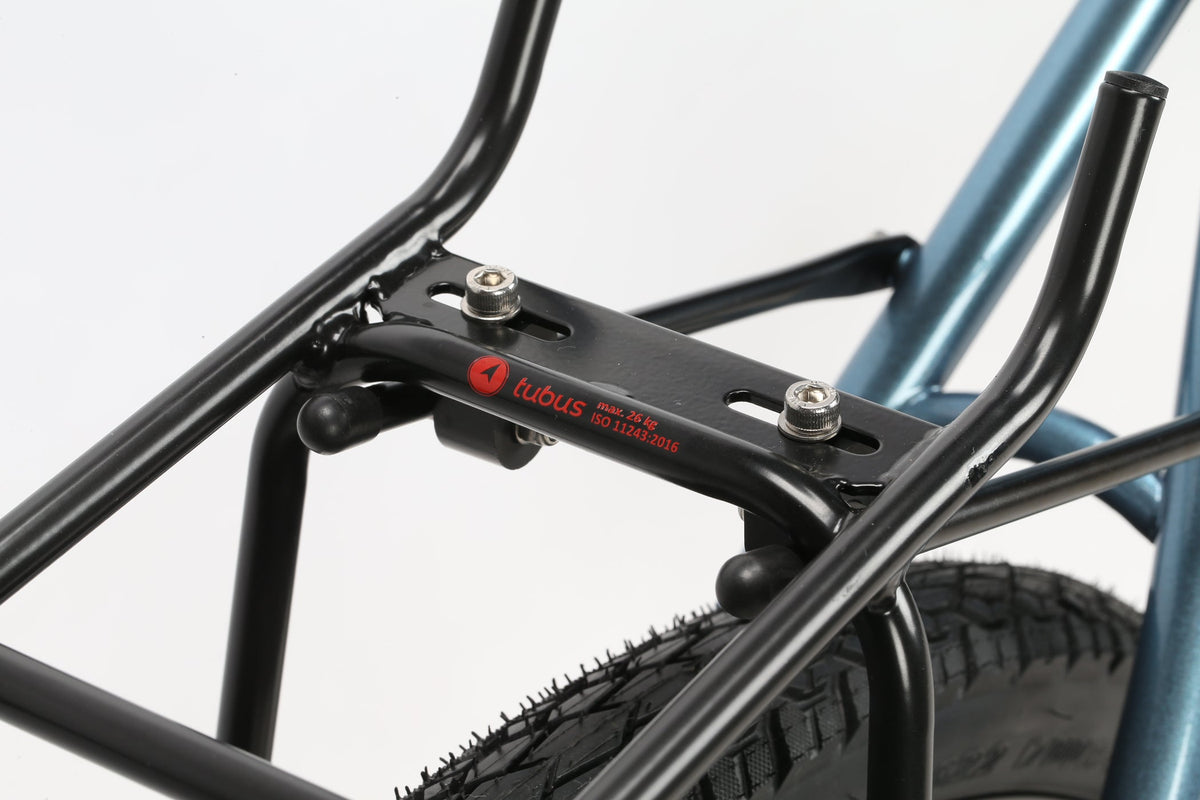

- Tubus Tara low-rider front rack & Tubus Cargo rear rack

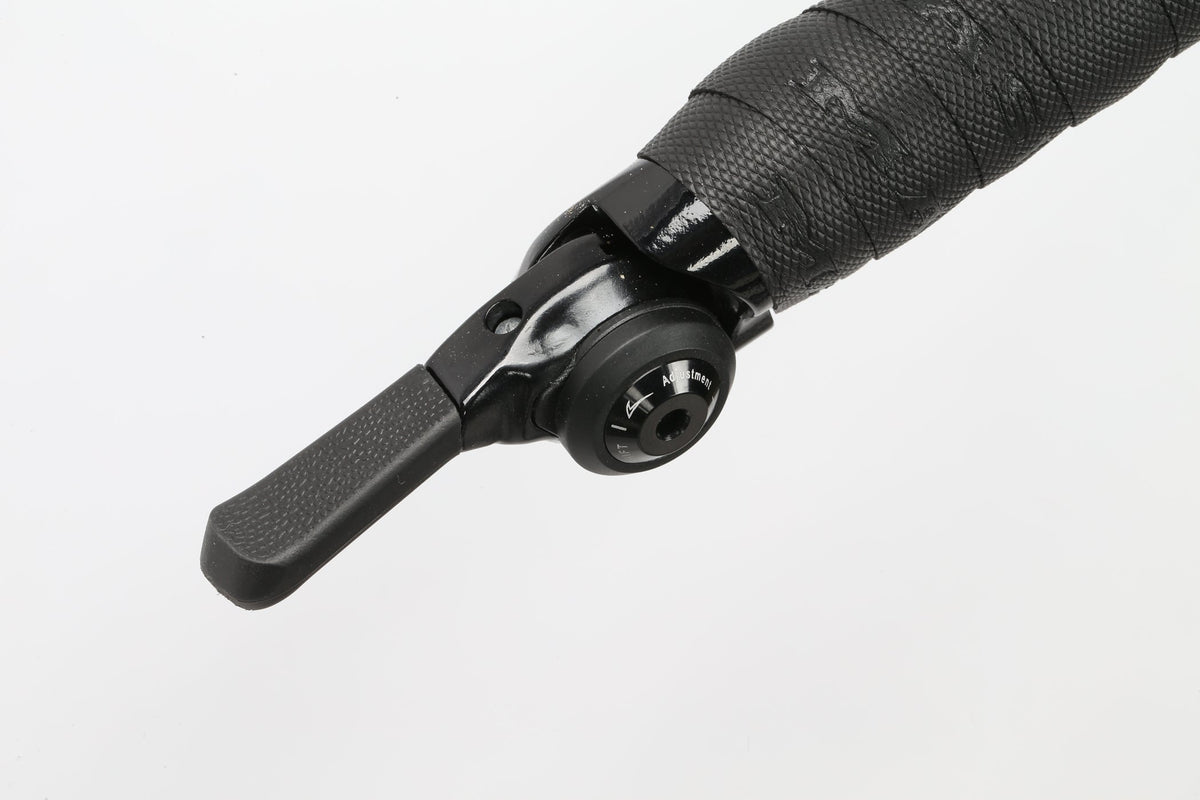

- Bar-end shifters for reliability and easy adjustment
- Tubeless compatible Brev. M 700c rims with 23mm internal width
- Selle San Marcos RnD Full-fit Start UP Wide
Collapsible content
SPECIFICATIONS
FRAMESET | |
---|---|
Frame | Giramondo adventure | Tig welded heat-treated, double-butted chromoly | 1.125" integrated head tube | 68mm BSA threaded bottom bracket | IS disc brake | QR dropouts |

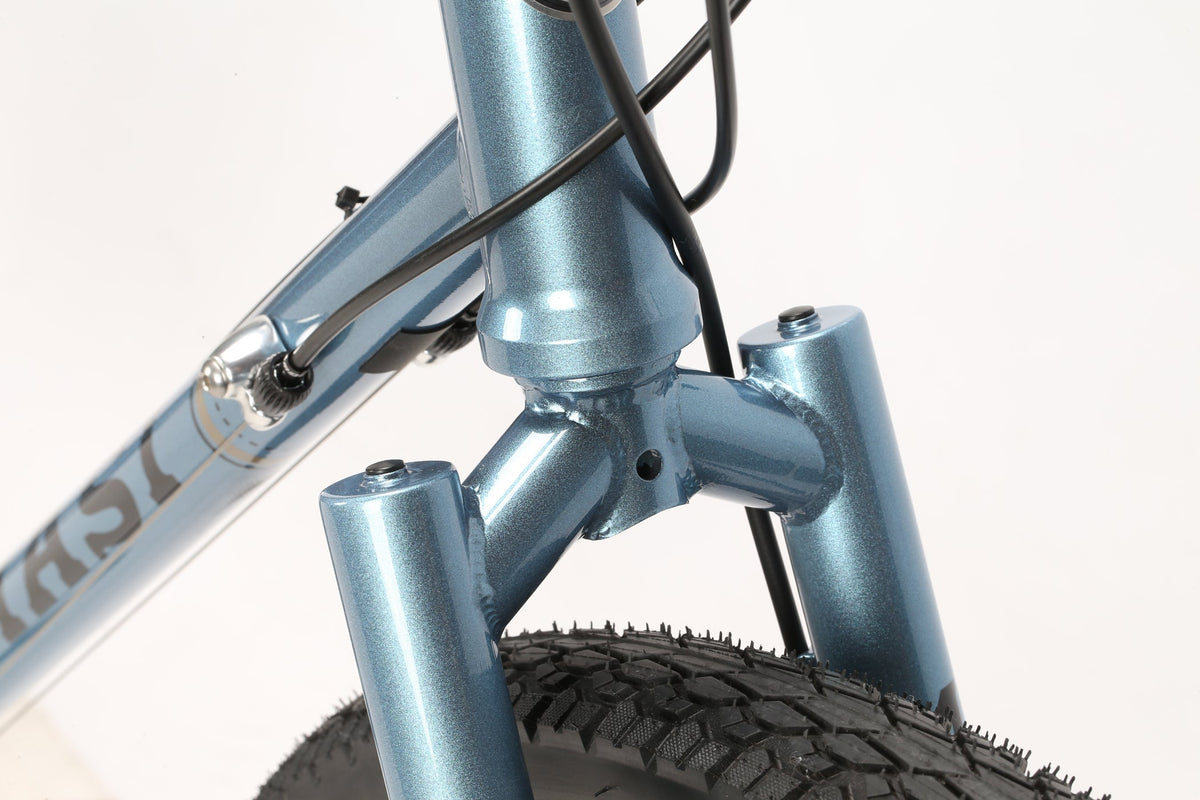

Fork | Giramondo adventure | Chromoly segmented-crown with straight blades | 1.125" steer tube | IS disc mount | Rack, fender, and bottle mounts | Dynamo wire routing | QR dropouts |
Colors | Blue Steel |
DRIVETRAIN | |

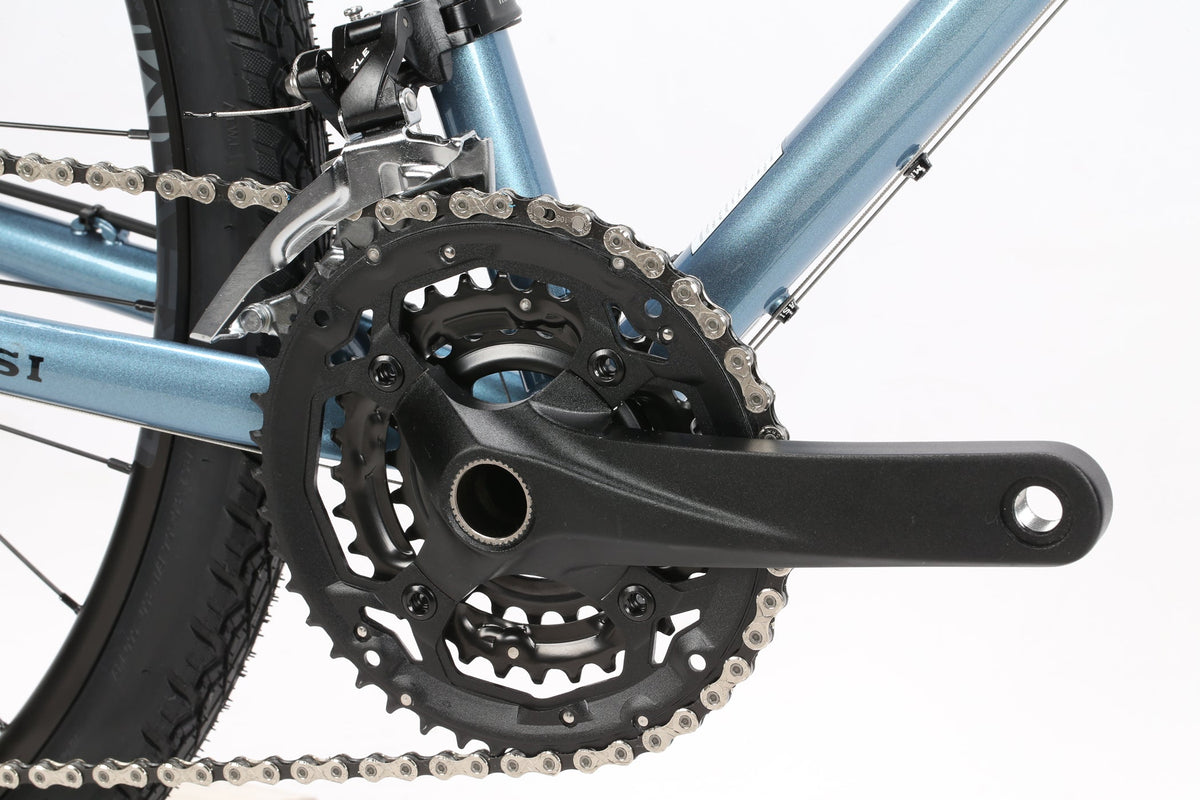

Cranks | Masi MPL-851-TT 10s | 44/32/24T chainring | XS - M : 170mm, L - XL : 175mm |
Pedals | |
Chain | KMC X10 |
Bottom Bracket | 68mm threaded BSA |
Front Derailleur | microSHIFT FD-M613-B | Band-type, 31.8mm with ϕ 28.6mm adapter |
Rear Derailleur | microSHIFT RD-M62L | Long-Cage | 10s |
Derailleur Shifter | microSHIFT Barend Shifters |
Freewheel/Cassette | microSHIFT | 10-spd | 11-36T |
WHEELS | |
Tires | Kenda Quick Drumlin | 700x45c | K-Shield+ puncture protection |
Wheels/Rims | Brev M. 700c Adventure Disc | Depth: 26mm, Width (internal): 23mm | 32H | Double wall | Tubeless compatible |
Hubs | Brev M. Disc | Sealed bearings | QR | 6-Bolt | 32H |
BRAKING SYSTEM | |

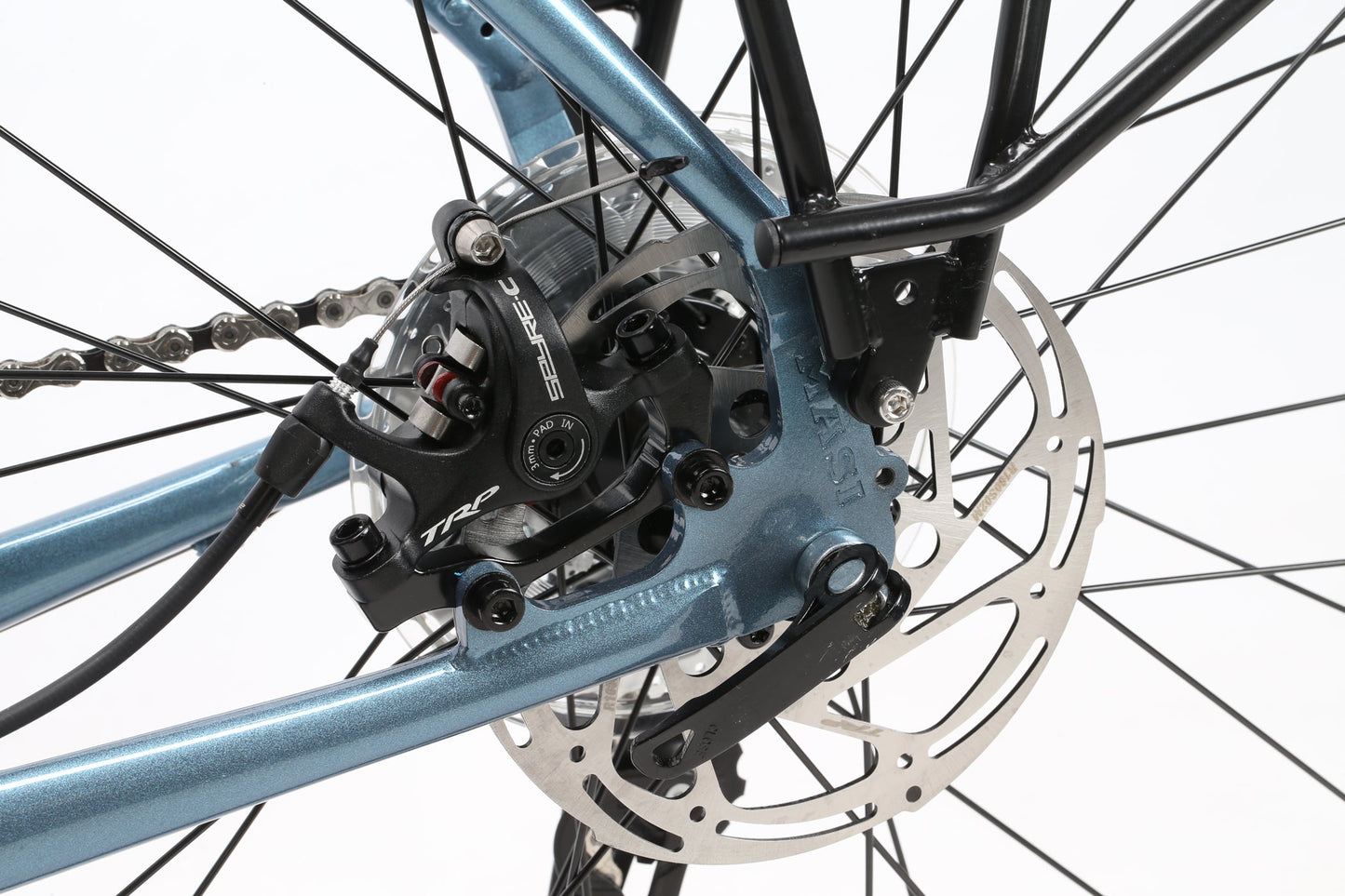

Brakes | TRP Spyre-C disc | Flat mount | Dual piston | 6-bolt rotors, 160mm |
Brake Levers | TRP RRL-A | Ultralight | Non-integrated |
OTHER COMPONENTS | |
Grips/Tape | Masi Gripper Silicone Gel |
Handlebar | Brev M. compact adventure bend | ϕ 31.8mm | 125mm drop | 78mm reach | | 12° flare | XS-M: 42cm, L-XL: 44cm |

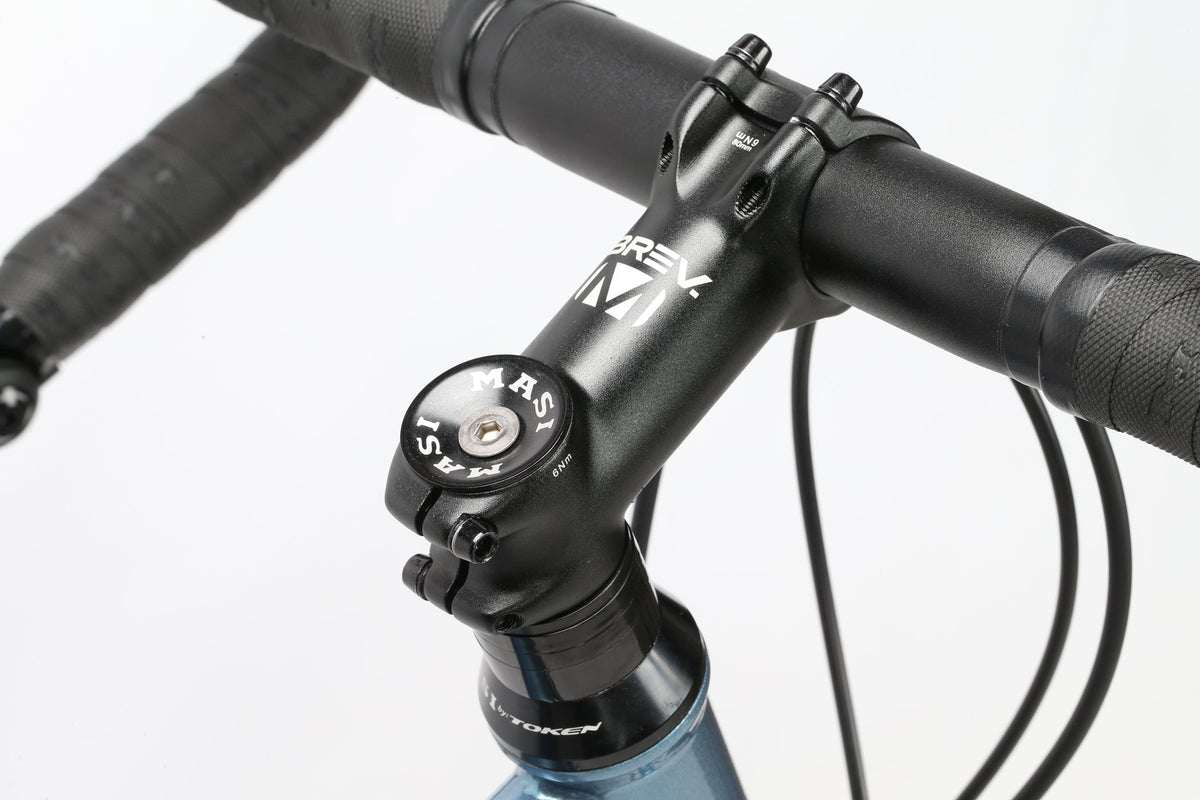

Stem | Brev M. Gravel | 3D forged alloy | -7° drop | XS: 60mm, S-M: 70mm, L: 80mm, XL: 90mm |
Headset | Masi by Token 1.5" tapered | Sealed bearing |

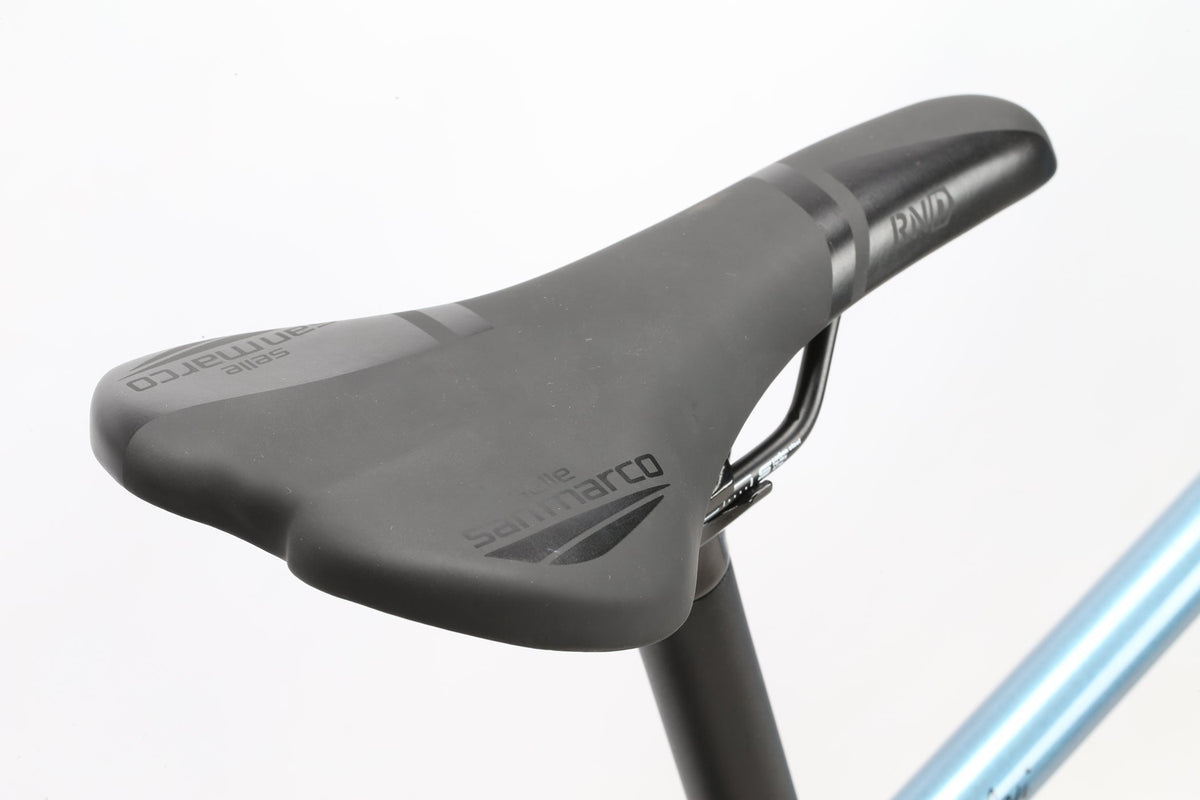

Saddle | Selle San Marcos RnD Full-fit Start UP Wide |
Seat Post | Brev M. Alloy | ϕ 27.2mm x 330mm | 5mm offset |
Seat Clamp | Integrated clamp with CP bolt |
Extras | Tubus Tara Lowrider front rack | Tubus Cargo rear rack |
GEOMETRY
SIZE | XS | S | M | L | XL |
---|---|---|---|---|---|
A. Top Tube (Effective) | 542mm (21.3") | 555mm (21.9") | 575mm (22.6") | 600mm (23.6") | 625mm (24.6") |
B. Seat Tube (C-T) | 455mm (17.9") | 475mm (18.7") | 495mm (19.5") | 525mm (20.7") | 550mm (21.7") |
C. Stack Height | 572mm (22.5") | 584mm (23") | 610mm (24") | 634mm (25") | 657mm (25.9") |
D. Reach | 386mm (15.2") | 388mm (15.3") | 394mm (15.5") | 406mm (16") | 411mm (16.2") |
E. Standover | 777mm (30.6") | 792mm (31.2") | 813mm (32") | 839mm (33") | 861mm (33.9") |
F. Head Tube Length | 125mm (4.9") | 137mm (5.4") | 160mm (6.3") | 185mm (7.3") | 210mm (8.3") |
G. Head Angle | 71° | 71° | 72° | 72° | 72° |
H. Seat Angle | 75° | 74° | 73.5° | 73° | 72° |
I. Wheel Base | 1064mm (41.9") | 1067mm (42") | 1072mm (42.2") | 1092mm (43") | 1104mm (43.5") |
J. Chainstay | 455mm (17.9") | 455mm (17.9") | 455mm (17.9") | 455mm (17.9") | 455mm (17.9") |
K. BB Drop | 70mm (2.8") | 70mm (2.8") | 70mm (2.8") | 70mm (2.8") | 70mm (2.8") |
L. Fork Offset | 50mm (2") | 50mm (2") | 50mm (2") | 50mm (2") | 50mm (2") |
M. Stem Length | 60mm | 70mm | 70mm | 80mm | 90mm |
N. Bar Width | 420mm | 420mm | 420mm | 440mm | 440mm |
O. Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm |
P. Wheel Size |
