Masi Bikes

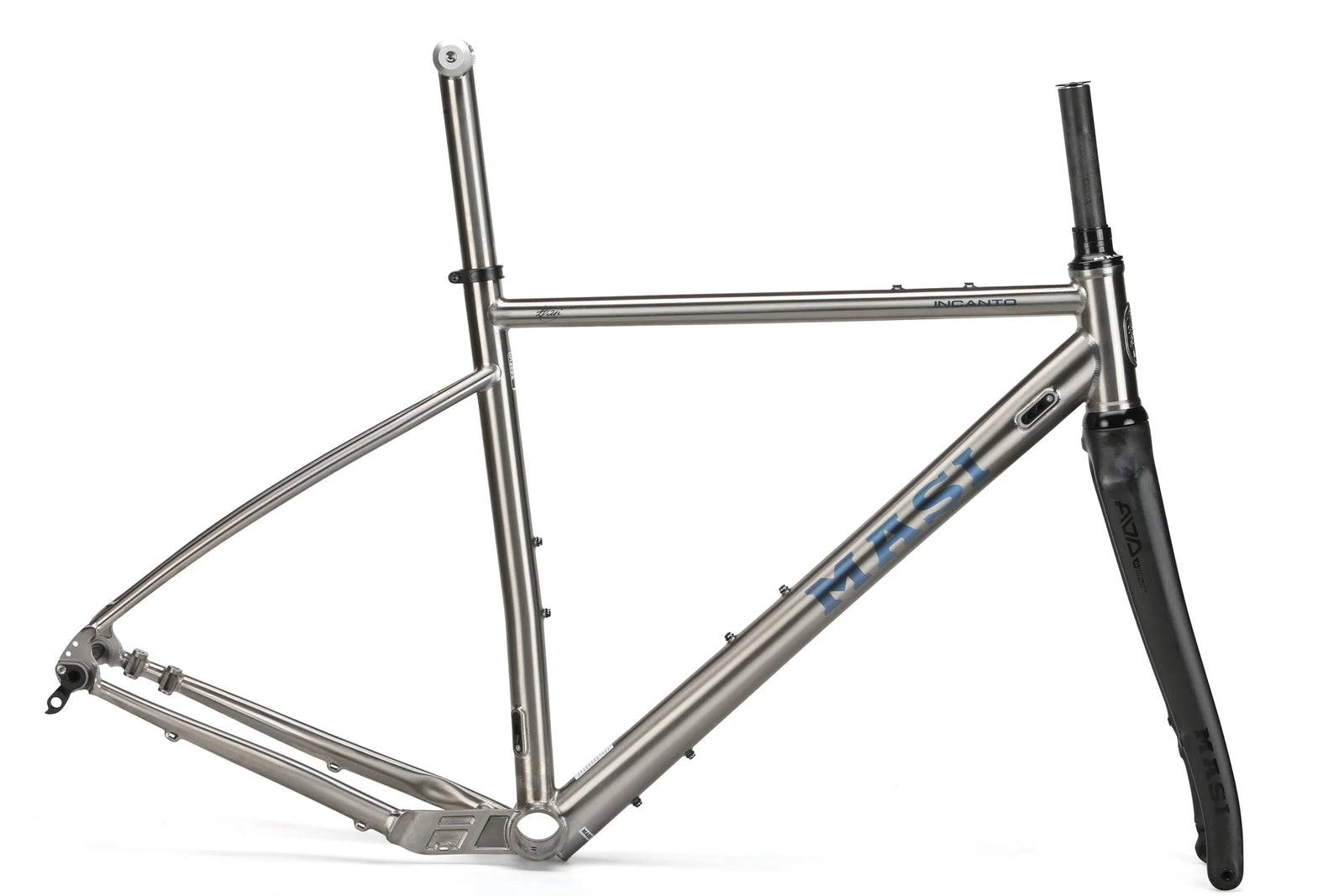

INCANTO Ti FRAMESET

INCANTO Ti FRAMESET

SKU: 50240

Carbon fiber might be known as the "magic carpet ride" material, but when you conjure up images of "exotic", "lightweight" and "bullet-proof strength", nothing compares to titanium. Built using custom-butted and formed Grade 9 3AL/2.5V tubing ("3AL" meaning 3% aluminum and "2.5V" meaning 2.5% Vanadium), our new Incanto frame exemplifies why Ti offers the best strength-to-weight value of any metal used for bicycle fabrication. If you're looking for a perfect platform to build your dream gravel bike on, look no further.

Read also a nice review on bikerumor –

Order Inquiries: twdistributor@masibikes.com

View full details

FEATURES

  • Custom butted and formed 3Al2.5V titanium frameset
  • Full carbon fork with 12mm thru-axle and tapered steerer tube
  • Semi-internal cable routing with custom configuration for 1X, 2X and dropper post routing

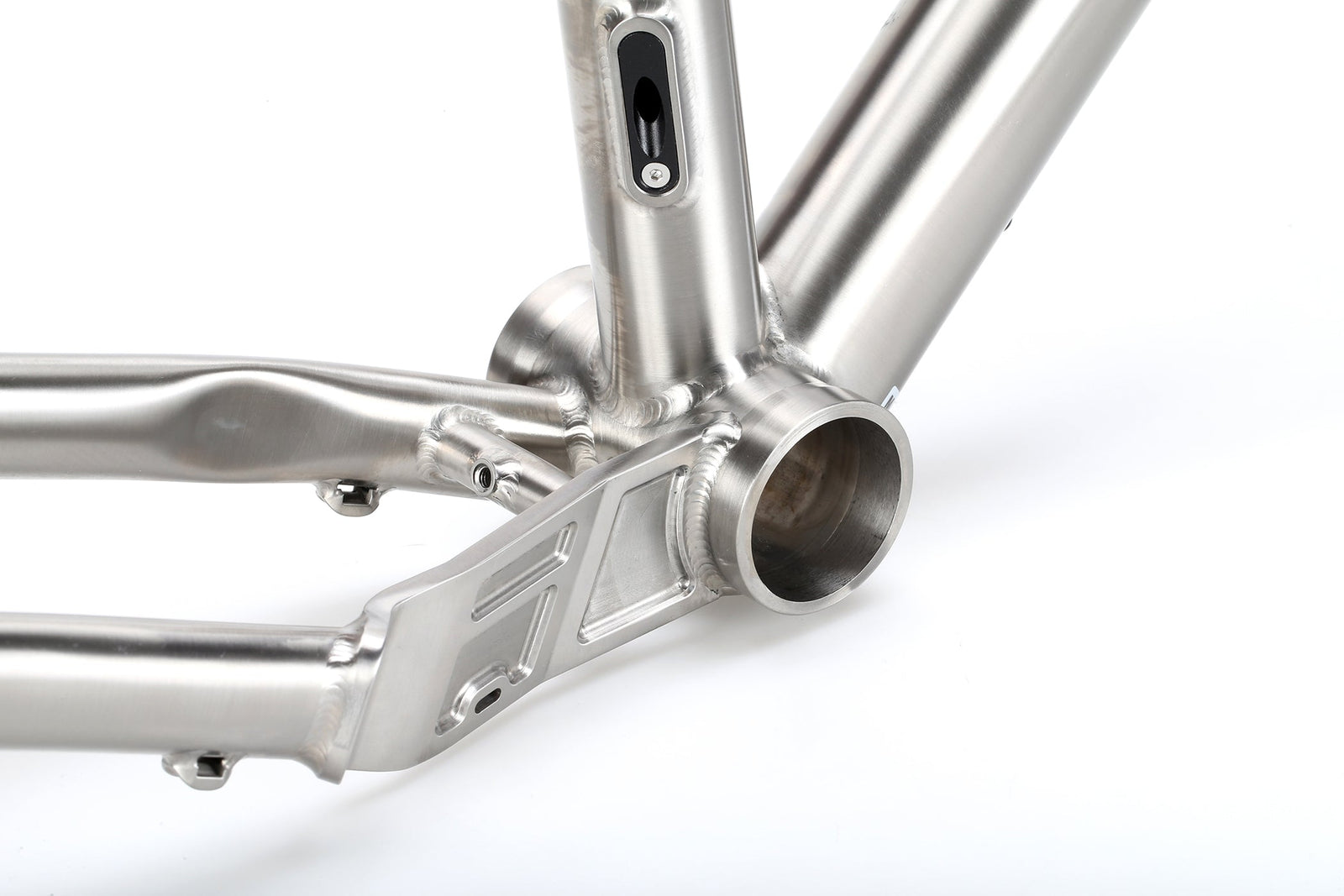

  • Dropped Chainstay and BB86 bottom bracket for massive tire clearance

SPECIFICATIONS

FRAMESET
FrameIncanto Ti gravel | Tig-welded butted 3al2.5v titanium | ϕ41mm semi-integrated head tube | BB86 bottom bracket | Flat-mount disc brake | Replaceable derailleur hanger | Internal dropper post compatible | 12 x 142mm thru-axle

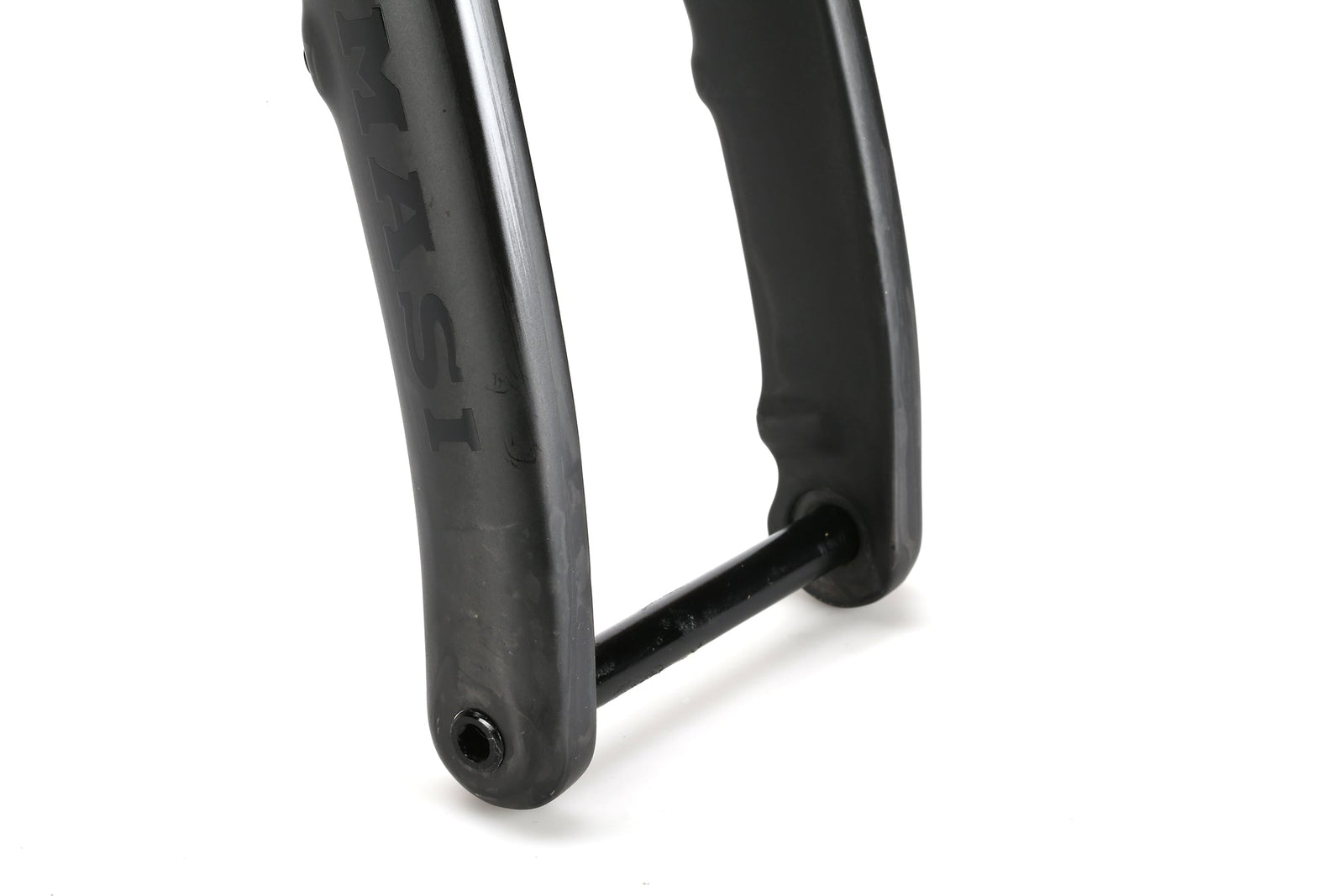

ForkBrunello gravel | MC-9 carbon construction | Carbon 1.125 - 1.5" tapered steer tube | Flat-mount disc | Fender mounts | 12 x 100mm thru-axle
Colors
DRIVETRAIN
Cranks
Pedals
Rear Derailleur
Derailleur Shifter
Freewheel/Cassette
WHEELS
Tires
Wheels/Rims
BRAKING SYSTEM
Brakes
OTHER COMPONENTS
Grips/Tape
Handlebar
Stem
HeadsetMASI by Token, No.41 1.125"-1.5" tapered, semi-integrated
Saddle
Seat PostBrev M. Ti | ϕ 31.6mm x 350mm | 47 - 51cm: 0mm offset, 54 - 60cm: 10mm offset

GEOMETRY

SIZE475154565861
A. Top Tube (Effective)541mm (21.3")539mm (21.2")564mm (22.2")567mm (22.3")572mm (22.5")589mm (23.2")
B. Seat Tube (C-T)440mm (17.3")470mm (18.5")500mm (19.7")520mm (20.5")540mm (21.3")570mm (22.4")
C. Stack Height551mm (21.6")560mm (22.1")580mm (22.8")594mm (23.4")610mm (24.1")629mm (24.8")
D. Reach387mm (15.2")384mm (15.1")399mm (15.7")394mm (15.5")394mm (15.5")397mm (15.6")
E. Standover733mm762mm788mm807mm826mm851mm
F. Head Tube Length97mm (3.8")107mm (4.6")126mm (5")141mm (5.6")158mm (6.2")177.5mm (7")
G. Head Angle71.8°71.8°72.2°72.2°72.2°72.2°
H. Seat Angle74.0°74.0°73°73°73°72°
I. Wheel Base1010mm (39.8")1010mm (39.8")1026.5mm (40.4")1026.5mm (40.4")1031.5mm (40.6")1042mm (41.3")
J. Chainstay425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")425mm (16.7")
K. BB Drop74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")74mm (2.9")
L. Fork Offset45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")45mm (1.8")
M. Stem Length90mm90mm100mm100mm110mm110mm
N. Bar Width380mm420mm420mm440mm440mm440mm
O. Crank Length
P. Wheel Size700700700700700700
