TITANIO FRAMESET
TITANIO FRAMESET
SKU: SKU:50230
It's fast, it's light, and it's virtually indestructible... if there were ever a description for what you wanted a race bike to be, wouldn't this be it? Add to the fact that our Grade 9 3AL/2.5V titanium Titanio frameset has clearance for up to a 32c tire and you have a bike that's not only built for speed, but depending on what tires you choose to use, could also be one of the most comfortable bikes you've ever ridden. Precious metal meets performance; welcome to our all new Titanio.
Order Inquiries: twdistributor@masibikes.com
View full detailsFEATURES

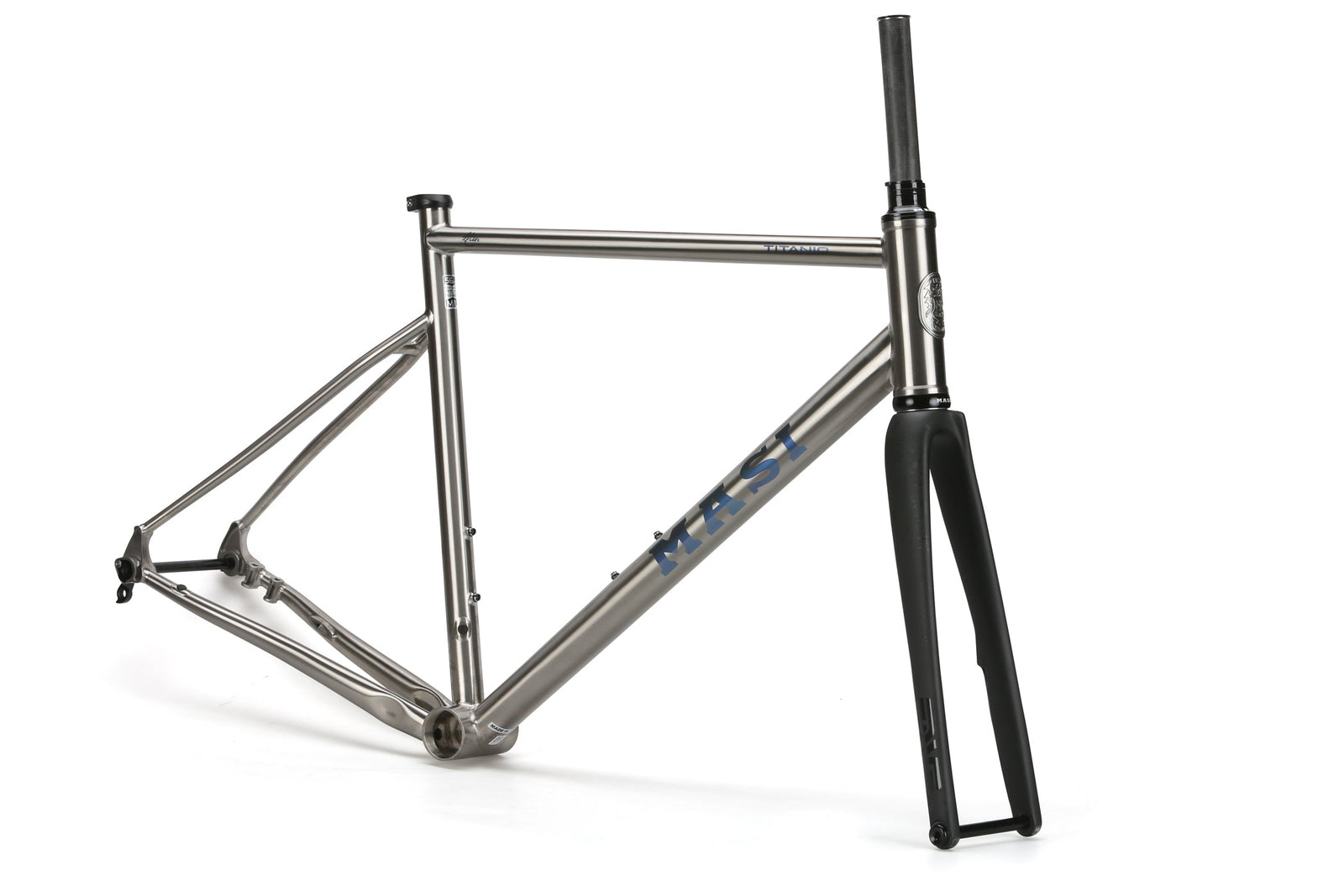

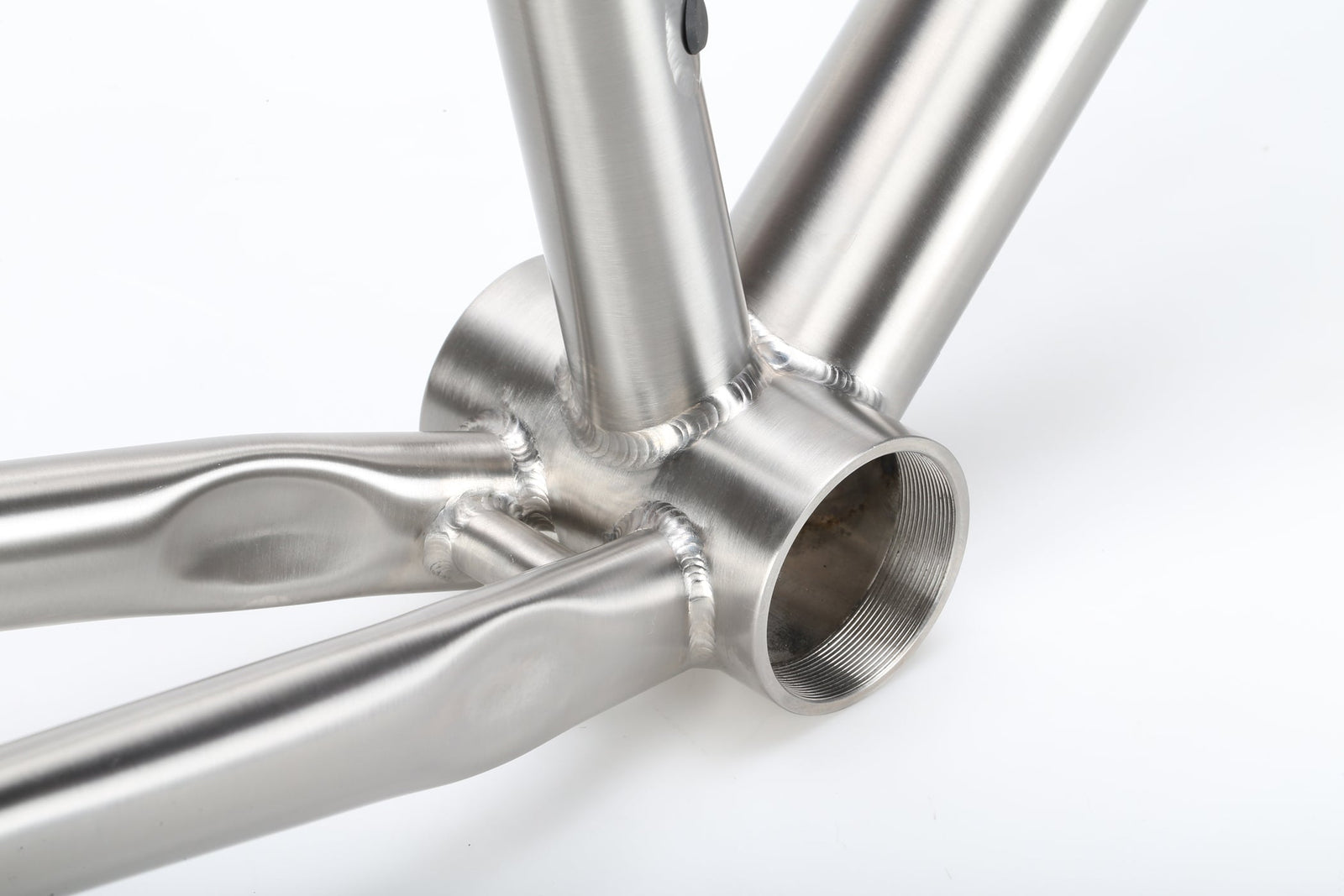

- Custom-butted and formed Grade 9 3AL/2.5V titanium frame with semi-integrated, tapered head tube

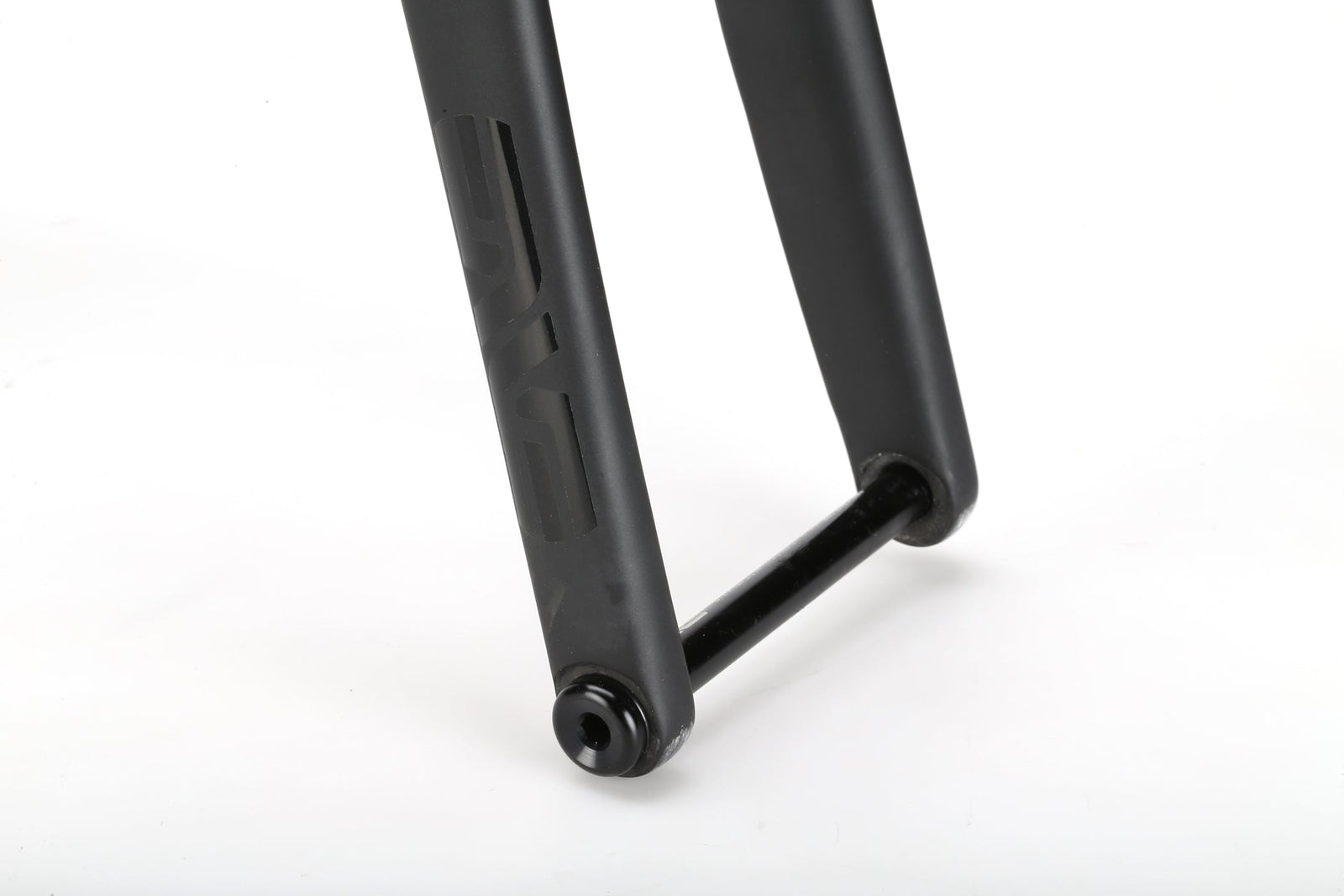

- ENVE carbon fork; 1 1/8" - 1.5" tapered 300mm steer with flat mount disc mounts, 12x100mm thru axle

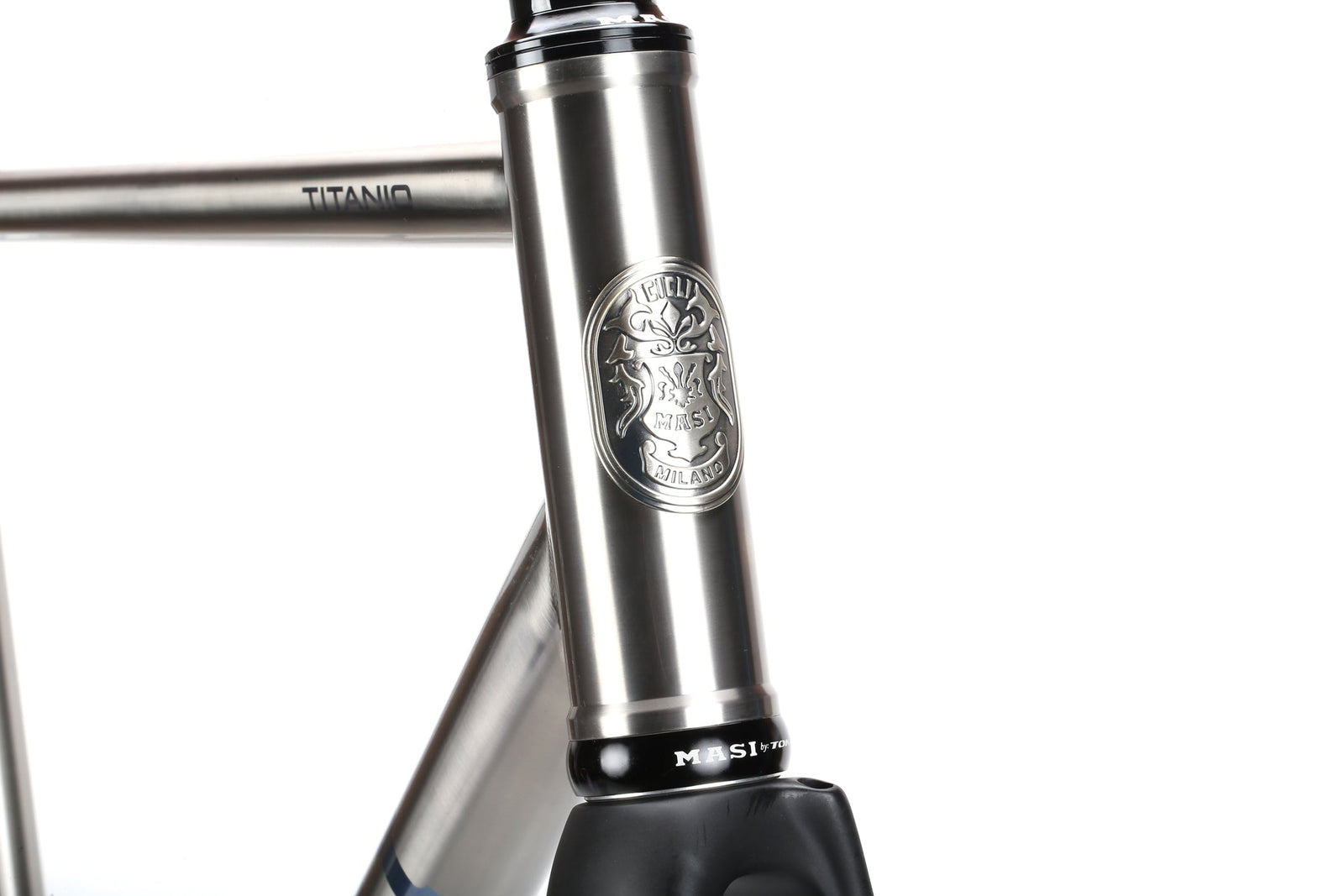

- 1-1/8" - 1-1/4 semi-integrated internal headset

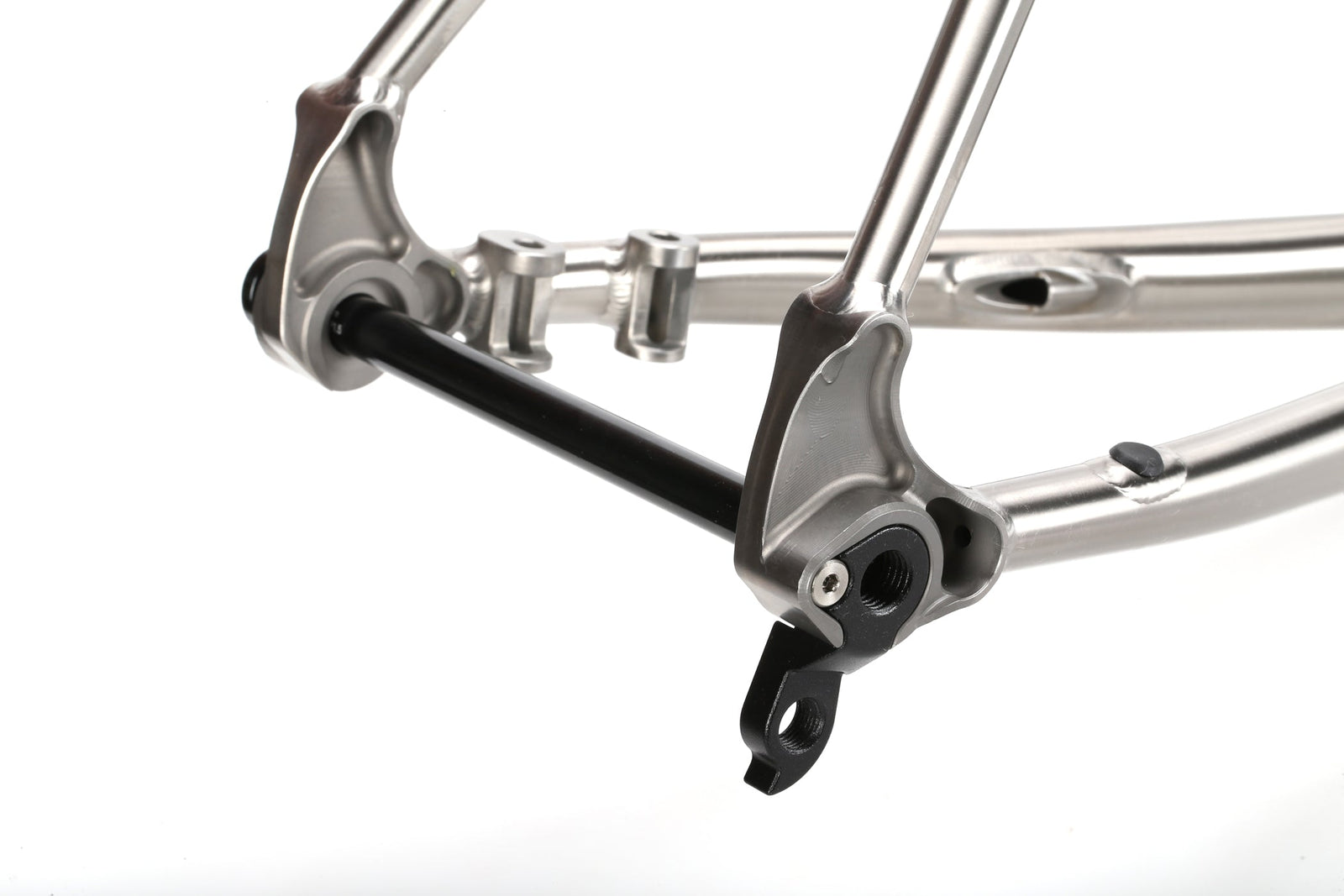

- 12mm thru axle compatible
- Flat mount disc compatible

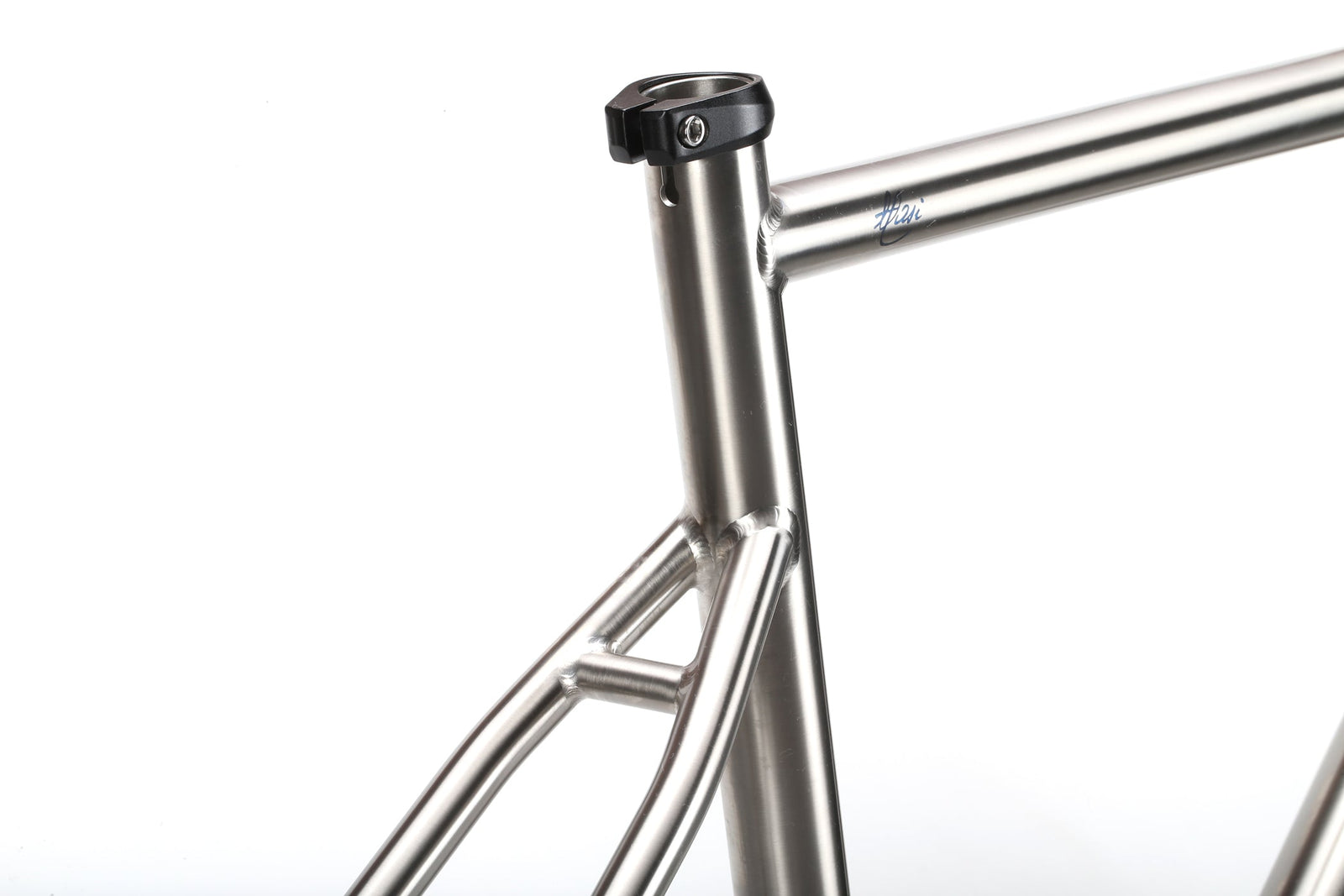

- 27.2 seat post compatible
- Includes derailleur hanger and all small hardware
- Weight: 4.6 lbs frame, 6 lbs frame and fork
Collapsible content
SPECIFICATIONS
GEOMETRY
SIZE | 47 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
A. Top Tube (Effective) | 520mm | 530mm | 548.5mm | 563.5mm | 583.2mm | 602.5mm |
B. Seat Tube (C-T) | 425mm | 465mm | 505mm | 525mm | 555mm | 595mm |
C. Stack Height | 513.6mm | 533.3mm | 552mm | 572.2mm | 590.7mm | 614.2mm |
D. Reach | 376.2mm | 377mm | 385mm | 394mm | 405mm | 414mm |
E. Standover | 712mm (28") | 744mm (29.3") | 764mm (30.1") | 797mm (31.4") | 817mm (32.2") | 842mm (33.1") |
F. Head Tube Length | 100mm | 116mm | 137mm | 155.5mm | 175.5mm | 200mm |
G. Head Angle | 72.8° | 72.8° | 73° | 73.5° | 73.3° | 73.3° |
H. Seat Angle | 74.5° | 74° | 73.5° | 73.5° | 73.25° | 73° |
I. Wheel Base | 962.8mm | 968.3mm | 981.4mm | 989.6mm | 1007.9mm | 1026mm |
J. Chainstay | 408mm | 408mm | 408mm | 408mm | 408mm | 410mm |
K. BB Drop | 72mm | 72mm | 70mm | 70mm | 70mm | 70mm |
L. Fork Offset | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
M. Stem Length | ||||||
N. Bar Width | ||||||
O. Crank Length | ||||||
P. Wheel Size |
