Masi Bikes

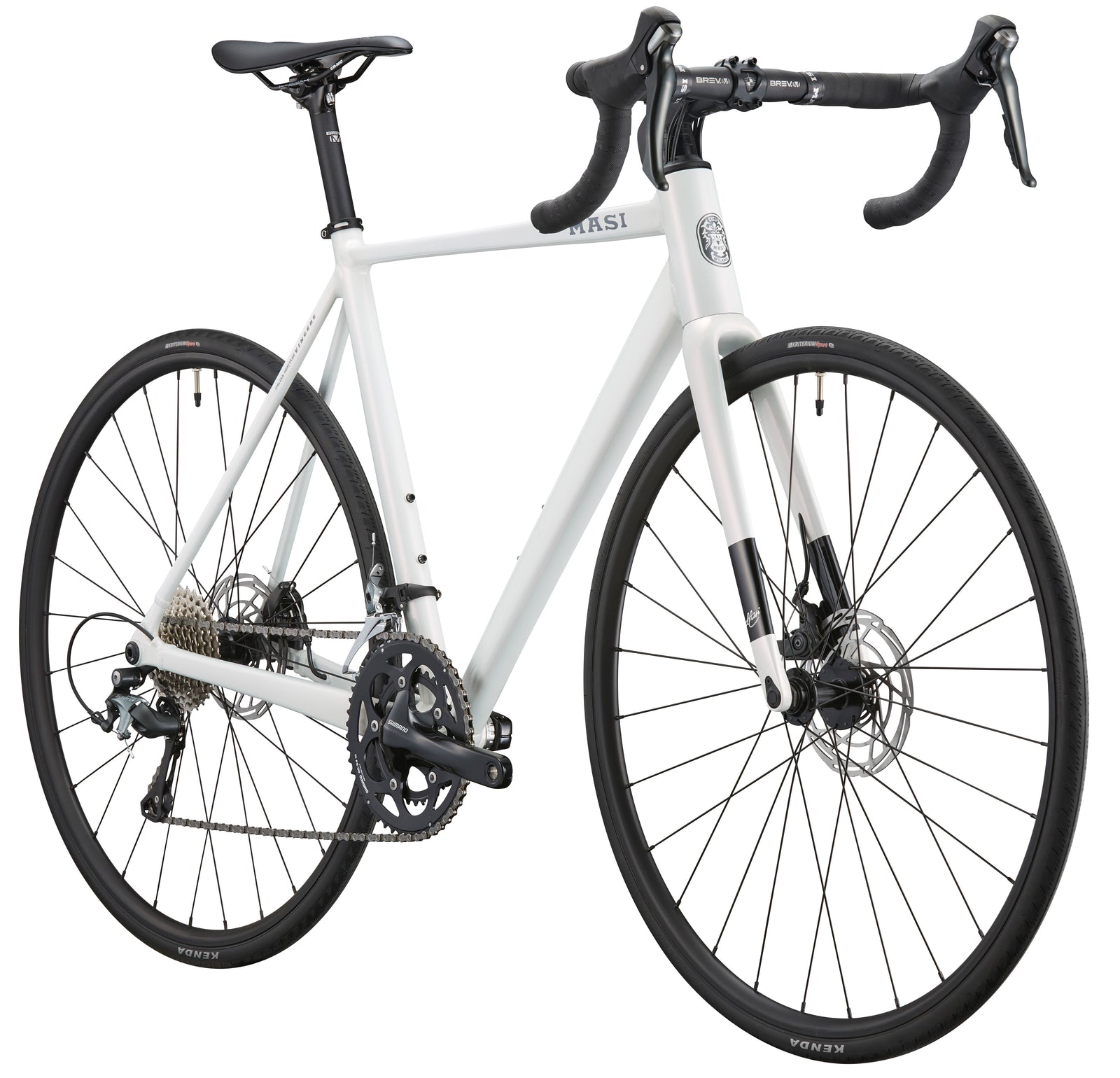

VINCERE 3

VINCERE 3

SKU:

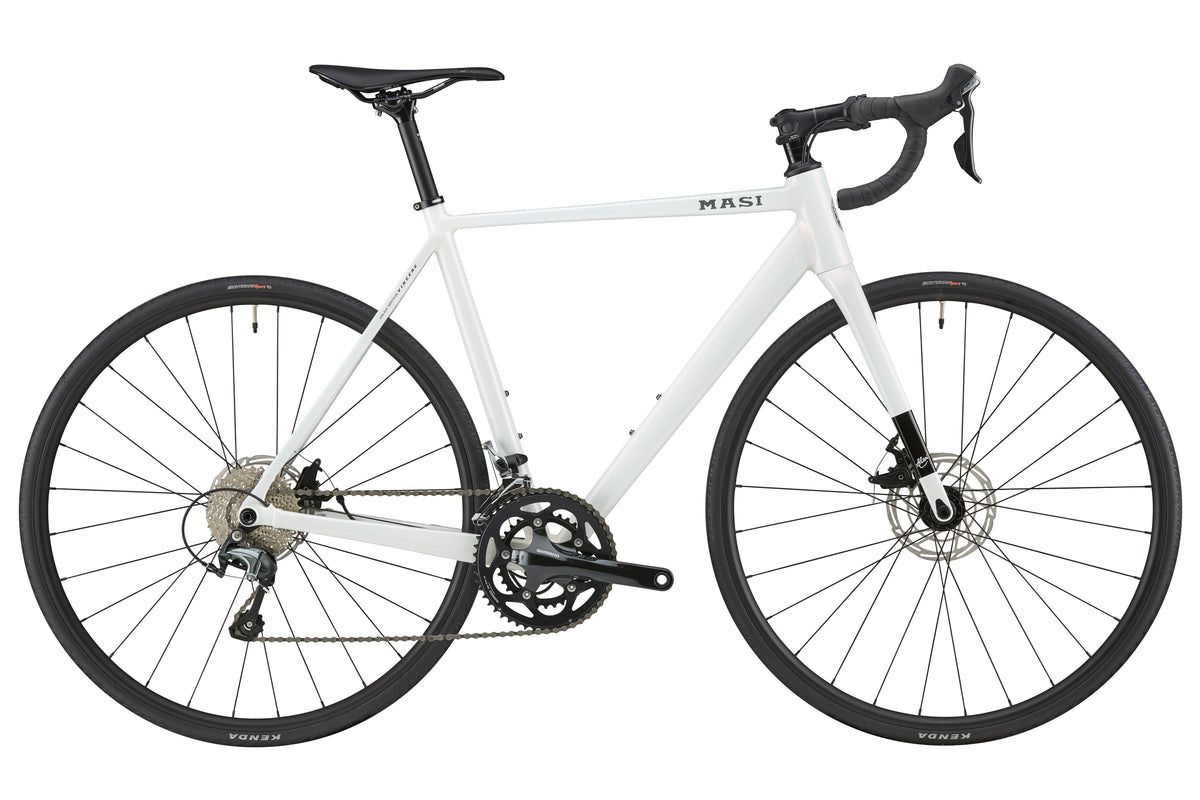

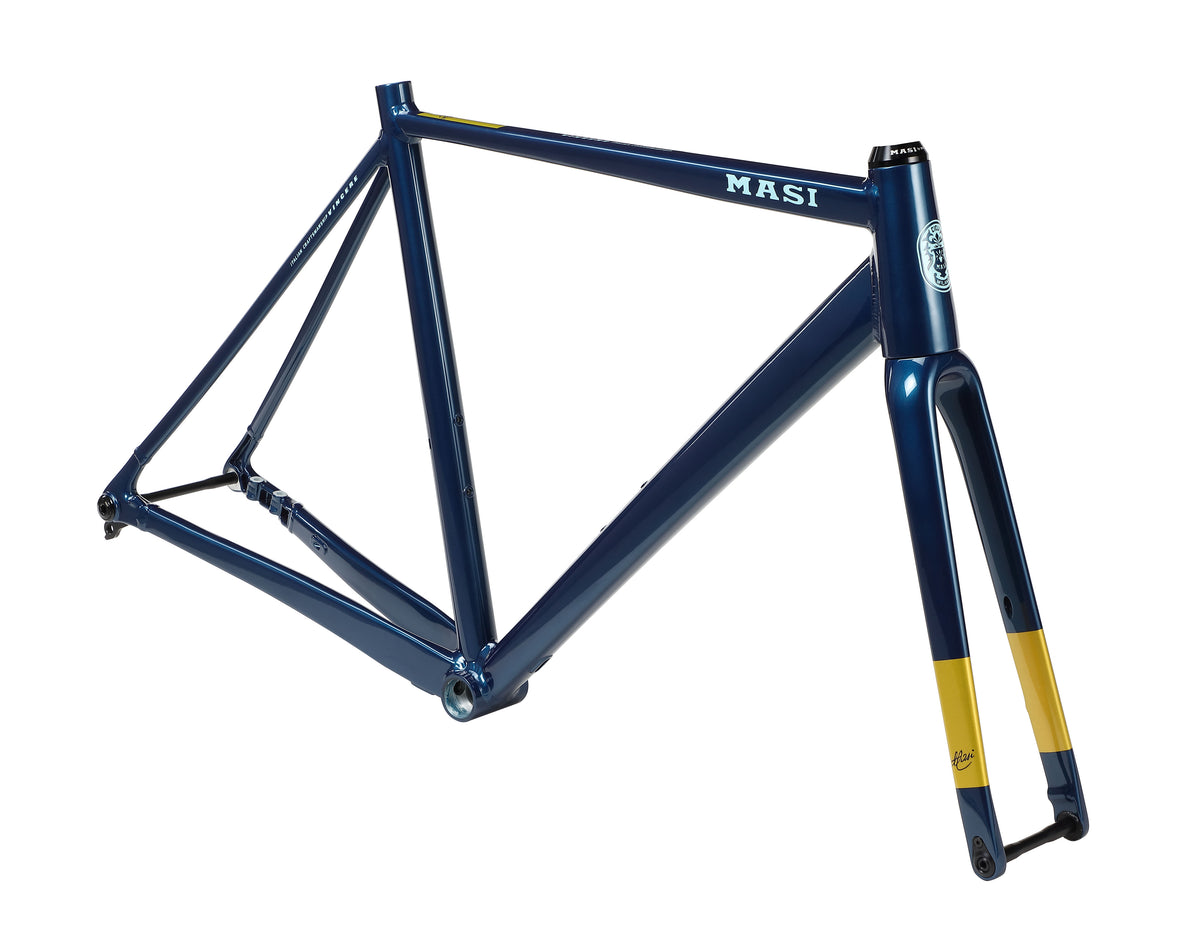

The Masi Vincere is a highly optimized alloy frame designed for performance and durability. Equipped with the Shimano Tiagra 10-speed group set, it is a popular choice for road cyclists looking for a balance between performance and budget.

Accompanying the frame is a carbon fork that improves the bike's agility and response. Internal cable routing system gives the bike a sleek appearance.

The bike's geometry strikes a balance between efficiency and relaxation, making it suitable for both racing and casual rides.

––– Please note:
Product images are for colour reference only and specifications may vary. Specifications are subject to change without notice depending on component availability and other factors.

Color
Size

Order Inquiries: twdistributor@masibikes.com

View full details

FEATURES

  • The Alloy Frame provides a balance of strength and weight, ensuring durability and performance while reducing overall bike weight.
  • Our Carbon Fork enhances ride comfort and handling by absorbing road vibrations and reducing weight for improved agility.
  • Internal Cable Routing creates a sleek, aerodynamic profile by concealing cables within the frame.
  • The Rider-Focused Geometry is designed to offer a comfortable and efficient riding position.

SPECIFICATIONS

FRAMESET

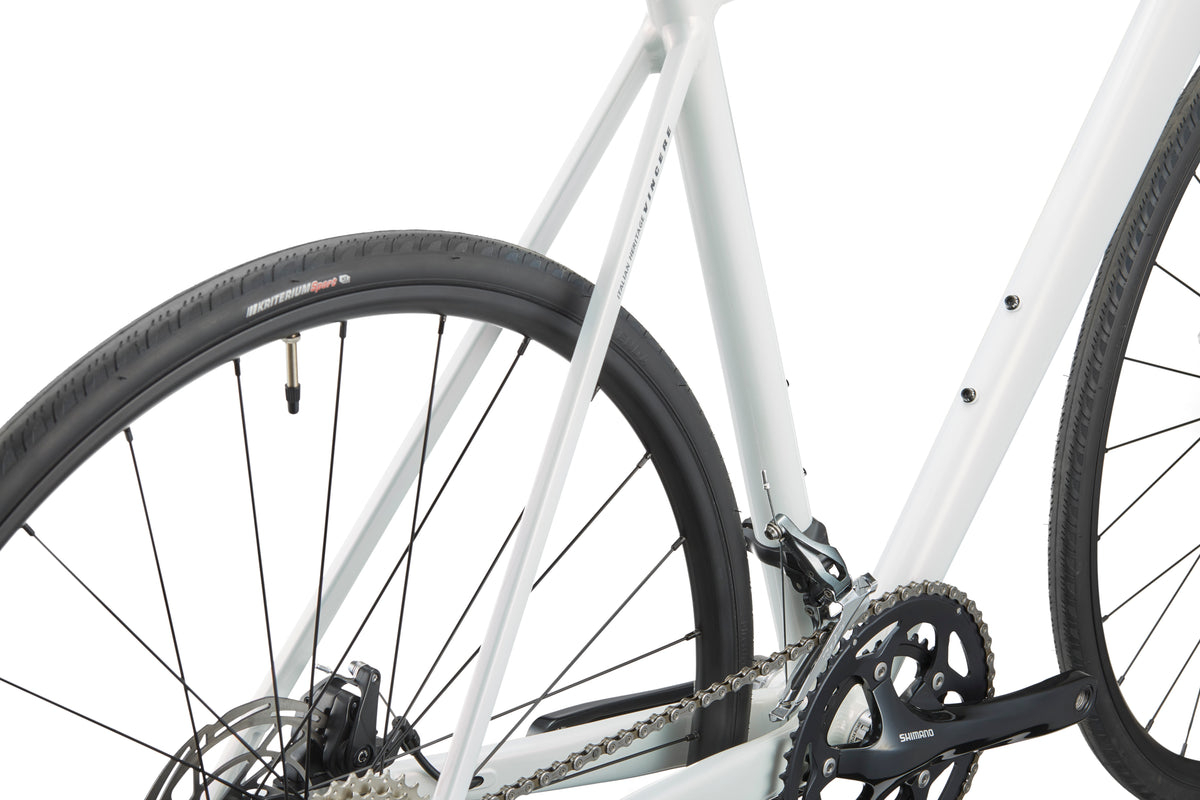

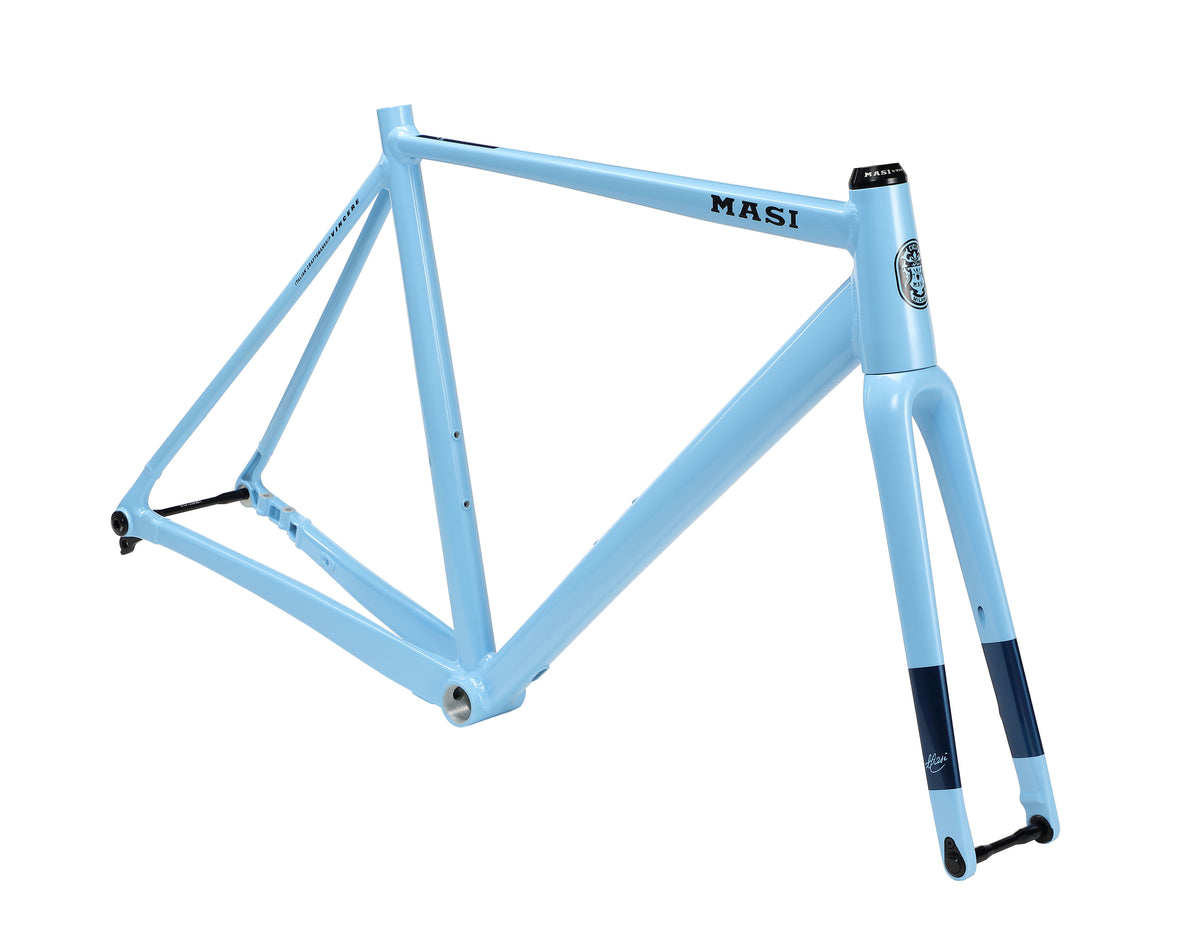

FrameMasi Alloy, ​Threaded BSA bottom bracket, Flat-mount disc brake, 12 x 142mm thru-axle, Internal cable routing
ForkMasi Carbon, 1 1/8" - 1.5" tapered, 12x100mm thru-axle, Flat-mount disc
ColorsAsh Blue, Sea Blue, Sky Blue, Seashell White
DRIVETRAIN

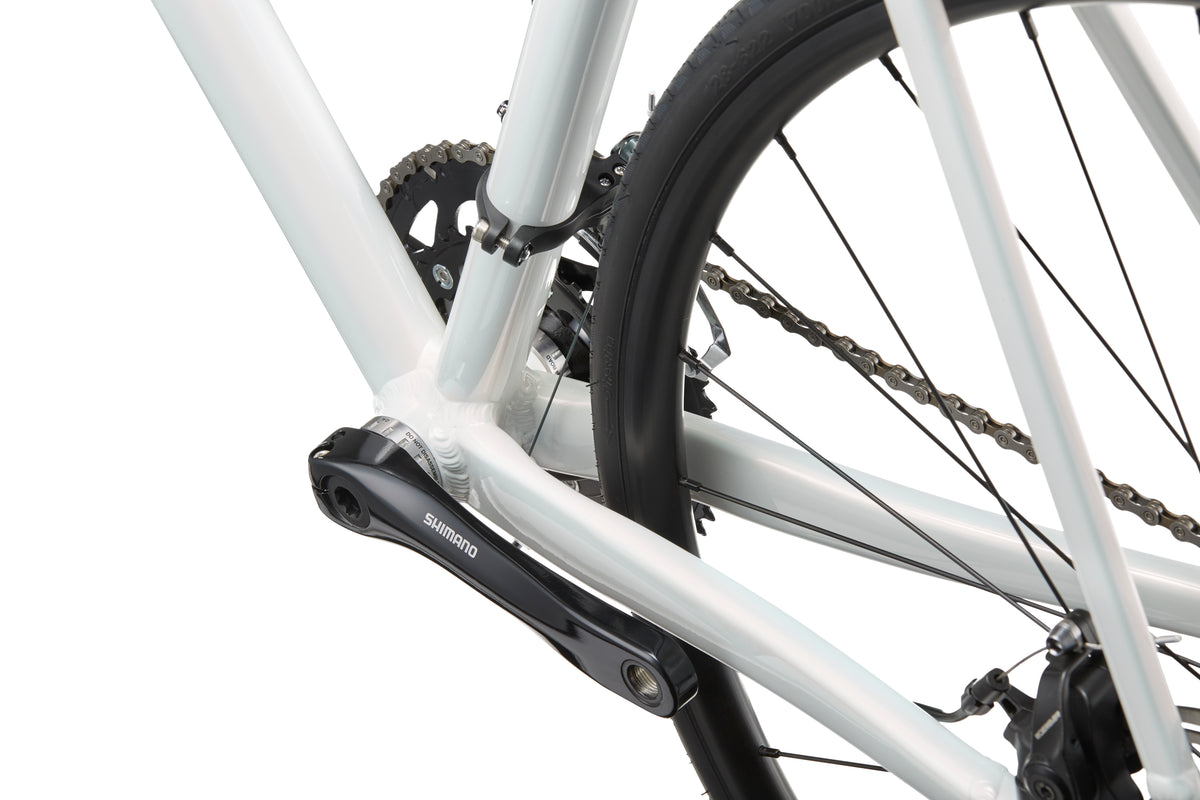

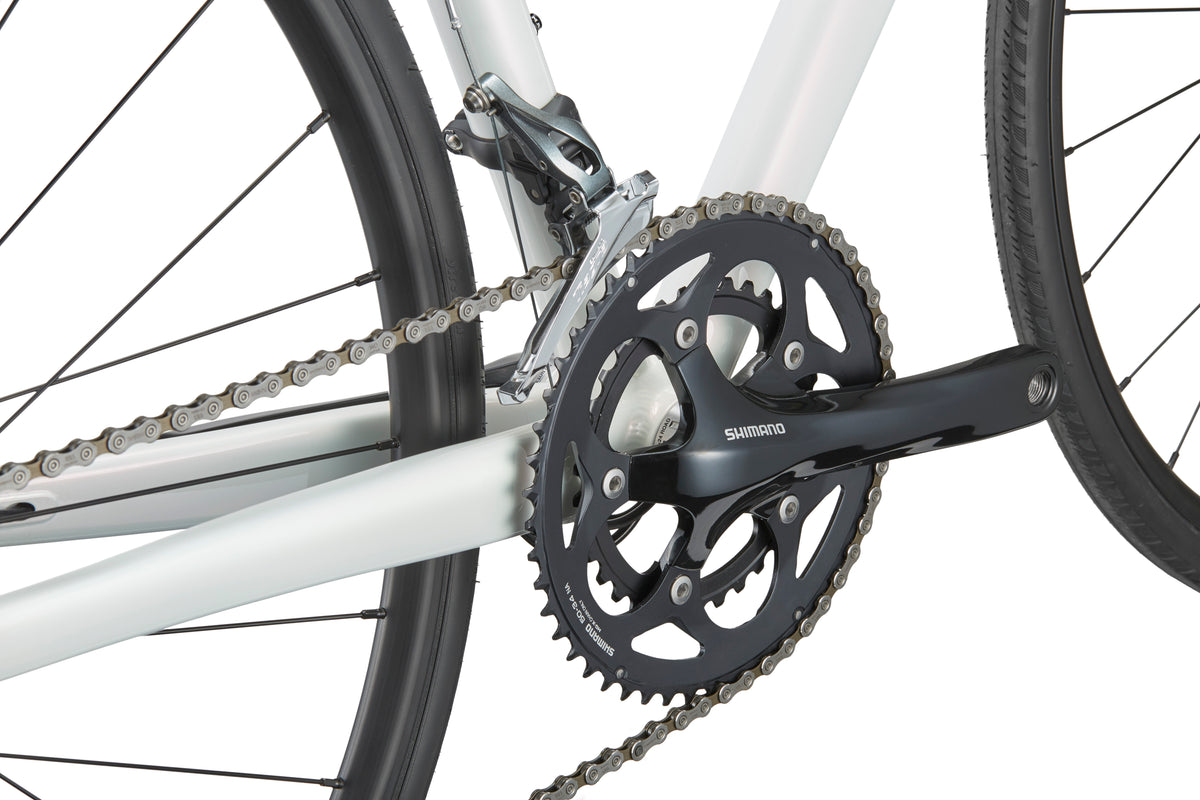

CranksShimano FC-RS400, 50-34T​
Pedals
ChainShimano CN-HG54​
Bottom BracketShimano Threaded BSA
Front DerailleurShimano FD-4700​

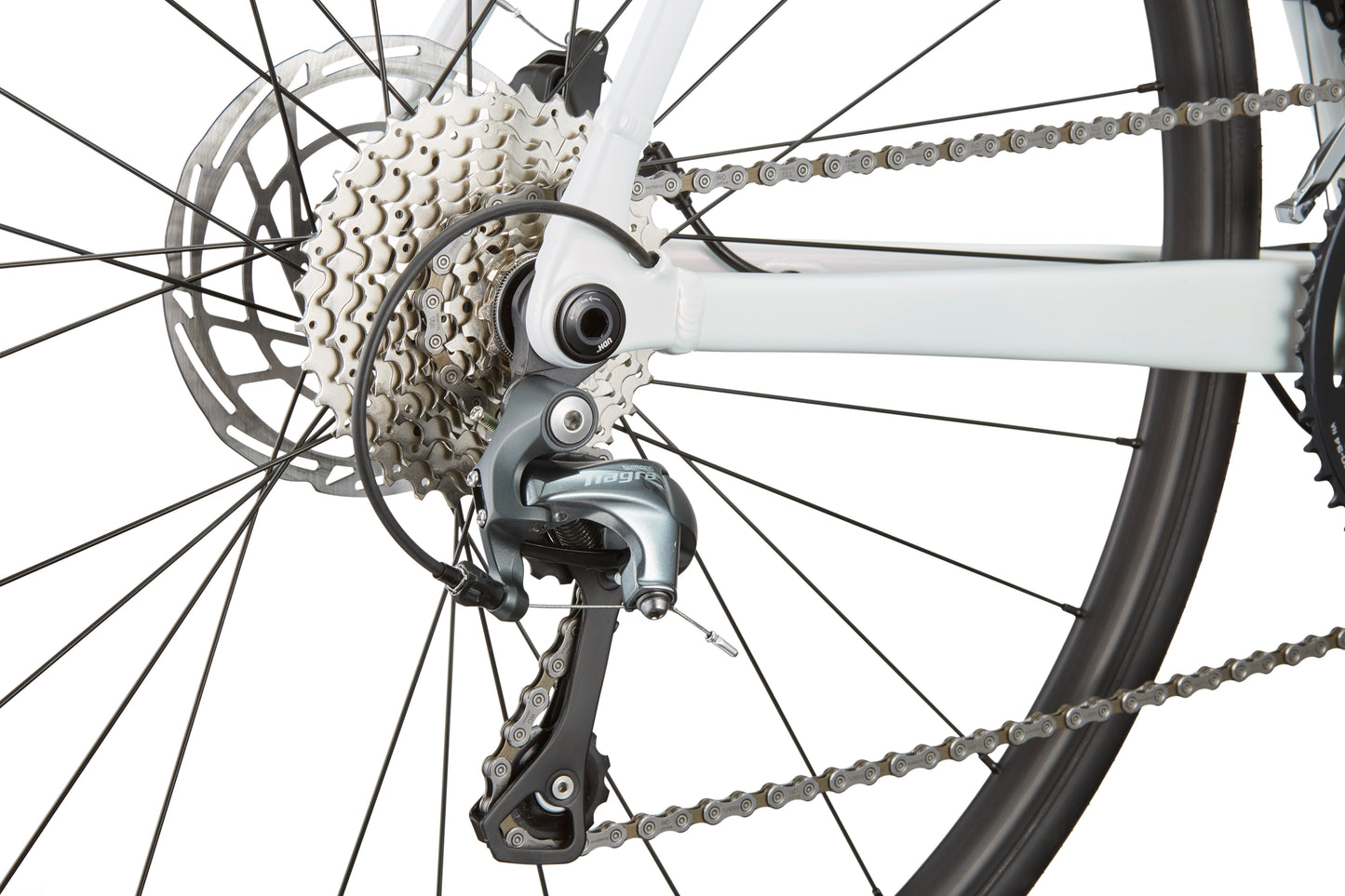

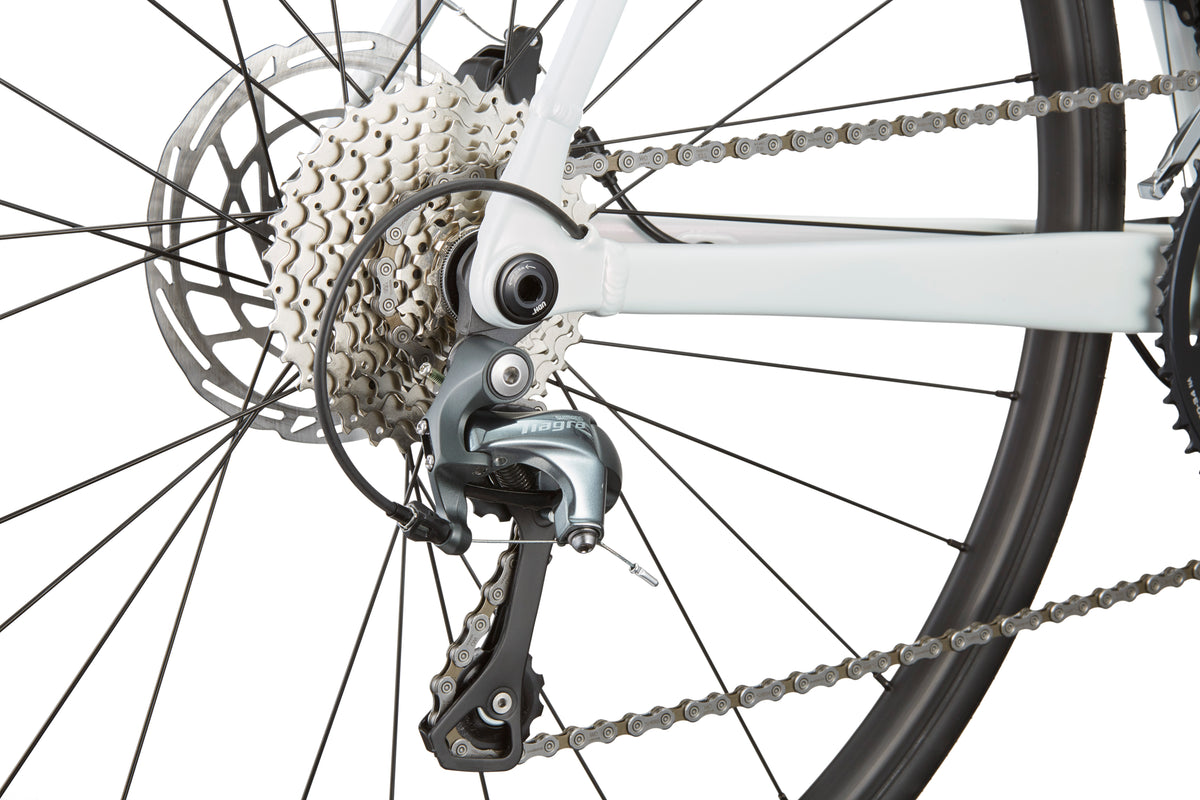

Rear DerailleurShimano RD-4700​
Derailleur ShifterShimano ST-4700​
Freewheel/CassetteShimano CS-HG50010, 11-34T​
WHEELS
TiresKenda Kriterium, K1018, 700x28c​
Wheels/RimsBrev M. Alloy Rim, Double wall
HubsKT 12 x 100mm, Thru Axle, 6 Bolt Disc, 28H​ 12 x 142mm, Thru Axle, 6 Bolt Disc, 28H​
BRAKING SYSTEM

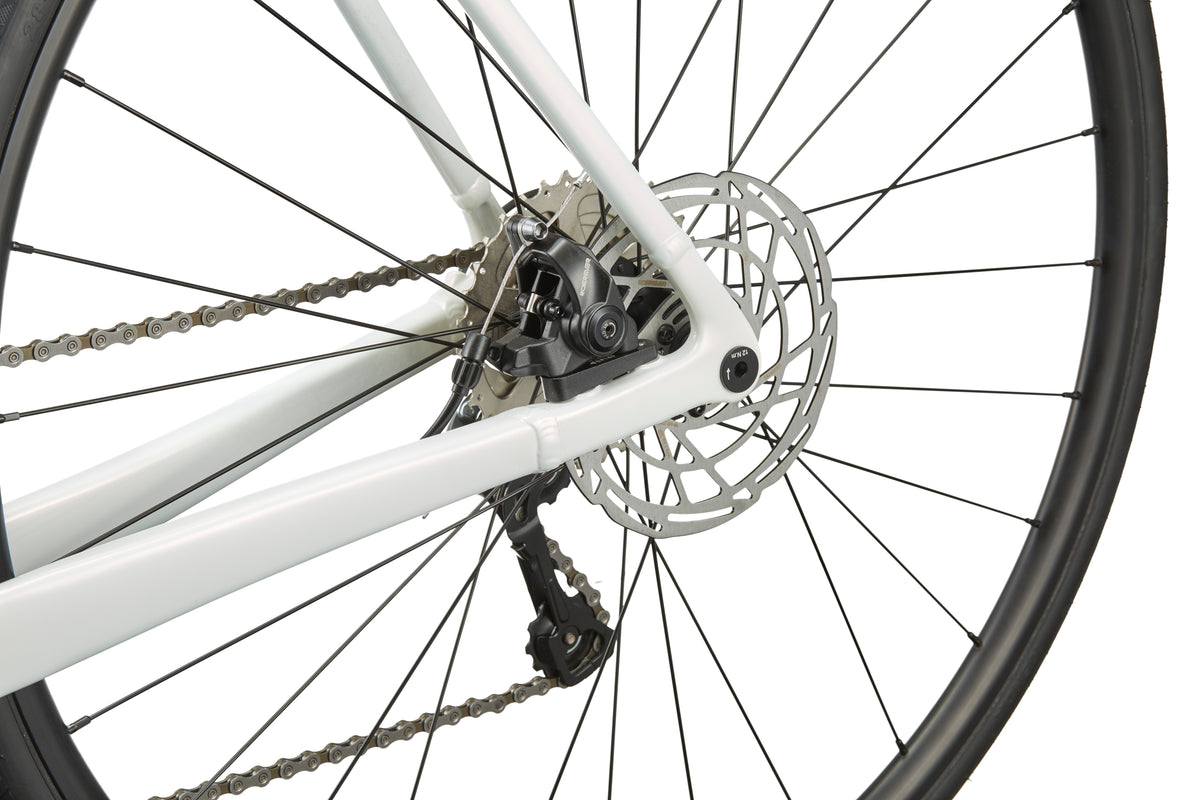

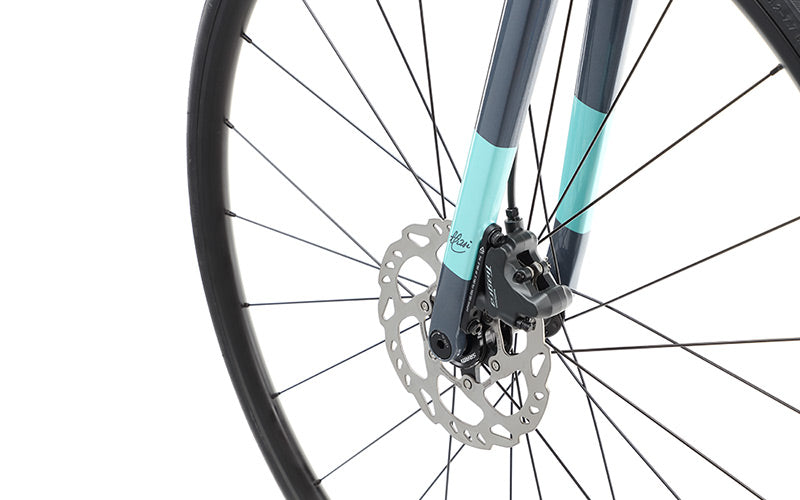

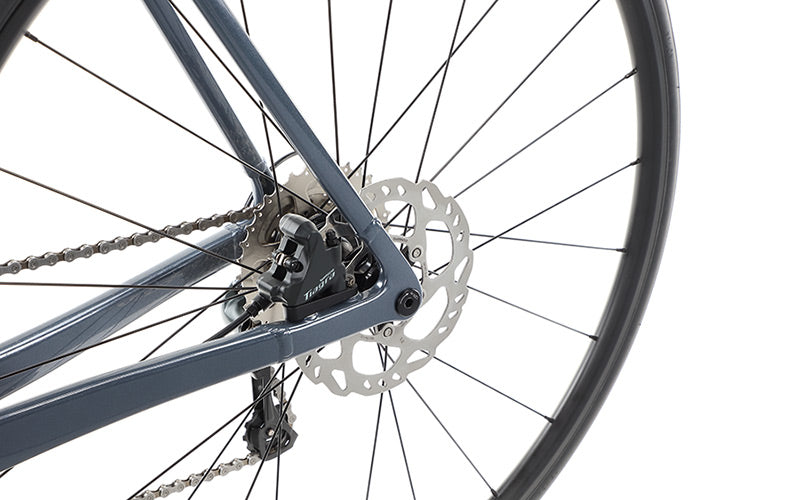

BrakesJagwire MCX2-FM / 160mm​
OTHER COMPONENTS
Grips/Tape

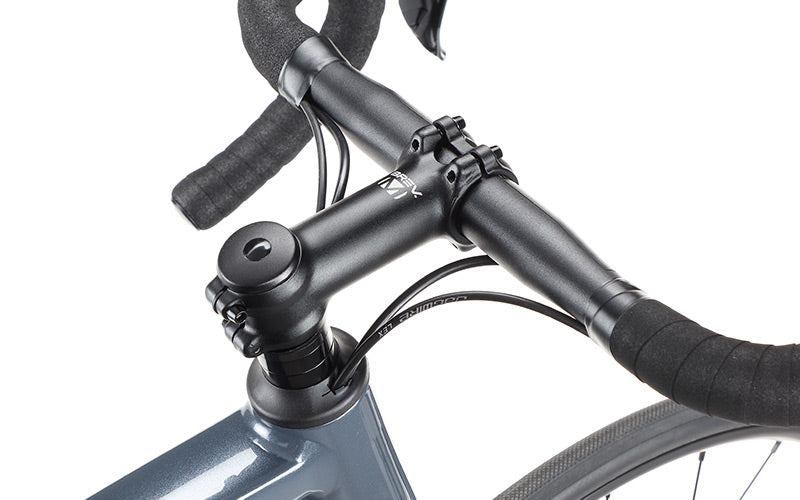

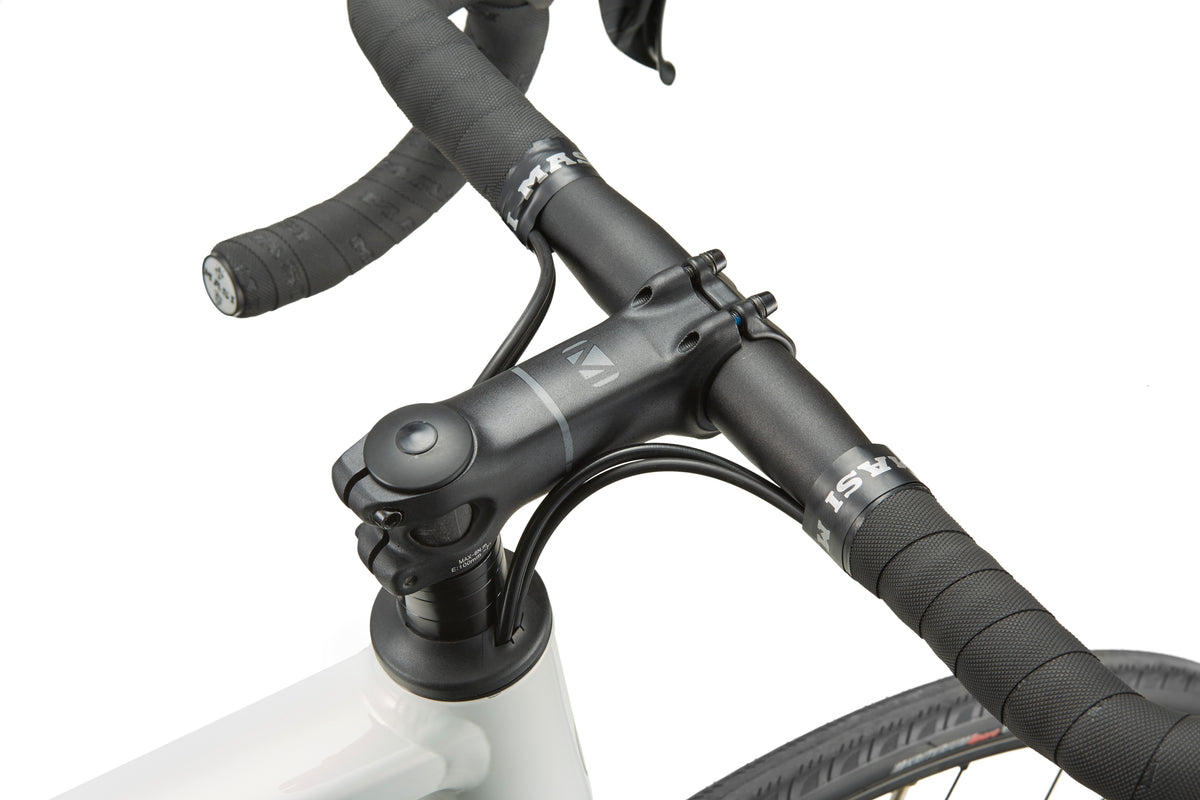

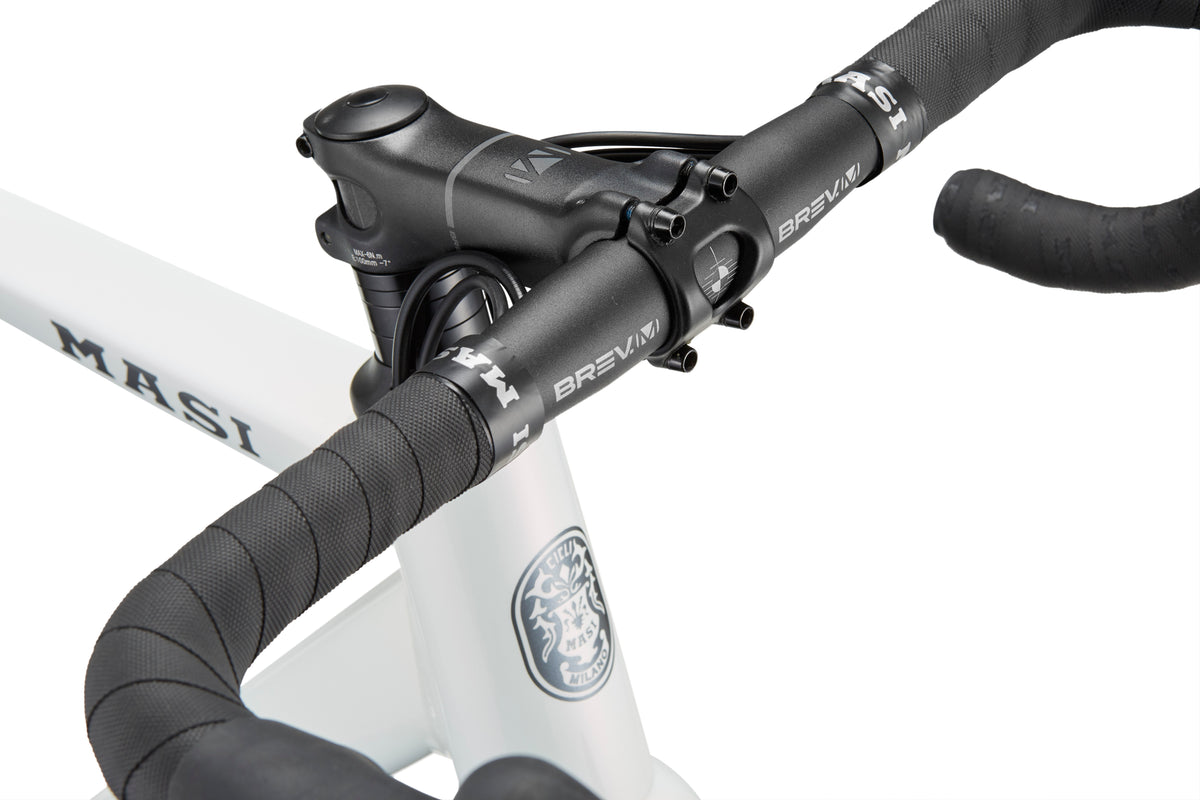

HandlebarBrev M., Ø31.8mm / Black ​
StemMasi 31.8mm / -7° / Black​
Headset

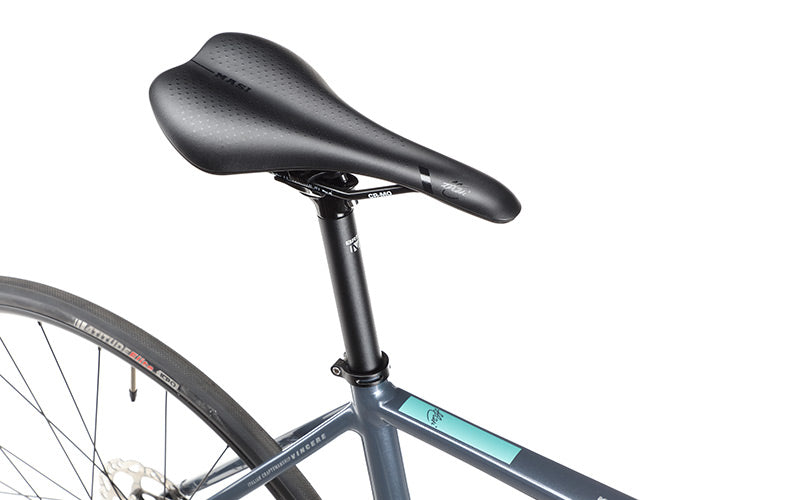

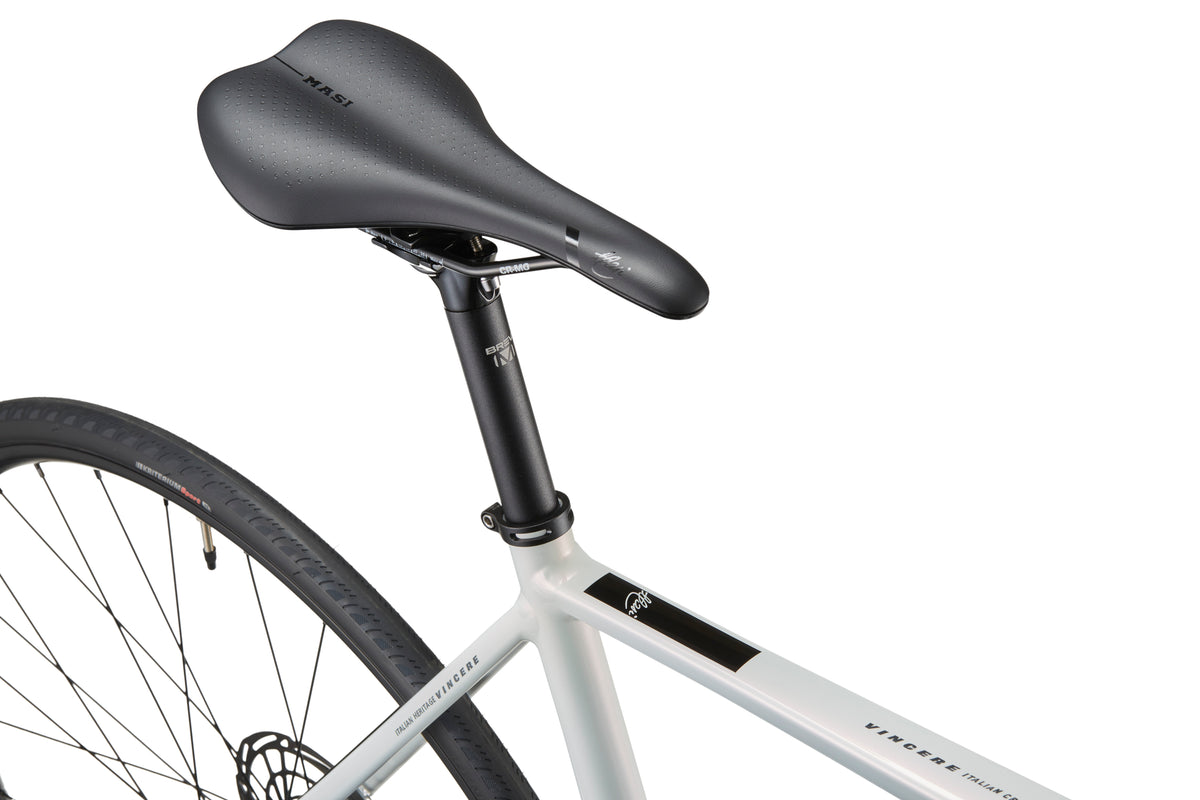

SaddleMasi 280 x 139mm, Ti-Alloy Rail​
Seat PostMasi Ø27.2mm / 330mm / Black​

GEOMETRY

SIZE4851545658
A. Top Tube (Effective)513mm530mm546mm563mm579mm
B. Seat Tube (C-T)480mm510mm540mm560mm580mm
C. Stack Height500mm525mm550mm575mm600mm
D. Reach360mm369mm378mm387mm396mm
E. Standover701mm730mm759mm780mm799mm
F. Head Tube Length103mm123mm143mm168mm194mm
G. Head Angle70.5°72.2°73.1°73.5°73.5°
H. Seat Angle73°73°73°73°73°
I. Wheel Base984mm986mm984mm997mm1012mm
J. Chainstay420mm420mm420mm420mm420mm
K. BB Drop68mm68mm68mm68mm68mm
L. Fork Offset53mm53mm43mm43mm43mm
M. Stem Length
N. Bar Width
O. Crank Length
P. Wheel Size700700700700700
